ROCKWELL AUTOMATION 140G-K6K4-D40
ROCKWELL AUTOMATIONNot available

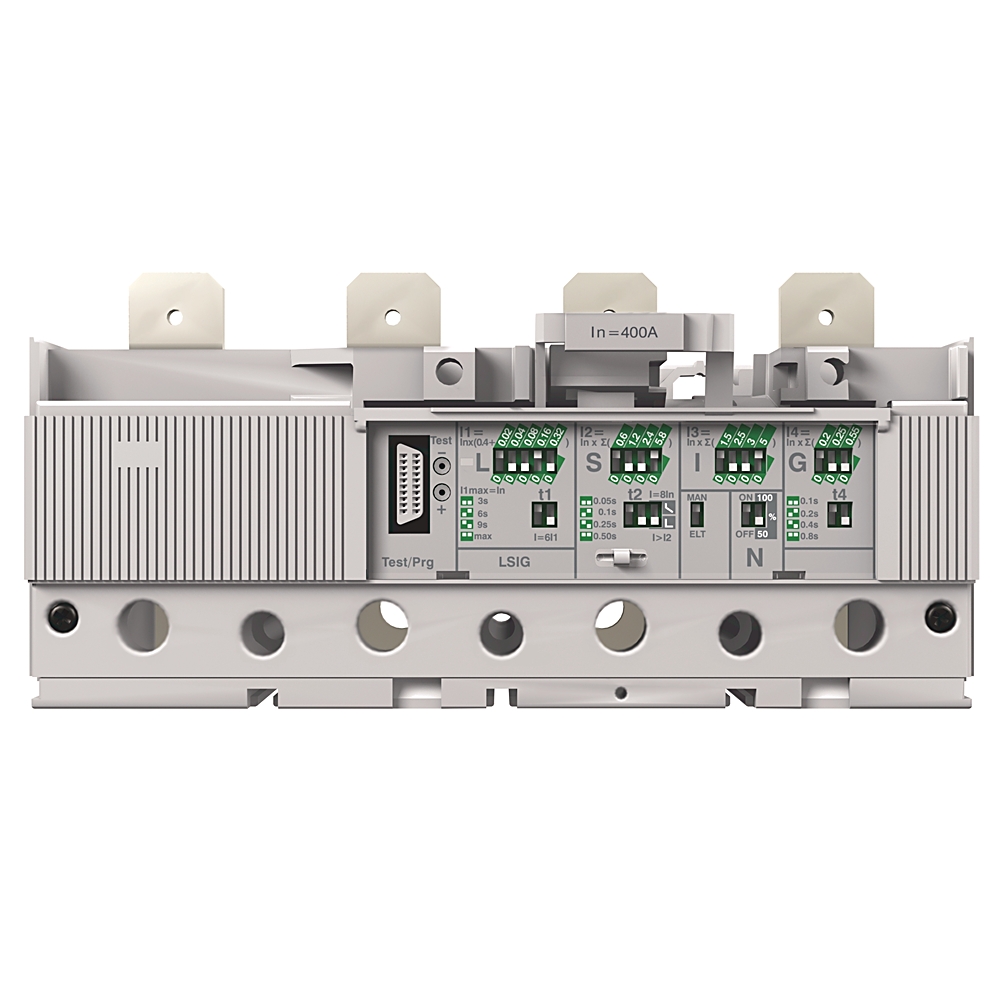

140G - Molded Case Circuit Breaker, K frame, 65 kA, LSIG-M (electronic), 4 Poles, Rated Current 400 A

140G - Molded Case Circuit Breaker, K frame, 65 kA, LSIG-M (electronic), 4 Poles, Rated Current 400 A
Product Code: 140G-K6K4-D40
Partner cod.: 140G-K6K4-D40
ROCKWELL AUTOMATION


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Description
Tecnichal data
Features
Offers a wide range of operating mechanisms to fit a variety of panel configurations
Offers a wide range of accessories for global availability
Approved for global application: UL, CSA, CCC, and IEC performance interrupting/breaking capacity
Provides greater customization in trip units
Technical Specs
Specifications
Bulletin Number:140G - Molded Case Circuit Breaker
Frame/Rating:K Frame (400 A)
Interrupting Rating, 50/60 Hz, 240V (kA):150
Interrupting Rating, 50/60 Hz, 480V (kA):65
Interrupting Rating, 50/60 Hz, 600V (kA):35
Breaking Capacity, 50/60 Hz, 220V (kA):100
Breaking Capacity, 50/60 Hz, 415V (kA):70
Breaking Capacity, 50/60 Hz, 440V (kA):65
Breaking Capacity, 50/60 Hz, 690V (kA):40
Interrupting Rating, 50/60 Hz, 500V DC (kA):50
Interrupting Rating, 50/60 Hz, 600V DC (kA):35
Circuit Breaker Data
Device Type:140G - Molded Case Circuit Breaker
Number of Poles:4 Poles
Frame Size:K frame
Rated Current(A):400 A
Protection:LSIG-M (electronic)
Manufacturing
Assembly:Factory Assembled
Description
Molded Case Ckt-BKR, 400A K Frame, 65 kA at 480V, ElecLSIG MAINT.MODE, 4 Poles, 400A, 80 Percent MCCB, No Bus Bar Mounting, NONE, None, NONE, None
