| Product properties | Type: COM Product type: Housing with locking latch Product family: HC-COM Application: Standard Housing type: Panel mounting base Pg screw connection: none |

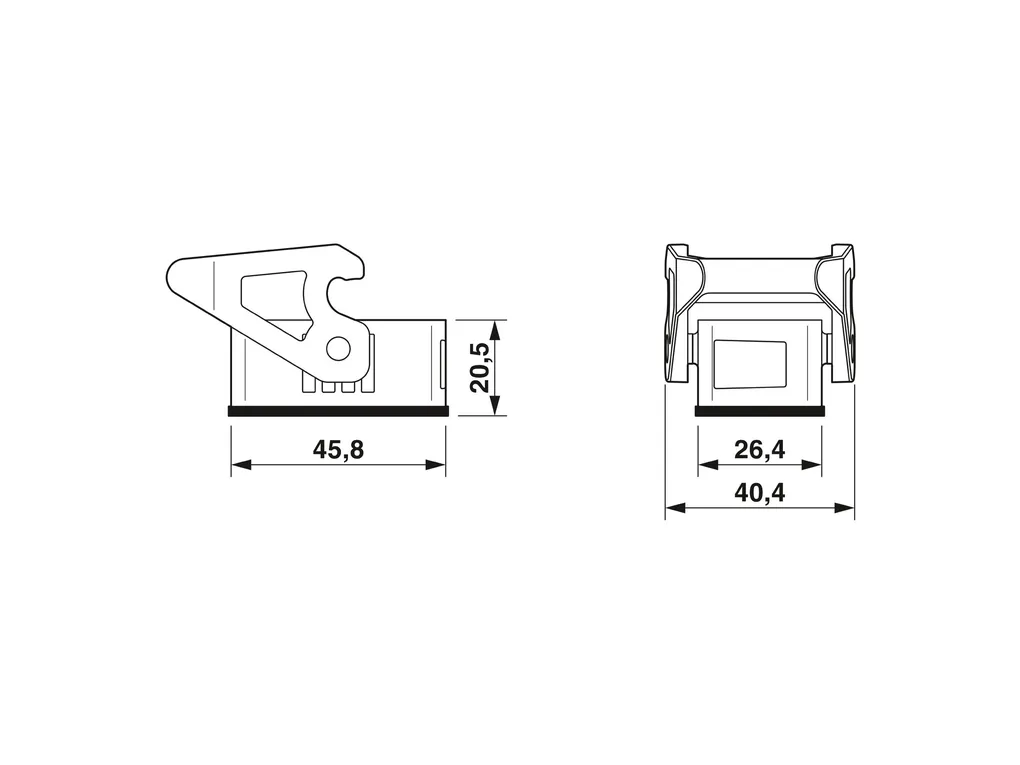

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/e3365d14c29b2d43a6174e606924a9b8/-S204x204-FJPG Width: 39 mm Height: 19.8 mm Length: 45.8 mm Hole diameter: 3.5 mm Installation dimensions Width of the assembly cutout: 22.7 mm Length of the assembly cutout: 26.5 mm |
| Material specifications | Flammability rating according to UL 94: V0 (Interlock) Seal material Flat gasket: NBR, conductive Locking latch material: PA Housing material: Die-cast aluminum, salt water resistant |
| Mechanical properties | Mechanical data Locking type: Latch |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 Ambient temperature (operation): -40°C ... 125°C |
