PHOENIX CONTACT 1078592
PHOENIX CONTACT 1078592
PHOENIX CONTACTNot available

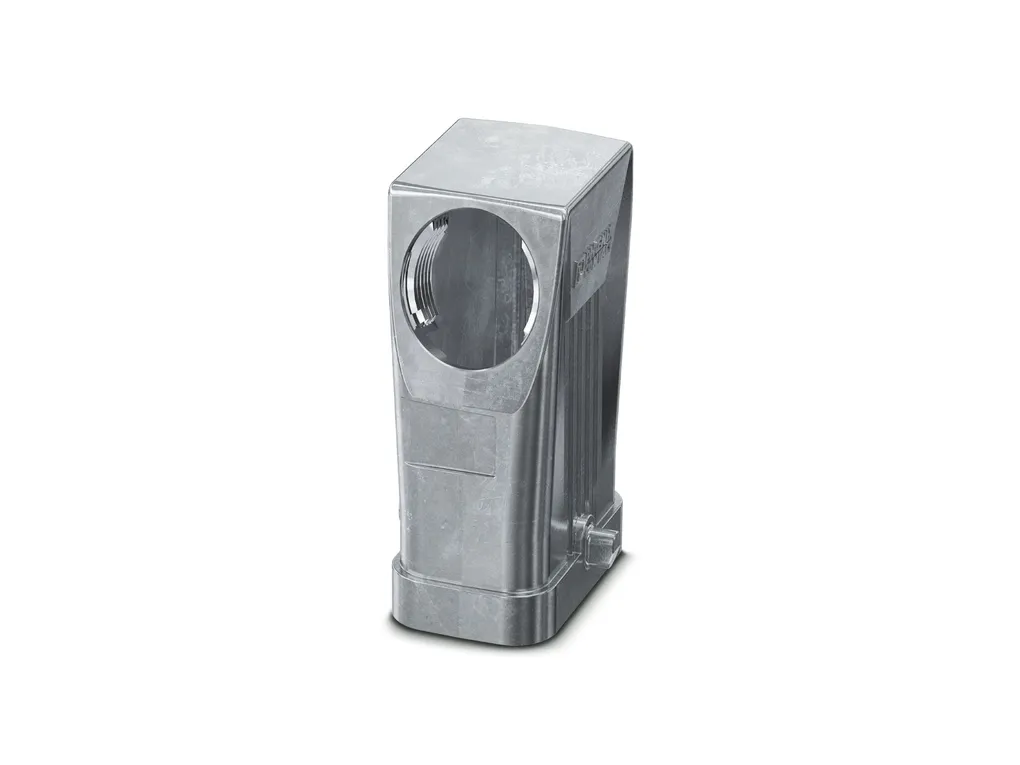

HC-COM-HHFS-1STM25-EL-AL - Housing

Sleeve housing COM, for single locking latch, material: Die-cast aluminum, salt water resistant, cable outlets: 1, lateral, 1x M25, height: 68 mm, cable gland: none, Standard
Product Code: 1078592
Partner cod.: 1078592
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Download
Tecnichal data
Product propertiesType: COM
Product type: Housing with locking latch
Product family: HC-COM
Application: Standard
No. of cable outlets: 1
Type of the screw connection: 1x M25
Housing type: Sleeve housing
Cable outlet: lateral
Pg screw connection: none

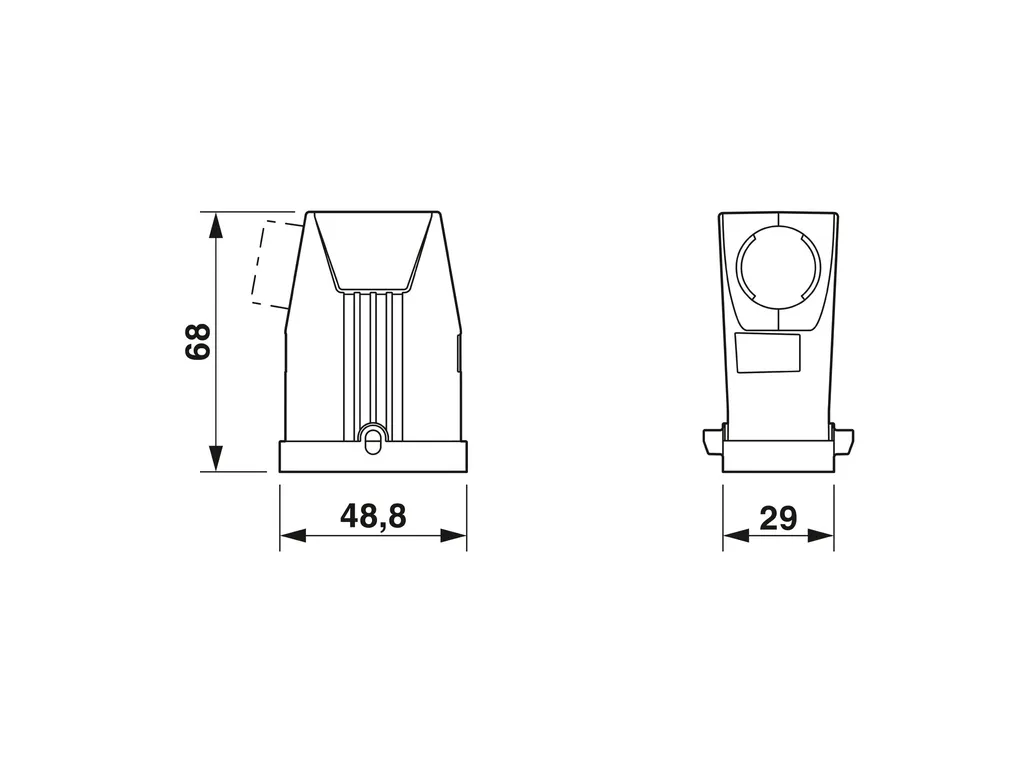

DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/f44b1fc481da874f815961fccdee0ffc/-S204x204-FJPG
Width: 39 mm
Height: 68 mm
Length: 48.8 mm
Material specificationsHousing material: Die-cast aluminum, salt water resistant
Mechanical propertiesMechanical data
Type of the screw connection: 1x M25
Locking type: Pin
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP66
Ambient temperature (operation): -40°C ... 125°C
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_00224.pdf

Manufacturer_declaration_00320.pdf

Manufacturer_declaration_02726.pdf

Technical_drawing_07696.pdf
