| Product properties | Type: COM Product type: Housing with locking latch Product family: HC-COM Application: Standard No. of cable outlets: 1 Type of the screw connection: 1x M25 Housing type: Box mounting bases Cable outlet: lateral Pg screw connection: none |

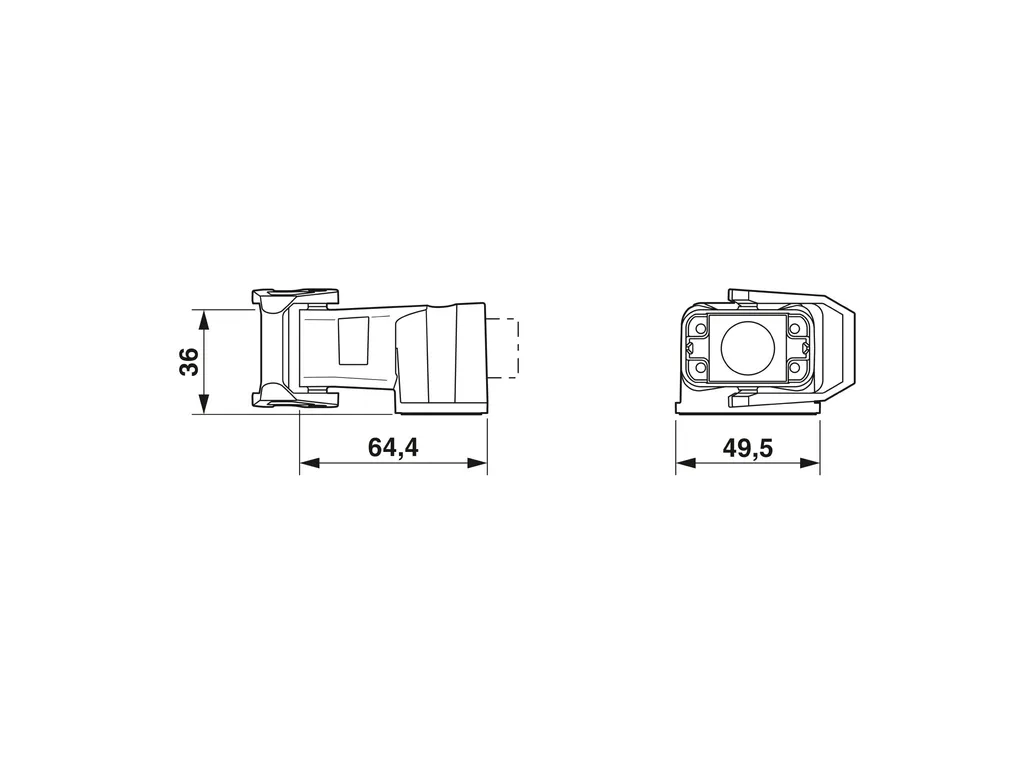

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/1f16b0b443b8b74a9c31992cf70ce331/-S204x204-FJPG Width: 49.5 mm Height: 37.5 mm Length: 63.5 mm Hole diameter: 3.5 mm Installation dimensions Width of the assembly cutout: 24.5 mm Length of the assembly cutout: 27 mm |
| Material specifications | Flammability rating according to UL 94: V0 (Interlock) Seal material Flat gasket: NBR, conductive Locking latch material: PA Housing material: Die-cast aluminum, salt water resistant |
| Mechanical properties | Mechanical data Type of the screw connection: 1x M25 Locking type: Latch |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 Ambient temperature (operation): -40°C ... 125°C |
