| Notes | General: This product replaces 1884128 CK1,6-ER-0,50BU AG |
| Mounting | Connection method: Crimp connection |

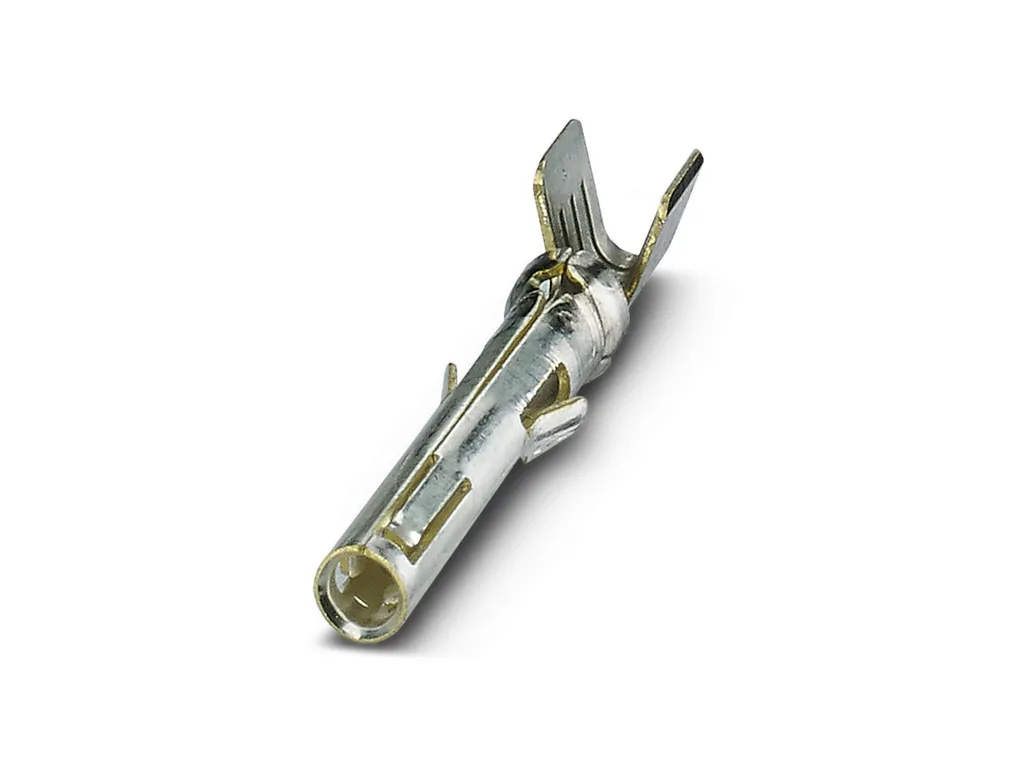

| Product properties | Product type: Crimp contact Type: Individual female contact Contact material type: rolled Series: HC-M-12 HC-M-EMV HC-D HC-DD VC-D HC-M-03/04 HC-M-17 HC-K HC-Q HC-COM HC-M-42 |
| Connection data | Connection method: Crimp connection Contact connection type: Socket Connection technology: Crimp connection Conductor cross section: 0.34 mm² ... 1 mm² Connection cross section AWG: 22 ... 17 Stripping length of the individual wire: 4 mm Conductor cross section flexible: 0.34 mm² ... 1 mm² Conductor cross section AWG: 22 ... 17 |
| Material specifications | Contact material: Cu alloy, nickel-plated Contact surface material: silver-plated |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/9f4d3f90da6c1044999292ed033ab8a7/-S204x204-FJPG Length: 21 mm Mechanical characteristics Contact diameter: 1.6 mm |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 50 |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -40°C ... 125°C |
