1004366 PHOENIX CONTACT - Technology Bsa

CK1,6-ER-2,50BU OIC AG - Crimp contact

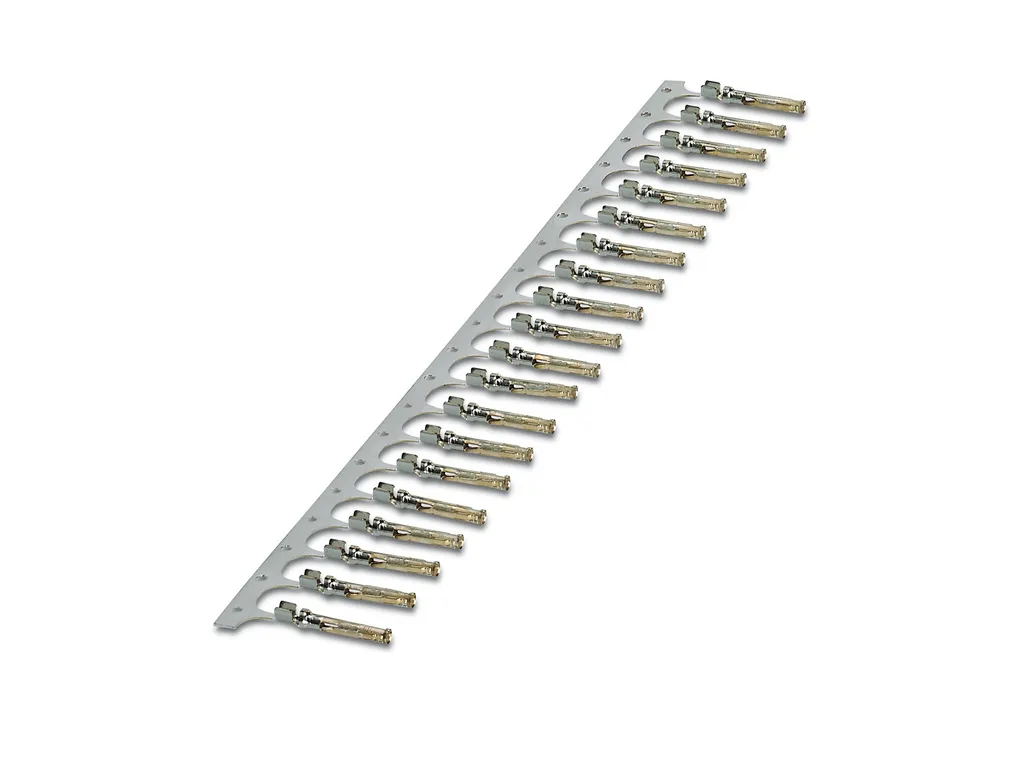

Crimp contact, contact diameter:1.6 mm, rolled, Socket, contact material:Cu alloy, nickel-plated, contact surface:silver-plated, connection cross section:1.5 mm²...2.5 mm²,AWG16...14

Product Code: 1004366 Copia - Copy

Partner cod.: 1004366 Copia - Copy

PHOENIX CONTACT

Notes	General: This product replaces 1884115 CK1,6-ER-1,50BU AG
Mounting	Connection method: Crimp connection
Product properties	Product type: Crimp contact Type: Individual female contact Contact material type: rolled Series: HC-M-12 HC-M-EMV HC-D HC-DD VC-D HC-M-03/04 HC-M-17 HC-K HC-Q HC-COM HC-M-42
Connection data	Connection method: Crimp connection Contact connection type: Socket Connection technology: Crimp connection Conductor cross section: 1.5 mm² ... 2.5 mm² Connection cross section AWG: 16 ... 14 Stripping length of the individual wire: 4 mm Conductor cross section flexible: 1.5 mm² ... 2.5 mm² Conductor cross section AWG: 16 ... 14
Material specifications	Contact material: Cu alloy, nickel-plated Contact surface material: silver-plated
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/c4f0890d678e494d922e31251d7cb13d/-S204x204-FJPG Length: 21 mm Mechanical characteristics Contact diameter: 1.6 mm
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢Ã¢°¥ 50
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -40°C ... 125°C
