ROCKWELL AUTOMATION MPL-A320H-SJ74AA
ROCKWELL AUTOMATION MPL-A320H-SJ74AA
ROCKWELL AUTOMATION MPL-A320H-SJ74AA
ROCKWELL AUTOMATION MPL-A320H-SJ74AA
ROCKWELL AUTOMATIONNot available

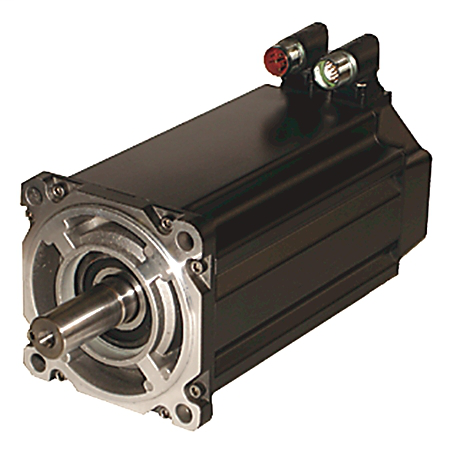

Servo Motor, Rotary, Low Inertia, IEC, 240V AC, 1024 Sin/Cos, 3500 rpm Maximum, 3.05 N-M, 1/4 Turn Right Angle Rotatable DIN Connector, Hiperface Single-Turn Absolute Encoder Feedback, 24V DC Brake, 100 mm Bolt Circle Metric Flange Mounting, Keyed Shaft,

Bulletin MPL - Low-Inertia Brushless Servo Motors Product, 230 V, Frame Size 3 = 100 mm (3.94 in.), Stack Length 20 = 50.8 mm (2.0 in.), 3500 RPM, Single-turn High-resolution Encoder. Keyed Shaft Extension, SpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect), 24V DC Brake, IEC Metric, Free Mounting Holes (Type FF)
Product Code: MPL-A320H-SJ74AA
Partner cod.: MPL-A320H-SJ74AA
ROCKWELL AUTOMATION


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Download
Tecnichal data
PRODUCT SELECTIONProduct TypeBulletin MPL - Low-Inertia Brushless Servo Motors ProductVoltage230 VFrame Size3 = 100 mm (3.94 in.)Magnet Stack Length20 = 50.8 mm (2.0 in.)RPM3500 RPMFeedbackSingle-turn High-resolution EncoderEnclosureKeyed Shaft ExtensionConnectorsSpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect)Brake Option24 V DC Brake

Other products

Description other products

ROCKWELL AUTOMATION MPL-B560F-SK74AA
Servo Motor, Rotary, Low Inertia, IEC, 480V AC, 1024 Sin/Cos, 3000 rpm Maximum, 26.8 N-M, 1/4 Turn Right Angle Rotatable DIN Connector, Hiperface Single-Turn Absolute Encoder Feedback, 24V DC Brake, 165 mm Bolt Circle Metric Flange Mounting, Keyless Shaft
Cod. Articolo: MPL-B560F-SK74AA
Bulletin MPL - Low-Inertia Brushless Servo Motors Product, 460 V, Frame Size 5 = 165 mm (6.50 in.), Stack Length 60 = 152.4 mm (6.0 in.), 3000 RPM, Single-turn High-resolution Encoder. Keyless Shaft Extension, SpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect), 24V DC Brake, IEC Metric, Free Mounting Holes (Type FF)
More info →
ROCKWELL AUTOMATION MPL-A310P-MK74AA
Servo Motor, Rotary, Low Inertia, IEC, 240V AC, 1024 Sin/Cos, 5000 rpm Maximum, 1.58 N-M, 1/4 Turn Right Angle Rotatable DIN Connector, Hiperface Multi-Turn Absolute Encoder Feedback, 24V DC Brake, 100 mm Bolt Circle Metric Flange Mounting, Keyless Shaft,
Cod. Articolo: MPL-A310P-MK74AA
Bulletin MPL - Low-Inertia Brushless Servo Motors Product, 230 V, Frame Size 3 = 100 mm (3.94 in.), Stack Length 10 = 25.4 mm (1.0 in.), 5000 RPM, Multi-turn High-resolution Encoder (absolute feedback). Keyless Shaft Extension, SpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect), 24V DC Brake, IEC Metric, Free Mounting Holes (Type FF)
More info →
ROCKWELL AUTOMATION MPL-B4540F-SK72AA
Servo Motor, Rotary, Low Inertia, IEC, 480V AC, 1024 Sin/Cos, 3000 rpm Maximum, 10.2 N-M, 1/4 Turn Right Angle Rotatable DIN Connector, Hiperface Single-Turn Absolute Encoder Feedback, No Brake, 130 mm Bolt Circle Metric Flange Mounting, Keyless Shaft, St
Cod. Articolo: MPL-B4540F-SK72AA
Bulletin MPL - Low-Inertia Brushless Servo Motors Product, 460 V, Frame Size 45 = 130 mm (5.12 in.), Stack Length 40 = 101.6 mm (4.0 in.), 3000 RPM, Single-turn High-resolution Encoder. Keyless Shaft Extension, SpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect), No Brake, IEC Metric, Free Mounting Holes (Type FF)
More info →
