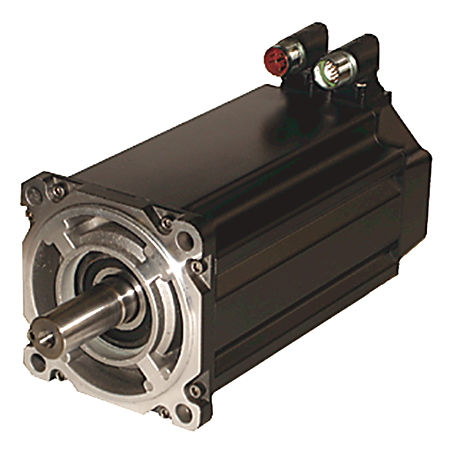

ROCKWELL AUTOMATION MPL-B560F-SK74AA
ROCKWELL AUTOMATION MPL-B560F-SK74AA
ROCKWELL AUTOMATIONNot available

Servo Motor, Rotary, Low Inertia, IEC, 480V AC, 1024 Sin/Cos, 3000 rpm Maximum, 26.8 N-M, 1/4 Turn Right Angle Rotatable DIN Connector, Hiperface Single-Turn Absolute Encoder Feedback, 24V DC Brake, 165 mm Bolt Circle Metric Flange Mounting, Keyless Shaft

Bulletin MPL - Low-Inertia Brushless Servo Motors Product, 460 V, Frame Size 5 = 165 mm (6.50 in.), Stack Length 60 = 152.4 mm (6.0 in.), 3000 RPM, Single-turn High-resolution Encoder. Keyless Shaft Extension, SpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect), 24V DC Brake, IEC Metric, Free Mounting Holes (Type FF)
Product Code: MPL-B560F-SK74AA
Partner cod.: MPL-B560F-SK74AA
ROCKWELL AUTOMATION


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Download
Tecnichal data
PRODUCT SELECTIONProduct TypeBulletin MPL - Low-Inertia Brushless Servo Motors ProductVoltage460 VFrame Size5 = 165 mm (6.50 in.)Magnet Stack Length60 = 152.4 mm (6.0 in.)RPM3000 RPMFeedbackSingle-turn High-resolution EncoderEnclosureKeyless Shaft ExtensionConnectorsSpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect)Brake Option24 V DC Brake
Technical Specs
Product Selection
Product Type:Bulletin MPL - Low-Inertia Brushless Servo Motors Product
Voltage:460 V
Frame Size:5 = 165 mm (6.50 in.)
Magnet Stack Length:60 = 152.4 mm (6.0 in.)
RPM:3000 RPM
Feedback:Single-turn High-resolution Encoder
Enclosure:Keyless Shaft Extension
Connectors:SpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect)
Brake Option:24 V DC Brake
