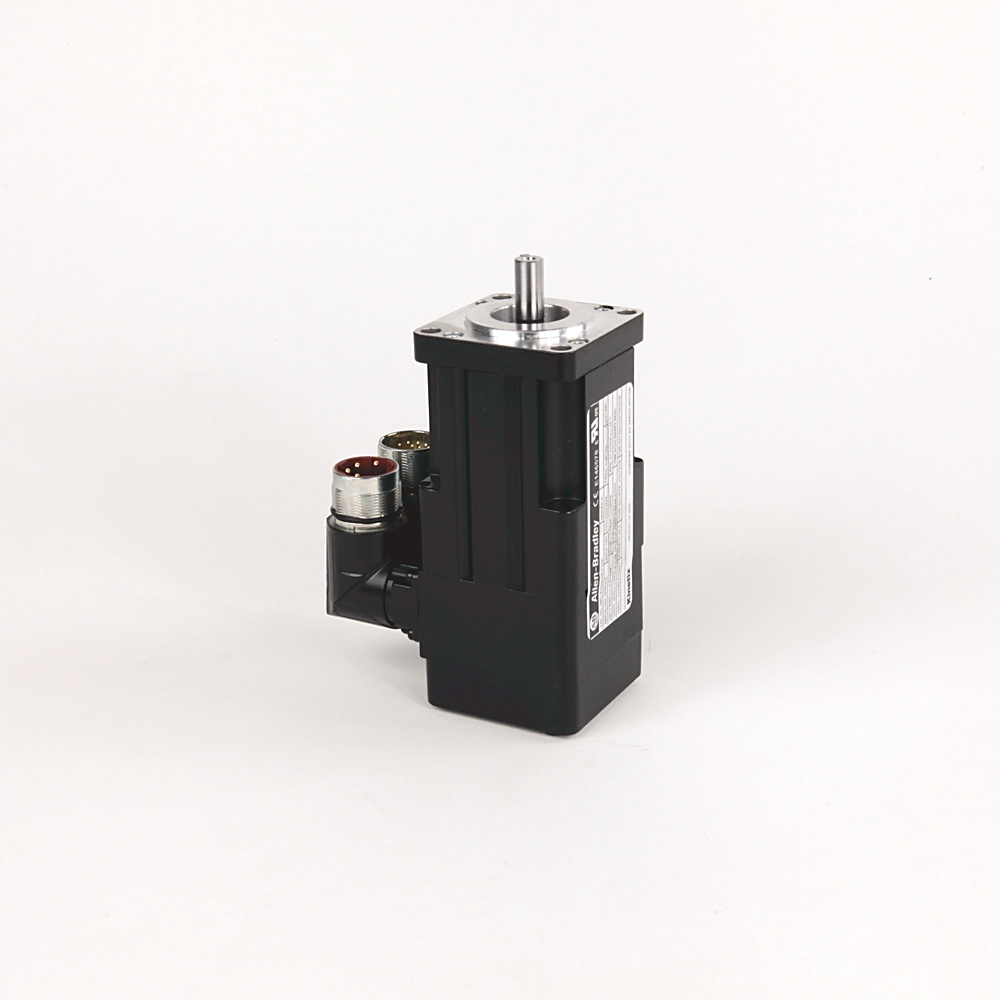

ROCKWELL AUTOMATION MPL-A1520U-EJ72AA
ROCKWELL AUTOMATION MPL-A1520U-EJ72AA
ROCKWELL AUTOMATION MPL-A1520U-EJ72AA
ROCKWELL AUTOMATIONNot available

Bulletin MPL - Low-Inertia Brushless Servo Motors Product, 230 V, Frame Size 15 = 63 mm (2.48 in.), Stack Length 20 = 50.8 mm (2.0 in.), 7000 RPM, Single-turn High-resolution Encoder. Keyed Shaft Extension, SpeedTEC DIN Connector, Right Angle, 180

Bulletin MPL - Low-Inertia Brushless Servo Motors Product, 230 V, Frame Size 15 = 63 mm (2.48 in.), Stack Length 20 = 50.8 mm (2.0 in.), 7000 RPM, Single-turn High-resolution Encoder. Keyed Shaft Extension, SpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect), No Brake, IEC Metric, Free Mounting Holes (Type FF)
Product Code: MPL-A1520U-EJ72AA
Partner cod.: MPL-A1520U-EJ72AA
ROCKWELL AUTOMATION


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Description
Download
Tecnichal data
PRODUCT SELECTIONProduct TypeBulletin MPL - Low-Inertia Brushless Servo Motors ProductVoltage230 VFrame Size15 = 63 mm (2.48 in.)Magnet Stack Length20 = 50.8 mm (2.0 in.)RPM7000 RPMFeedbackSingle-turn High-resolution EncoderEnclosureKeyed Shaft ExtensionConnectorsSpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect)Brake OptionNo Brake
Technical Specs
Specifications
Armature Voltage:230 V
Frame:15 = 63 mm (2.48 in.)
Speed Rating:7000 RPM
Product Selection
Product Type:Bulletin MPL - Low-Inertia Brushless Servo Motors Product
Voltage:230 V
Frame Size:15 = 63 mm (2.48 in.)
Magnet Stack Length:20 = 50.8 mm (2.0 in.)
RPM:7000 RPM
Feedback:Single-turn High-resolution Encoder
Enclosure:Keyed Shaft Extension
Connectors:SpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect)
Brake Option:No Brake
Description
Bulletin MPL - Low-Inertia Brushless Servo Motors Product, 230 V, Frame Size 15 = 63 mm (2.48 in.), Stack Length 20 = 50.8 mm (2.0in.), 7000 RPM, Single-turn High-resolution Encoder. Keyed Shaft Extension, SpeedTEC DIN Connector, Right Angle, 180+ Rotata
