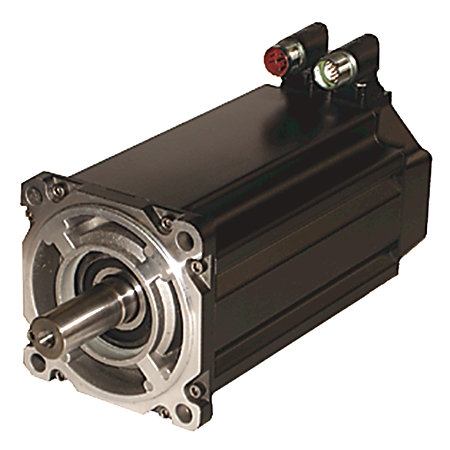

ROCKWELL AUTOMATION MPL-B310P-MJ74AA
ROCKWELL AUTOMATION MPL-B310P-MJ74AA
ROCKWELL AUTOMATION MPL-B310P-MJ74AA
ROCKWELL AUTOMATIONNot available

Bulletin MPL - Low-Inertia Brushless Servo Motors Product, 460 V, Frame Size 3 = 100 mm (3.94 in.), Stack Length 10 = 25.4 mm (1.0in.), 5000 RPM, Multi-turn High-resolution Encoder (absolute feedback). Keyed Shaft Extension, SpeedTEC DIN Connector,

Bulletin MPL - Low-Inertia Brushless Servo Motors Product, 460 V, Frame Size 3 = 100 mm (3.94 in.), Stack Length 10 = 25.4 mm (1.0 in.), 5000 RPM, Multi-turn High-resolution Encoder (absolute feedback). Keyed Shaft Extension, SpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect), 24V DC Brake, IEC Metric, Free Mounting Holes (Type FF)
Product Code: MPL-B310P-MJ74AA
Partner cod.: MPL-B310P-MJ74AA
ROCKWELL AUTOMATION


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Description
Download
Tecnichal data
Features
DIN connector versions allow flexible orientation of connectors and use of a single cable family with all MP-Series motors
Continuous stall torque of 0.26…163 Nm (2.3…1440 lb-in.)
Integral 24V brake option
Peak torque of 0.77…278 Nm (6.8…2460 lb-in.)
Low-profile, field-reversible motor connectors for minimal servo motor impact on machine design
Technical Specs
Specifications
Armature Voltage:460 V
Frame:3 = 100 mm (3.94 in.)
Speed Rating:5000 RPM
Product Selection
Product Type:Bulletin MPL - Low-Inertia Brushless Servo Motors Product
Voltage:460 V
Frame Size:3 = 100 mm (3.94 in.)
Magnet Stack Length:10 = 25.4 mm (1.0 in.)
RPM:5000 RPM
Feedback:Multi-turn High-resolution Encoder (absolute feedback)
Enclosure:Keyed Shaft Extension
Connectors:SpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect)
Brake Option:24 V DC Brake
Description
Bulletin MPL - Low-Inertia Brushless Servo Motors Product, 460 V, Frame Size 3 = 100 mm (3.94 in.), Stack Length 10 = 25.4 mm(1.0in.), 5000 RPM, Multi-turn High-resolution Encoder (absolute feedback). Keyed Shaft Extension, SpeedTEC DIN Connector, RightAngle, 180 Degrees Rotatable (Quick Connect), 24V DC Brake, IEC Metric, Free Mounting Holes (Type FF)
