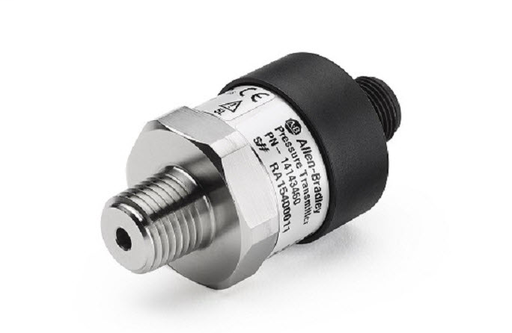

ROCKWELL AUTOMATION 836P-N2SMGC10A-D4
ROCKWELL AUTOMATION 836P-N2SMGC10A-D4
ROCKWELL AUTOMATIONNot available

Solid-State Pressure Sensor, Standard, Non-Display, 0 psi, Transmitter, SAE 7/16-20 UNF Male, Gauge, 1000 psi, 4-20mA Analog Only, 4 Pin DC Micro (M12), 8 – 30V DC

Solid-State Pressure Sensor, Standard, Non-Display, Transmitter, 0 psi (0 bar), SAE 7/16-20 UNF Male, 1000 psi (68.94 bar), Gauge, 4-20 mA Analog Only, 4-Pin DC Micro(M12),
Product Code: 836P-N2SMGC10A-D4
Partner cod.: 836P-N2SMGC10A-D4
ROCKWELL AUTOMATION


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Tecnichal data
With displayNo
ReadableNo
Housing materialStainless steel
Position, nomAs required
Suitable for gasesYes
Suitable for waterYes
Suitable for steamYes
Suitable for airYes
Measuring elementPiezo
Sensor modelStandard
Connection type4 pin DC micro (M12)
Min. medium temperature (continuous)-20 °C
Output signal4 - 20 mA
Power supply8...30V DC
Lower pressure range0 psi
Reverse polarity protectionAnalog + vs. Analog -
Output type4...20 mA analog only
Long term drift≤ ±0.1% of span
Load≤power supply -8V/0.02 A
Non-linearity≤ ±0.5% of span
Settling timeAnalog signal: 3 ms
Current consumptionSignal current, max 25 mA (total)
With temperature sensorNo
Max. medium temperature (continuous)100 °C
Switch on time<15 ms
Signal noise≤± 0.3% of span
Short circuit resistanceAnalog + vs. Analog -
Analog signal≤±1% of span, including non-linearity, hysteresis, zero offset, and end value deviation (corresponds to measured error per IEC 61298-2), calibrated in vertical mounting position with process connection facing downwards.
Degree of protection (IP)IP67
Upper pressure range1000 psi (lbf/in²)
Pressure typeGauge
Thread sizeSAE 7/16-20 UNF male
Service life10 million load cycles
Shock500 g (IEC 60068-2-27, mechanical)
mBar models range of measureNon-repeatability: ≤0.1 bar ≤0.2% span ≤0.1% of span
Operating environmentIP67 - M12x1 4 pin, IEC 60529
Range of measure≤0.1 bar: ≤± -0.5% of span, ≤0.4 bar: ≤± -0.2% of span, >0.4 bar: ≤± -0.1% of span
Operating temperature15 °F
Storage temperature-40 °F
Atmospheric pressure860 mbar
Ambient temperatureSAE 7/16-20 UNF: -20...100 °C
Temperature errorAt 0...80 °C in rate temperature range:Typical: 1.0% of span Maximum: 2.5% of span
Vacuum resistance10 mbar
Humidity45...75 % r. h.
Vibration10 G (0.35 oz) (IEC 60068-2-6, under resonance)
