ROCKWELL AUTOMATION 20LC1K2ACENNANA0EA
ROCKWELL AUTOMATION 20LC1K2ACENNANA0EA
ROCKWELL AUTOMATION 20LC1K2ACENNANA0EA
ROCKWELL AUTOMATIONNot available

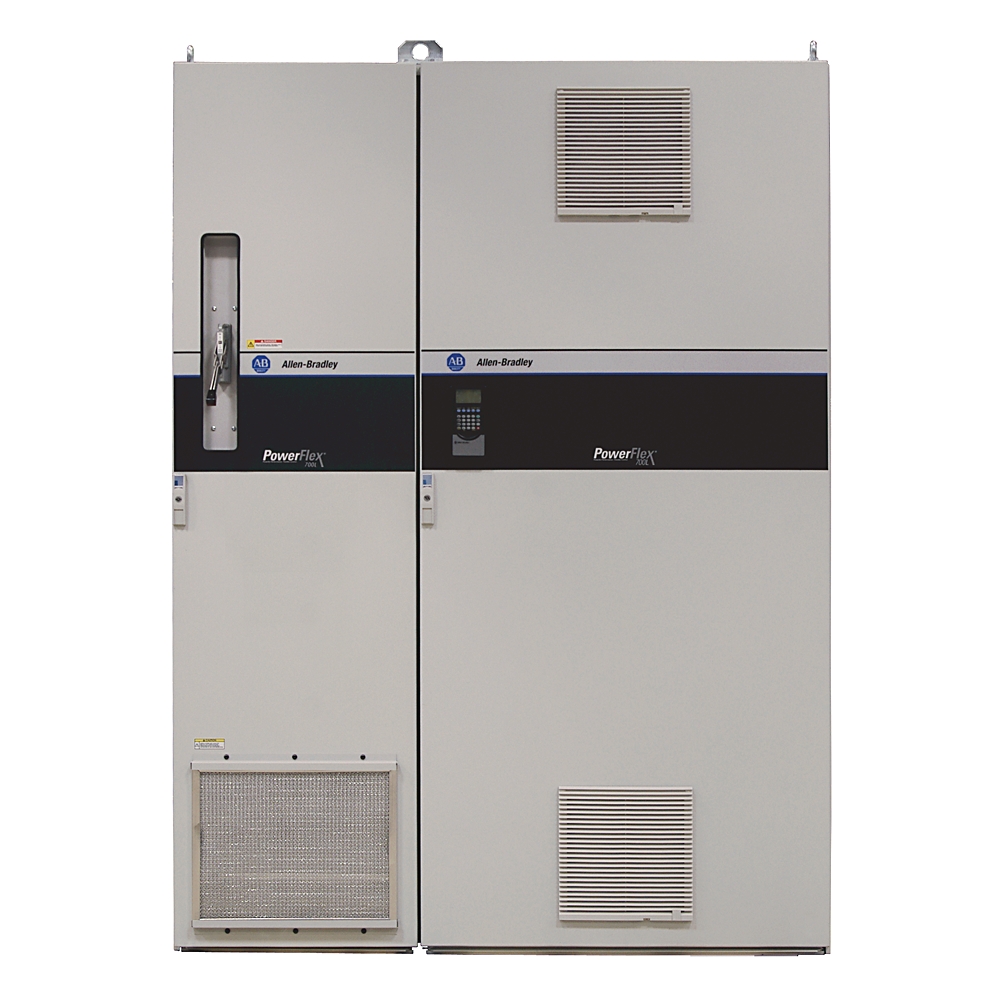

PowerFlex 700L AC Drive 20L

Product Code: 20LC1K2ACENNANA0EA
Partner cod.: 20LC1K2ACENNANA0EA
ROCKWELL AUTOMATION


Diminuisci la quantità
Aumenta la quantità
Technical Specs
Download
Technical Specs
Base Drive Information
Input Voltage:400 VAC, 3 PH
Output Current:1250 Amps
Enclosure:IP20 / Type 1
Frame Size:Frame Size 3B
Documentation:English Documentation Set
Brake IGBT:No Brake IGBT
Brake Resistor:Without Drive Mounted Brake Resistor
Equipment Type:Complete Regenerative Drive
Control and I/O:700S Phase II control, Expanded cassette
Additional Configurations:Phase II, No DriveLogix, no embedded comm
Coolant:Water
Options
Base Plus Options:Factory Assembled
Human Interface Module:Door Mounted Full Numeric LCD HIM
Internal Communication Module:No Communication Module
Feedback Option:None
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

20l-in003_-en-e.pdf

20l-td001_-en-p.pdf

20l-um001_-en-p.pdf
