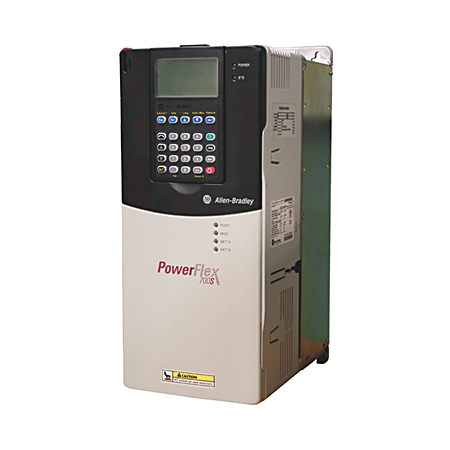

ROCKWELL AUTOMATION 20DE1P7A0EYNANANE
ROCKWELL AUTOMATION 20DE1P7A0EYNANANE
ROCKWELL AUTOMATIONNot available

20D, 1.7 A at 1 Hp, 600V AC Three-Phase, IP20/NEMA/UL 1, Ph II Ctrl - Expanded Cassette, Future Use, No HIM - Blank Plate, No Communication Module, W/ EMC Filt & ComModeChoke, Brake IGBT Installed, No Internal Brake Resistor, Size 1 Frame, Ph II Ctl, N

Product Code: 20DE1P7A0EYNANANE
Partner cod.: 20DE1P7A0EYNANANE
ROCKWELL AUTOMATION


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Download
Tecnichal data
Features
Premier Integration with PowerFlex® AC drives uses the Logix control platform to simplify parameter and tag programming and reduces development time
Common bus capability
IP20 NEMA/UL Type 1 and IP21 NEMA/UL Type 1
Pull-apart control terminal blocks allow for easy wiring and quick disconnect
Optimized global voltage settings allow quick setup anywhere in the world
Power Ratings
Configuration and programming via optional integral LCD keypad, remote keypad, or software
SynchLink™ fiber optic link for a high level of drive coordination and data transfer
AC or DC common bus configurations for stand-alone or multiple drive solutions
Zero Stacking™ Drives or side-by-side mounting conserves panel space and reduces installation costs
V/Hz control, Vector Control with FORCE™ Technology, and Permanent Magnet Motor Control
User function library provides logic functions without a PLC
Technical Specs
Specifications
Voltage Rating:600 VAC, 3 PH
Base Drive Information
Input Voltage:600 VAC, 3 PH
Output Current:1.7 Amps
Enclosure:IP20 / Type 1, with conformal coating
Frame Size:Frame Size 1
Brake IGBT:Brake IGBT Installed
Brake Resistor:Without Drive Mounted Brake Resistor
EMC Filtering Options:Second Environment Filter per CE EMC directive (89/336/EEC)
Phase II, Control Options:Phase II control, Expanded cassette
Feedback Option:Standard (Incremental Encoder)
Additional Configurations:Phase II, No DriveLogix, no embedded comm
Firmware:Standard
Options
Base Plus Options:Base Plus Options Method
Internal Communication Module:No Communication Module
