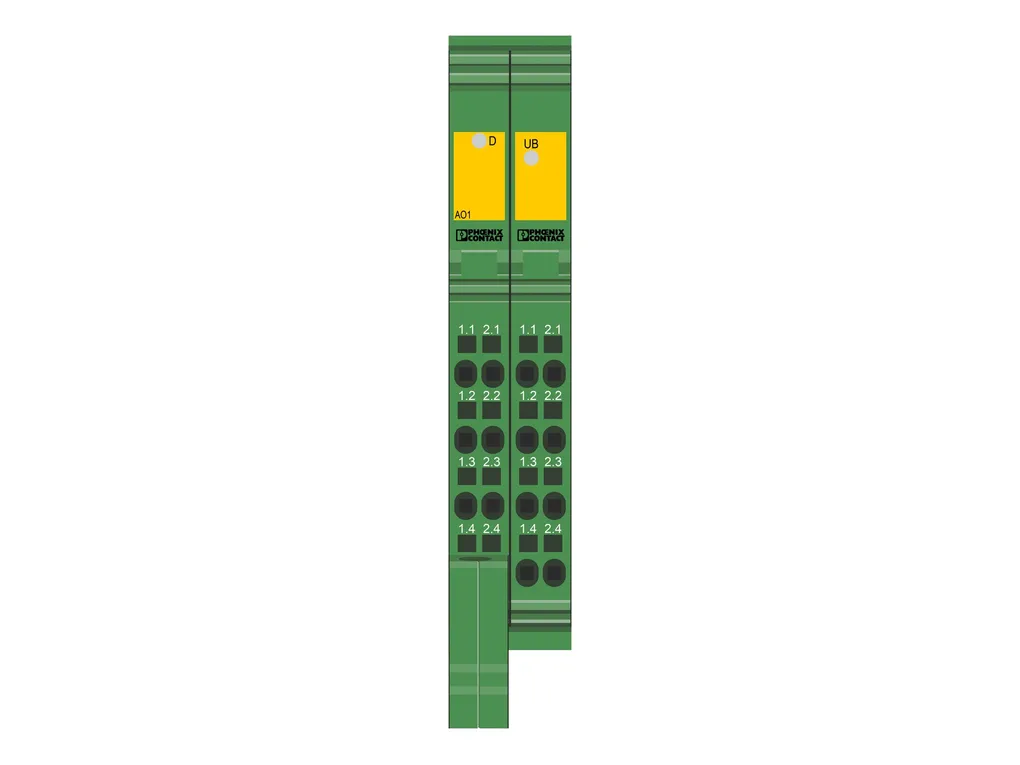

IB IL AO 1/SF-XC-PAC - Analog module

Inline, Analog output terminal, Analog output: 1, 0 V ... 10 V, 0 mA ... 20 mA, 4 mA ... 20 mA, connection technology: 2-conductor, transmission speed in the local bus: 500 kbps, Extremeconditions version, degree of protection: IP20, including Inline connectors and marking fields

Product Code: 2701219 Copia - Copy

Partner cod.: 2701219 Copia - Copy

PHOENIX CONTACT

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/20a984302842e949b5ce7beb58df3766/-S204x204-FJPG Width: 24.4 mm Height: 135 mm Depth: 71.5 mm Note on dimensions: Housing dimensions
Interfaces	Inline local bus Number of interfaces: 2 Connection method: Inline data jumper Transmission speed: 500 kbps
System properties	Module ID code (dec.): 125 ID code (hex): 7D Length code (hex): 01 Length code (dec): 01 Process data channel: 16 bit Input address area: 0 Byte Output address area: 2 Byte Register length: 16 bit Required parameter data: 4 Byte Required configuration data: 4 Byte
Output data	Analog Output name: Analog output Connection technology: 2-conductor Note regarding the connection technology: shielded Number of outputs: 1 D/A converter resolution: 16 bit Protective circuit: Transient protection of outputs Representation of output values: 16-bit straight binary DAC resolution: 16 bit Process data update: < 1 ms Current output signal: 0 mA ... 20 mA 4 mA ... 20 mA Load/output load current output: < 500 Ã© Voltage output signal: 0 V ... 10 V Load/output load voltage output: > 2 kÃ©
Product properties	Type: modular Product type: I/O component Product family: Inline Scope of delivery: including Inline connectors and marking fields Operating mode: Process data mode with one word Diagnostics messages: Failure of or insufficient communications power U_L I/O error message sent to the bus coupler Insulation characteristics Overvoltage category: II (IEC 60664-1, ENÃ60664-1) Pollution degree: 2 (IEC 60664-1, ENÃ60664-1)
Electrical properties	Potentials Power consumption: typ. 1.425 W (total) max. 1.86 W (total) Potentials: Communications power (U Supply voltage: 7.5 VÃDC (via voltage jumper) Current draw: max. 40 mA typ. 30 mA Potentials: Supply of analog modules (U Supply voltage: 24 VÃDC (via voltage jumper) Supply voltage range: 19.2 VÃDC ... 30 VÃDC (including all tolerances, including ripple) Current draw: max. 65 mA typ. 50 mA Electrical isolation/isolation of the voltage ranges Test voltage: 7.5 V supply (bus logic), 24 V supply U_ANA / I/O: 500 VÃAC, 50 Hz, 1 min. Test voltage: 7.5ÃV supply (bus logic), 24ÃV supply U_ANA/ functional ground: 500 VÃAC, 50 Hz, 1 min. Test voltage: I/O/functional ground: 500 VÃAC, 50 Hz, 1 min.
Connection data	Connection technology Connection name: Inline connector Conductor connection Connection method: Spring-cage connection Conductor cross section rigid: 0.08 mm² ... 1.5 mm² Conductor cross section flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm Inline connector Connection method: Spring-cage connection Conductor cross section, rigid: 0.08 mm² ... 1.5 mm² Conductor cross section, flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -25°C ... 55°C (Standard) -40°C ... 70°C (Extended, see section Ã¢Ã¢¬ÃTested successfully: use under extreme ambient conditionsÃ¢Ã¢¬ in the data sheet.) Degree of protection: IP20 Air pressure (operation): 70 kPa ... 106 kPa (up to 3000Ãm above sea level) Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000Ãm above sea level) Ambient temperature (storage/transport): -40°C ... 85°C Permissible humidity (operation): 10 % ... 95 % (non-condensing) Permissible humidity (storage/transport): 10 % ... 95 % (non-condensing)
Standards and regulations	Protection class: III (IEC 61140, ENÃ61140, VDEÃ0140-1)
Mounting	Mounting type: DIN rail mounting
