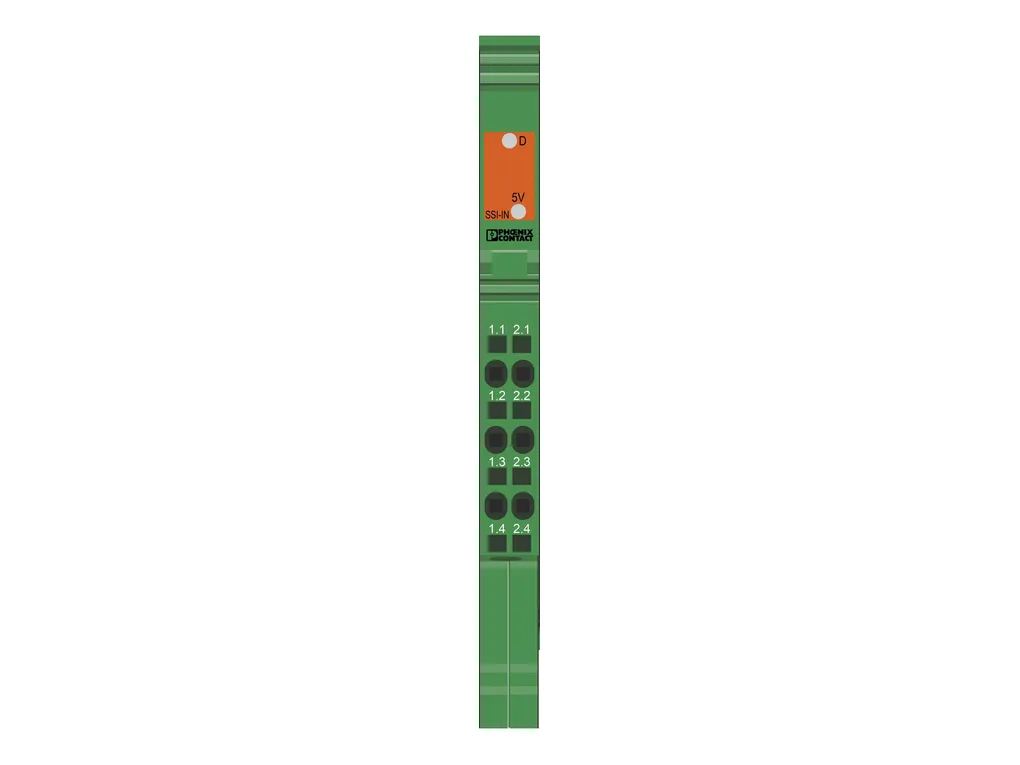

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/20a984302842e949b5ce7beb58df3766/-S204x204-FJPG Width: 12.2 mm Height: 135 mm Depth: 71.5 mm |
| Notes | Utilization restriction CCCex note: Use in potentially explosive areas is not permitted in China. |
| Interfaces | Inline local bus Connection method: Inline data jumper Transmission speed: 500 kbps Transmission physics: Copper |
| System properties | Module ID code (dec.): 95 ID code (hex): 5F Length code (hex): 02 Length code (dec): 02 Process data channel: 32 bit Input address area: 4 Byte Output address area: 4 Byte Register length: 4 Byte Required parameter data: 6 Byte Required configuration data: 5 Byte |
| Input data | Absolute encoder Number of inputs: 1 Adjustable resolution: 25 bit (maximum) Transmission frequency: 100 kHz 200 kHz 400 kHz 800 kHz 1 MHz Digital Connection technology: Spring-cage connection |
| Output data | Digital Number of outputs: 1 |
| Product properties | Type: modular Product type: I/O component Product family: Inline |
| Electrical properties | Supply Drawing encoder supply voltage: Main circuit UM Encoder supply voltage: 5 VÃDC Encoder supply current: max. 250 mA I/O voltage: 24 VÃAC Max. current consumption: 35 mA (typical) Potentials: Communications power (U Supply voltage: 7.5 VÃDC (via voltage jumper) Current draw: max. 28 mA Potentials: Main circuit supply (U Supply voltage: 24 VÃDC (via voltage jumper) Supply voltage range: 19.2 VÃDC ... 30 VÃDC (including all tolerances, including ripple) Current draw: max. 66 mA |
| Connection data | Connection technology Connection name: Inline connector Conductor connection Connection method: Spring-cage connection Conductor cross section rigid: 0.08 mm² ... 1.5 mm² Conductor cross section flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm Inline connector Connection method: Spring-cage connection Conductor cross section, rigid: 0.08 mm² ... 1.5 mm² Conductor cross section, flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -25°C ... 55°C Ambient temperature (storage/transport): -25°C ... 85°C Permissible humidity (operation): 75 % ... 85 % Permissible humidity (storage/transport): 75 % ... 85 % |
| Mounting | Mounting type: DIN rail mounting |
