| Notes | General: For wall cutouts of type D15 |
| Product properties | Type: D15 Product type: Cover plate Seal present: yes |

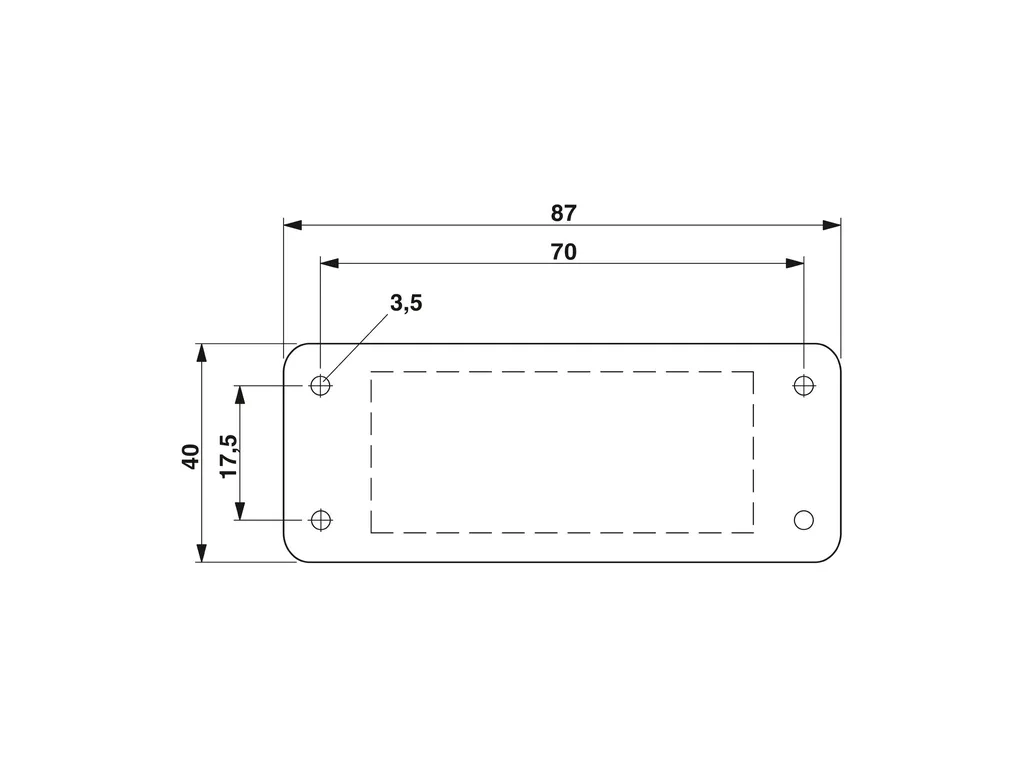

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/ba457cac6da5db4895dda872d41db667/-S204x204-FJPG Width: 40 mm Height: 3.5 mm Length: 87 mm Drill hole distance, horizontal: 70 mm Drill hole distance, vertical: 17.5 mm Hole diameter: 3.5 mm Installation dimensions Width of the assembly cutout: 24 mm Length of the assembly cutout: 58 mm |
| Material specifications | Material: PA Flammability rating according to UL 94: HB Seal material: PTS |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP54 Ambient temperature (operation): -20°C ... 100°C |
