| Notes | General: The potential of the EMC connector housing is isolated from the potential of the heavy connector. for CK 1,6...ED... crimp contacts (note in scope of delivery) Clamps for the clamping range of 3Ãmm - 6Ãmm and 6Ãmm - 9.5Ãmm |

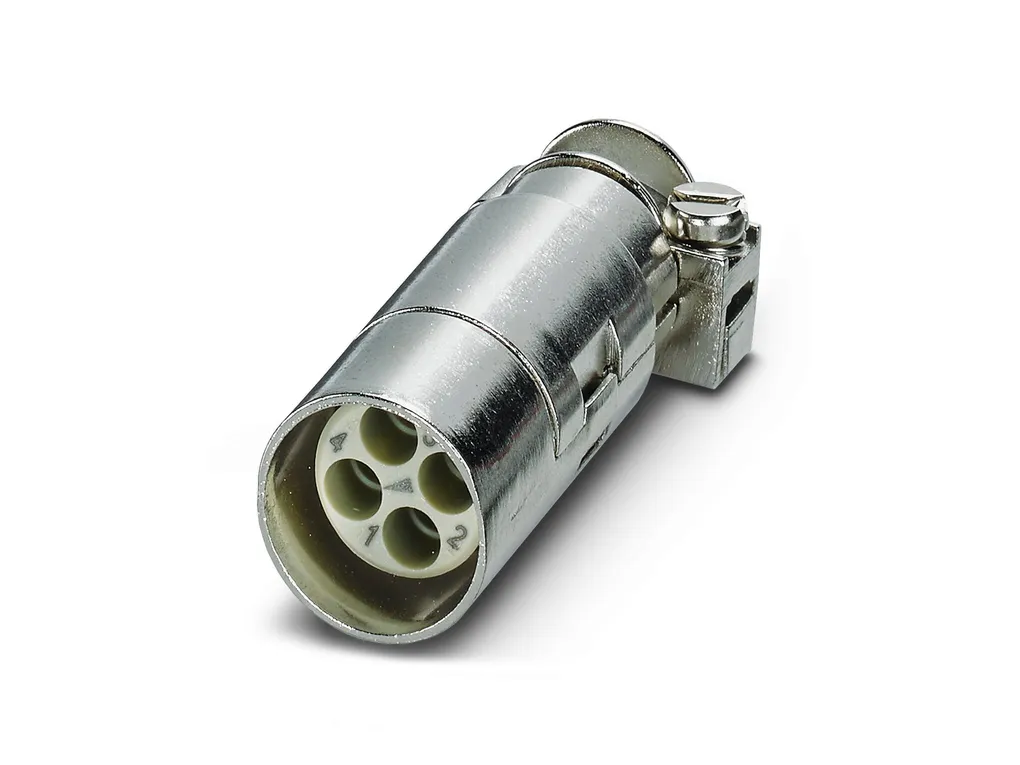

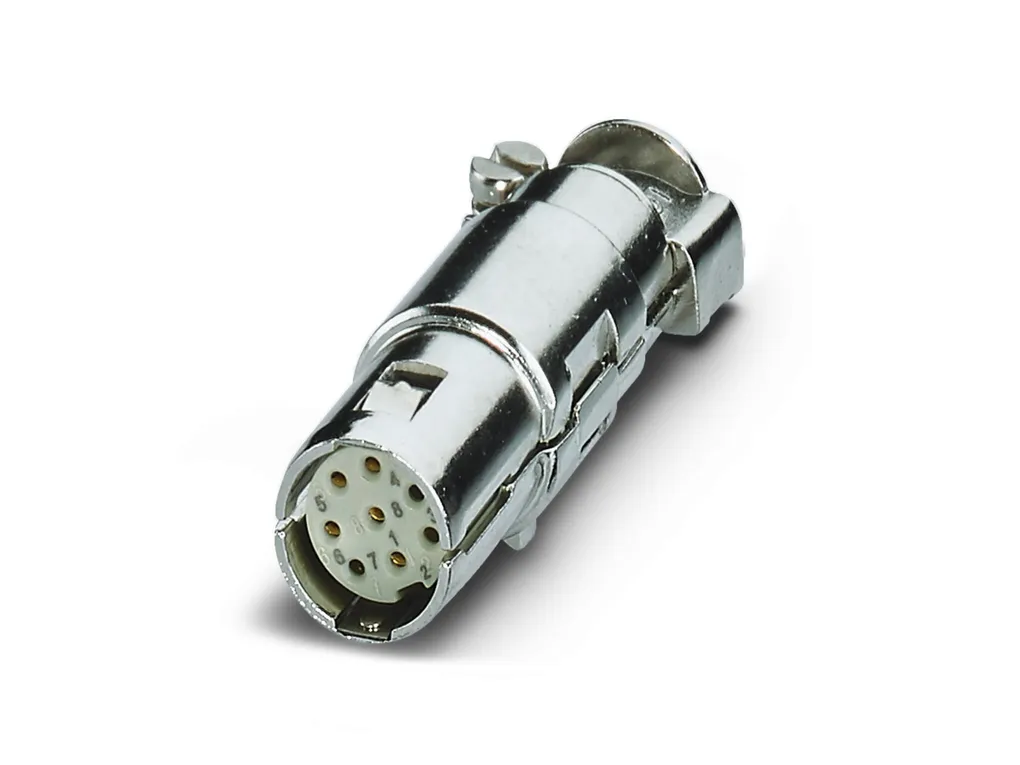

| Product properties | Product type: EMC insert, modular Number of positions: 4 Connection profile: 4 Contact numbering: 1 - 4 Application: Data/signal No. of power contacts: 0 No. of control contacts: 4 Contact material type: turned rolled Series: HC-M-EMV Shielded: yes Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Electrical properties | Rated voltage (III/3): 48 V Rated surge voltage: 0.8 kV Rated current: 10 A |
| Connection data | Connection technology Connection technology: Crimp connection Conductor connection Conductor cross section: 0.14 mm² ... 2.5 mm² Connection cross section AWG: 26 ... 14 Stripping length of the individual wire: 8 mm (6Ãmm with 2.5Ãmm²) |

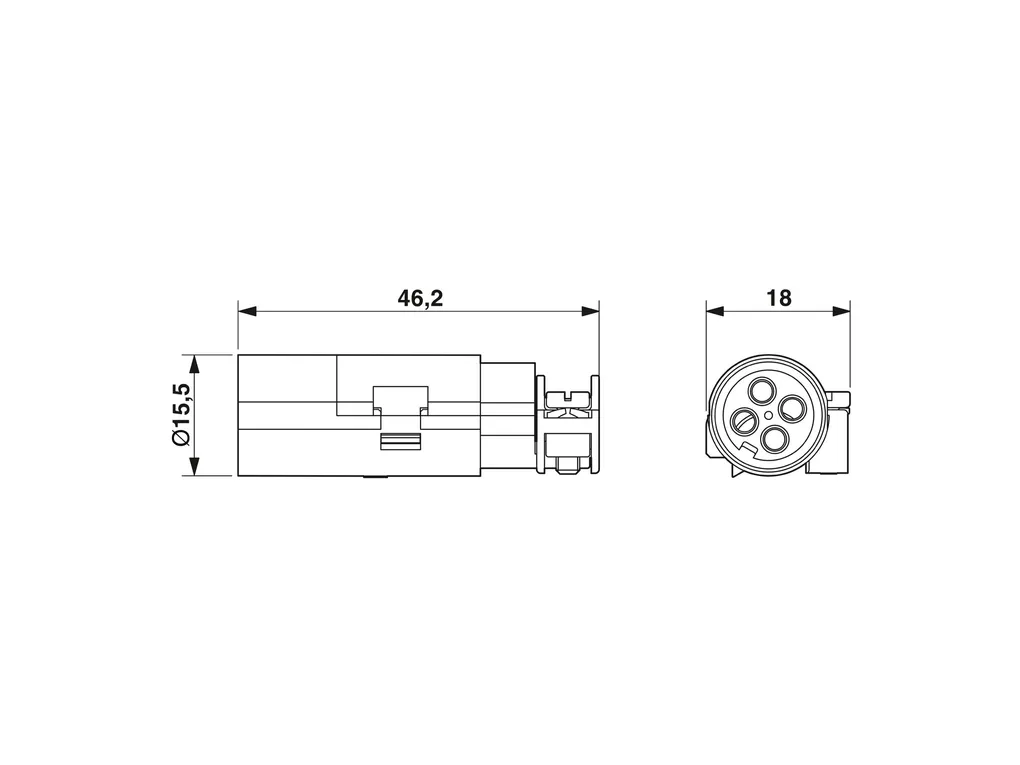

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/4bc0cfb91854b542a8c11a6be5239663/-S204x204-FJPG Width: 18 mm Height: 15.5 mm Length: 46 mm Mechanical characteristics Contact diameter: 1.6 mm |
| Material specifications | Flammability rating according to UL 94: V0 Contact material: Copper alloy Contact surface material: Ag (alternatively Au) Contact carrier material: PC |
| Cable/line | External cable diameter (): 3 mm ... 9.5 mm Wire diameter including insulation: 2.4 mm Stripping length of the individual wire: 8 mm (6Ãmm with 2.5Ãmm²) |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 500 |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -40°C ... 85°C |
| Mounting | Assembly instructions: Housing height ââ°¥ 72 mm. Plug-in connections may only be operated only when there is no load/voltage. For use in HC-M-EMV-MOD-ST plastic module, usable CK1,6-ED-... crimp contacts |
