| Notes | General: Order crimp contacts CUC-DSC-J1BAU-S/DSC... separately The potential of the EMC connector housing is isolated from the potential of the heavy connector. Clamps for the clamping range of 3Ãmm - 6Ãmm and 6Ãmm - 9.5Ãmm Can be used in Item No.: 1417376 HC-M-02-EMC-F |
| Product properties | Product type: EMC insert, modular Number of positions: 8 Connection profile: 8 Contact numbering: 1 - 8 Application: Data/signal No. of power contacts: 0 No. of control contacts: 8 Contact material type: turned Series: HC-M-EMV Shielded: yes Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Electrical properties | Rated voltage (III/3): 48 V Rated surge voltage: 0.8 kV Rated current: 5 A |
| Connection data | Connection technology Connection technology: Crimp connection Conductor connection Conductor cross section: 0.09 mm² ... 0.52 mm² Connection cross section AWG: 28 ... 20 |

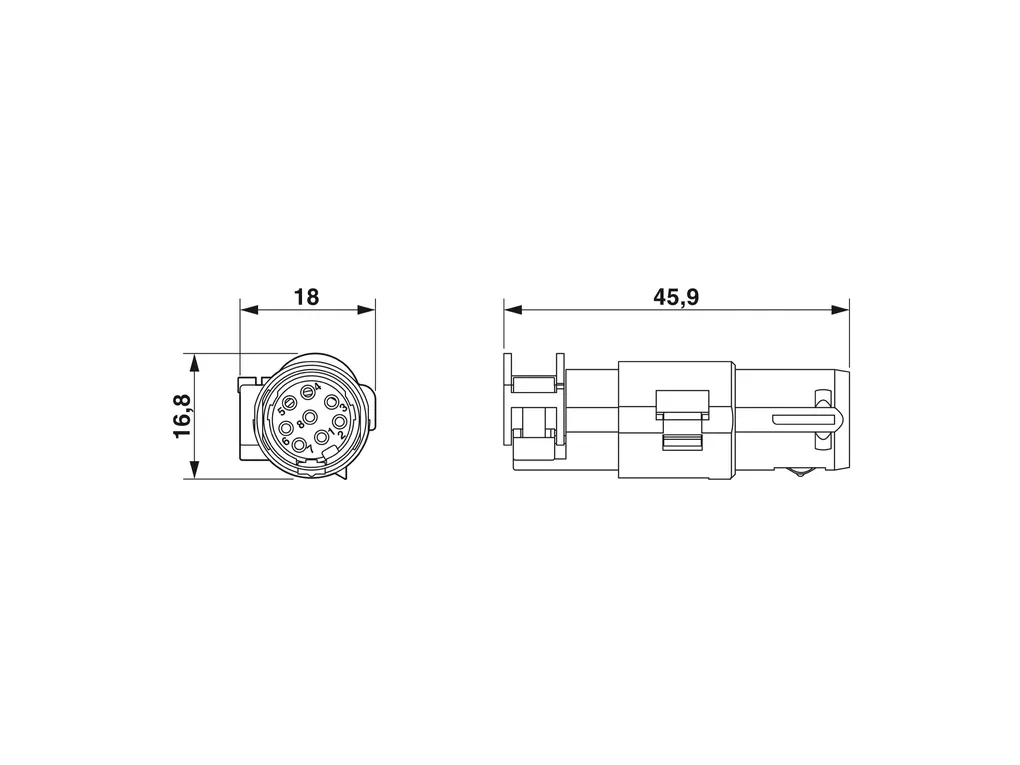

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/3647b42b311acc4bbf29e175ff0d5eb7/-S204x204-FJPG Height: 15.5 mm Length: 45.9 mm Mechanical characteristics Contact diameter: 1 mm |
| Material specifications | Material: Zinc alloy Flammability rating according to UL 94: V0 Contact material: Copper alloy Contact surface material: Au Contact carrier material: PC |
| Cable/line | External cable diameter (): 3 mm ... 9.5 mm |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 500 |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -40°C ... 85°C |
| Mounting | Assembly instructions: The round contact carrier can be separated in the middle for the purpose of assembling/disassembling contacts. Disassemble the connector from the plastic module using the tool, order no.: 1678635 HC-M-EMV-KON-EWZ |
