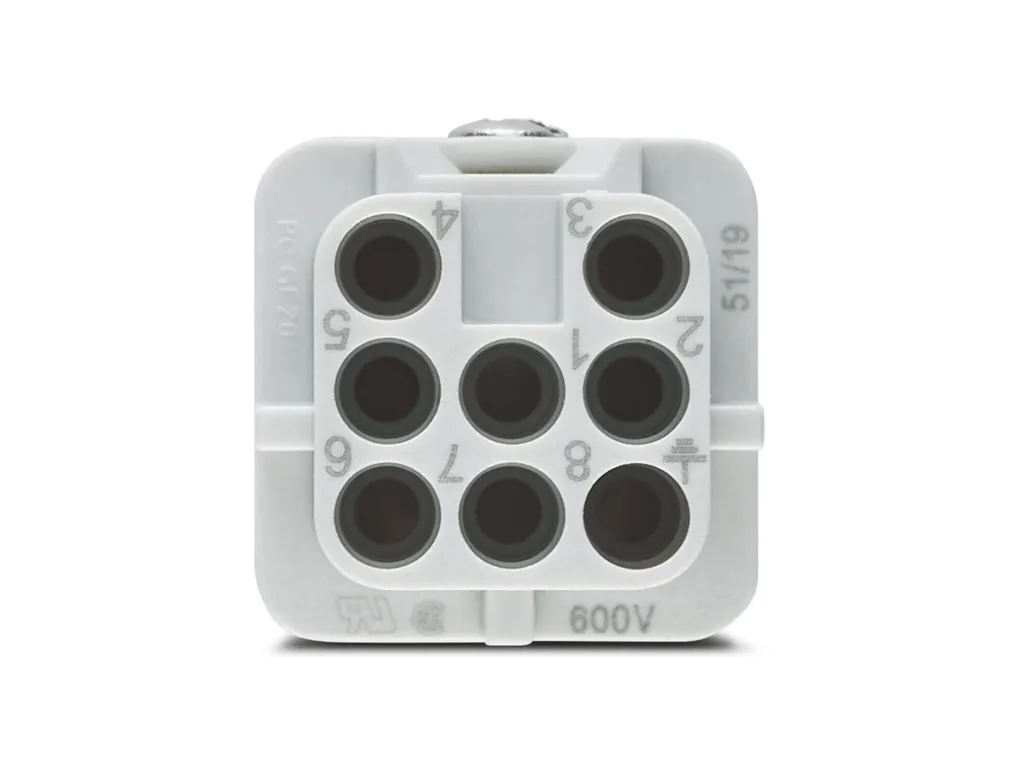

HC-D 8-I-CT-F - Contact insert

Contact insert, number of positions: 8, size: D7, number of connections per position: 1, Socket, Crimp connection, 42 V, 10 A, 0.14 mm²...2.5 mm²

Product Code: 1584363 Copia - Copy

Partner cod.: 1584363 Copia - Copy

PHOENIX CONTACT

Notes	General: For HC-D7 housing, crimp contacts CK1,6-ED (crimp contacts not included in scope of supply) Connectors may be operated only when there is no load/voltage. Product already includes one IP65 sealing screw
Mounting	Assembly instructions: To ensure correct use, installation in housing with IP54 protection or better is required
Product properties	Type: D7 Product type: Contact insert with a fixed no. of positions Number of positions: 8 Note number of positions: 8 Connection profile: 8 Contact numbering: 1 - 8 Number of connections per position: 1 Contact material type: turned rolled Series: HC-D Insulation characteristics Overvoltage category: III Degree of pollution: 3
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/a7bd8dcc4c0a2f4f8a9d4ab8faefcb6c/-S204x204-FJPG Width: 21 mm Height: 32 mm Length: 21 mm Mechanical characteristics Contact diameter: 1.6 mm
Connection data	Connection technology Connection technology: Crimp connection Number of connections per position: 1 Connection in acc. with standard: IEC / EN Conductor connection Conductor cross section: 0.14 mm² ... 2.5 mm² Connection cross section AWG: 26 ... 14 Tightening torque: 0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing) Stripping length of the individual wire: 8 mm (0.14Ãmm²Ã...Ã1.5Ãmm²) 6 mm (2.5Ãmm²)
Electrical properties	Rated voltage (III/3): 42 V Rated surge voltage: 0.8 kV Rated current: 10 A SCCR: 5 kA (UL 2237)
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢Ã¢°¥ 500
Material specifications	Flammability rating according to UL 94: V0 Contact material: Copper alloy Contact surface material: Ag (alternatively Au) Contact carrier material: PC Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINÃENÃ45545-2 (Risk level HL1 - HL3)
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -40°C ... 125°C (including heating up of contacts)
Standards and regulations	Constructional and testing regulations: DINÃVDEÃ0627/86 DINÃVDEÃ0110/02.79 DINÃVDEÃ0110-1/04.97 IEC 60664-1, DINÃIEC 60512 IEC 60352 Tests: DINÃVDEÃ0627/86 DINÃVDEÃ0110/02.79 DINÃVDEÃ0110-1/04.97 IEC 60664-1, DINÃIEC 60512 IEC 60352 Testing Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINÃENÃ45545-2 (Risk level HL1 - HL3)
