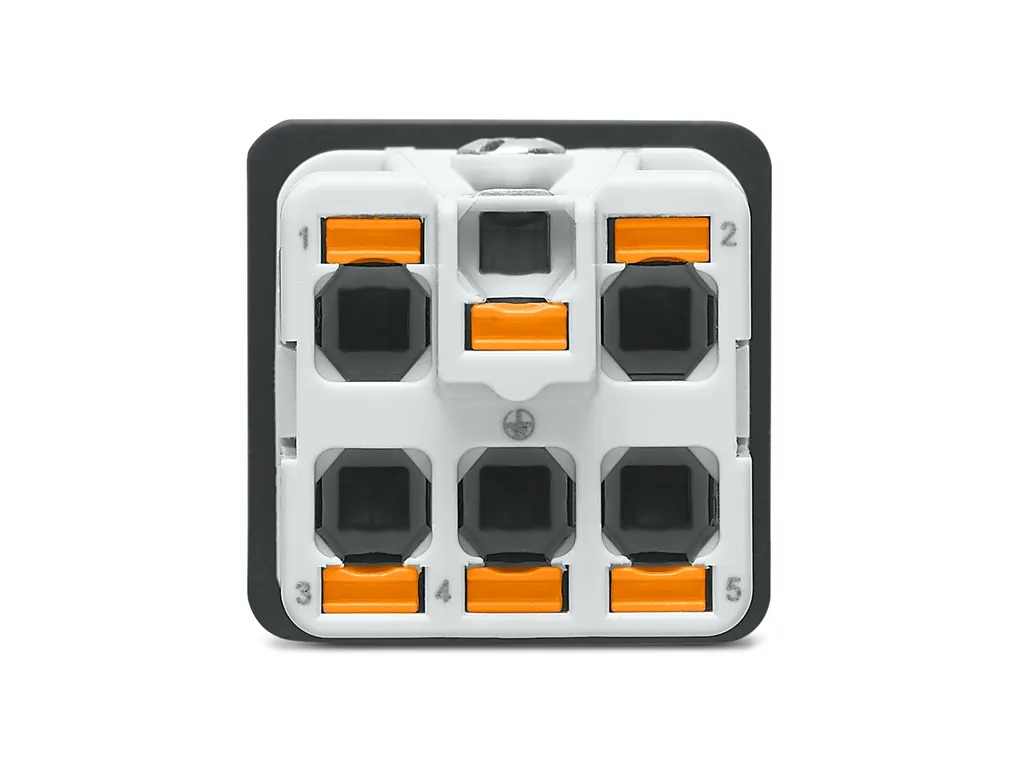

HC-Q05-I-PT-F - Contact insert

Contact insert, number of positions: 5+PE, size: D7, power contacts: 5, number of connections per position: 1, Socket, Push-in connection, 230 V, 16 A, 0.5 mm² ... 2.5 mm², application: Power

Product Code: 1013948 Copia - Copy

Partner cod.: 1013948 Copia - Copy

PHOENIX CONTACT

Notes	General: For housing design D7 Connectors may be operated only when there is no load/voltage.
Mounting	Assembly note: To ensure correct use, installation in housing with IP54 protection or better is required
Product properties	Product type: Contact insert with a fixed no. of positions Series: HC-Q Application: Power Type: D7 Number of positions: 5 Connection profile: 5+PE Contact numbering: 1 - 5 Number of connections per position: 1 No. of power contacts: 5 Contact material type: turned Data management status Article revision: 00 Insulation characteristics Overvoltage category: III Degree of pollution: 3
Dimensions	Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/161908/full/b1500?format=jpg Width: 21 mm Height: 39.6 mm Length: 21 mm Mechanical characteristics Contact diameter: 2.5 mm
Connection data	Connection technology Connection technology: Push-in connection Number of connections per position: 1 Connection in acc. with standard: IEC / EN Conductor connection Conductor cross section: 0.5 mm² ... 2.5 mm² (The cross section specification refers to the geometric cross section of the cable used) Connection cross section AWG: 20 ... 14 Connection cross section PE contact: 0.5 mm² ... 2.5 mm² Connection cross section PE contact AWG: 20 ... 14 Tightening torque: 0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing) Stripping length of the individual wire: 10 mm
Electrical properties	Rated voltage (III/3): 230 V (Conductor-PE) 400 V (Conductor-Conductor) Rated surge voltage (III/3): 4 kV Rated current: 16 A
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢Ã¢°¥ 500
Material specifications	Flammability rating according to UL 94: V0 Contact surface material: Ag Contact carrier material: PC Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -40 °C ... 125 °C (including heating up of contacts)
Standards and regulations	Testing Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)
