| Product properties | Type: D50 Product type: Housing with locking latch Product family: HC-STA-D Application: Standard No. of cable outlets: 1 Type of the screw connection: 1x Pg21 Housing type: Sleeve housing Cable outlet: lateral Pg screw connection: Pg21 |

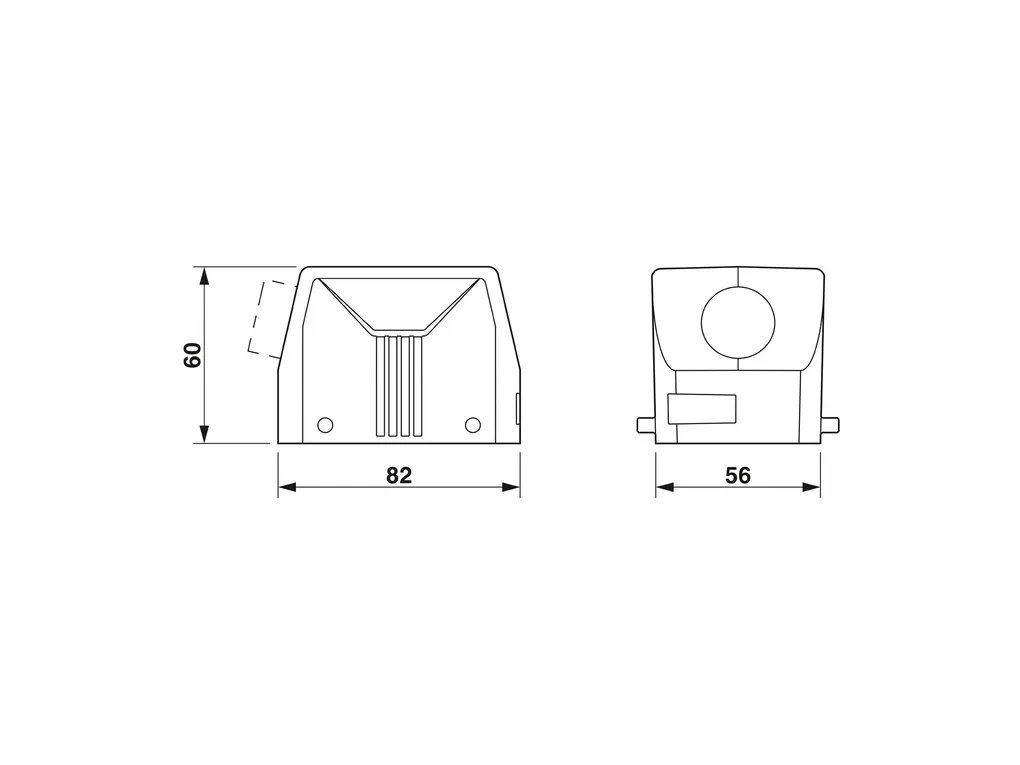

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/e23621d423feaf43a385d6ddfddfb1ff/-S204x204-FJPG Width: 56 mm Height: 60 mm Length: 82 mm |
| Material specifications | Housing surface material: uncoated Impact strength: IK08 Housing material: Die-cast aluminum, salt water resistant |
| Mechanical properties | Mechanical data Type of the screw connection: 1x Pg21 Locking type: Pin |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP67 Impact strength: IK08 Ambient temperature (operation): -40°C ... 125°C |
