1424398 PHOENIX CONTACT - Technology Bsa

HC-STA-D25-SLWSC-2SSP16-EL-AL - Housing

Box mounting bases D25, with single locking latch, material: Die-cast aluminum, salt water resistant, protective cover material: PC, cable outlets: 2, lateral, 2x Pg16, height: 57 mm, cable gland: none, protective cover: yes, Standard

Product Code: 1424398 Copia - Copy

Partner cod.: 1424398 Copia - Copy

PHOENIX CONTACT

Product properties	Type: D25 Product type: Housing with locking latch Product family: HC-STA-D Application: Standard No. of cable outlets: 2 Type of the screw connection: 2x Pg16 Housing type: Box mounting bases Protective cover: yes Cable outlet: lateral Pg screw connection: none

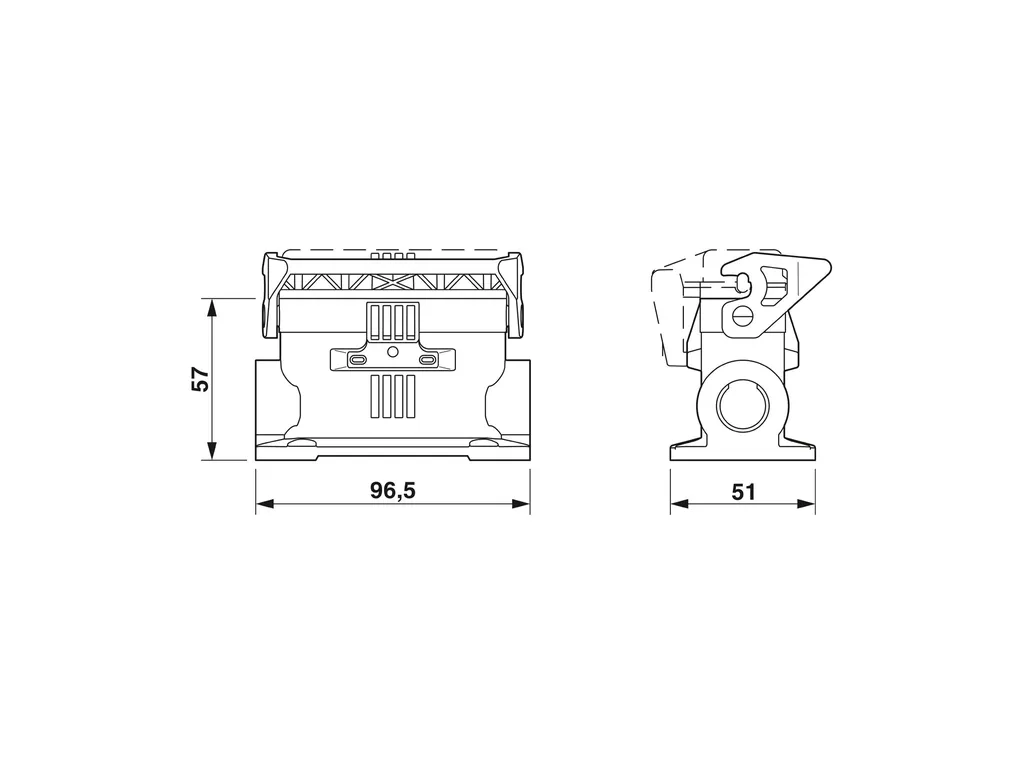

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/76c33f010f0084468c79a26962acc35d/-S204x204-FJPG Width: 51 mm Height: 57 mm Length: 80 mm Hole diameter: 4.5 mm
Material specifications	Flammability rating according to UL 94: V0 (Interlock) V0 (Protective cover) Housing surface material: uncoated Material, protective cover: PC Locking latch material: PA Impact strength: IK08 Housing material: Die-cast aluminum, salt water resistant
Mechanical properties	Mechanical data Type of the screw connection: 2x Pg16 Locking type: Latch
Mounting	Assembly instructions: One opening is sealed with a plastic filler plug and can be opened using a screwdriver.
Environmental and real-life conditions	Ambient conditions Degree of protection: IP66 (with locked protective cover) IP67 (when plugged in) Impact strength: IK08 Ambient temperature (operation): -40°C ... 125°C
