| Notes | General: For contact inserts HC-D15, A10 |

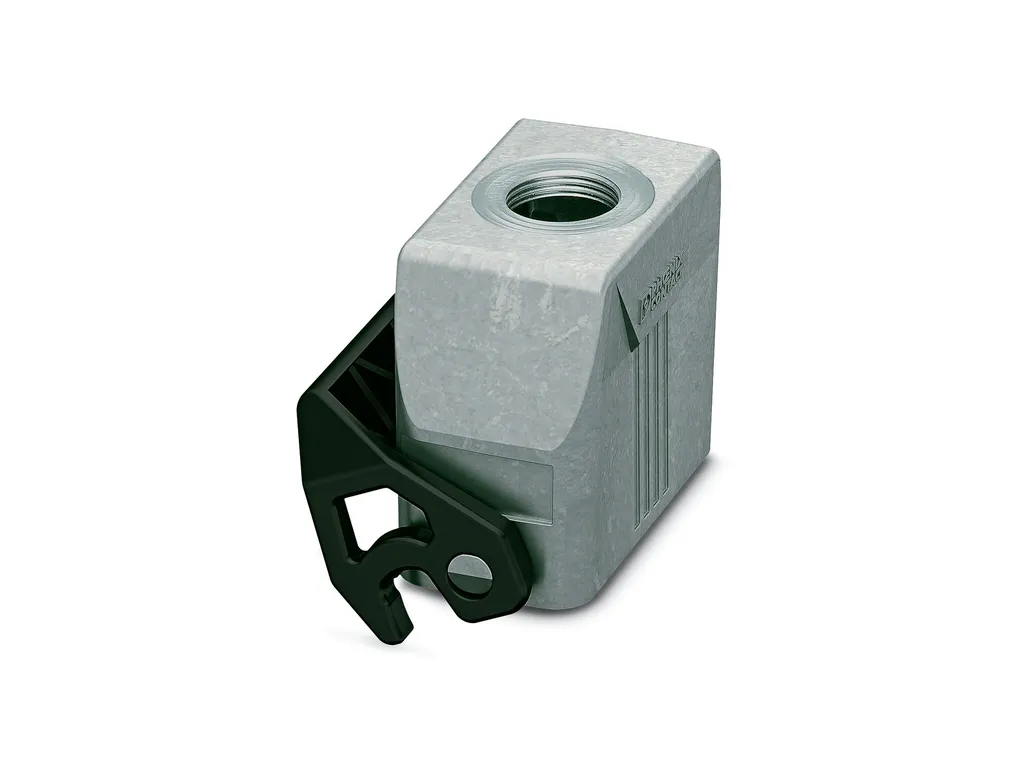

| Product properties | Type: D15 Product type: Housing with locking latch Application: Standard No. of cable outlets: 1 Type of the screw connection: 1x M20 Housing type: Coupling housings Cable outlet: straight Pg screw connection: none |

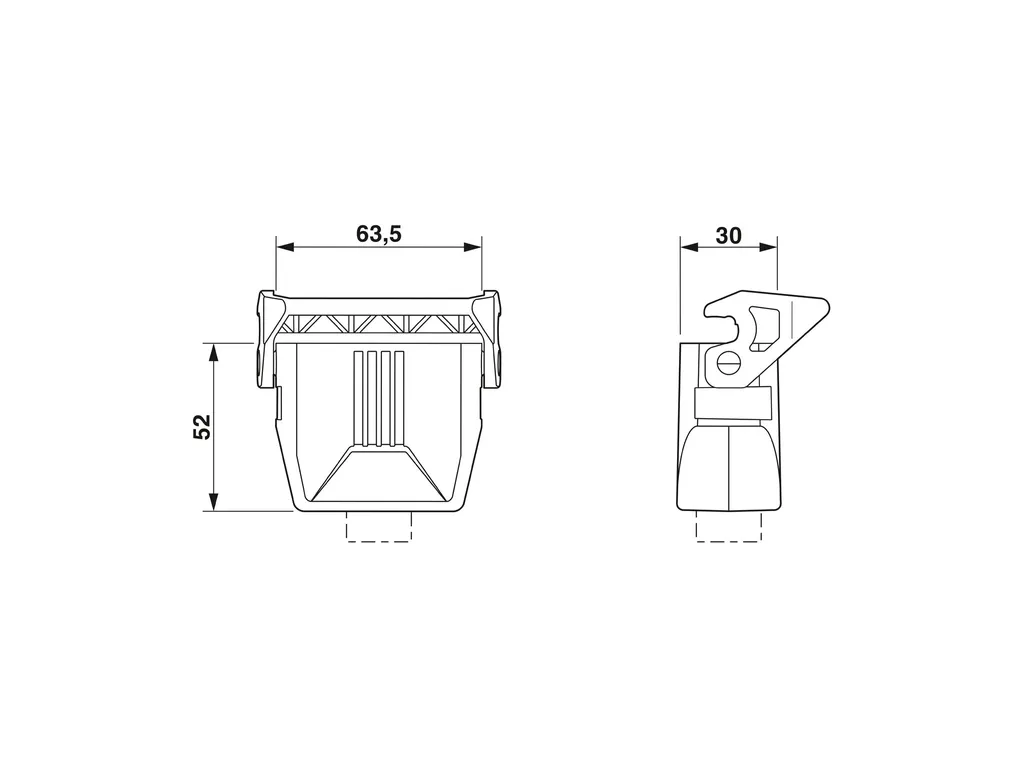

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/4a9b61a24984d04abf05844e69c749f3/-S204x204-FJPG Width: 30 mm Height: 52 mm Length: 63.5 mm |
| Material specifications | Flammability rating according to UL 94: V0 (Interlock) Housing surface material: uncoated Locking latch material: PA Impact strength: IK08 Housing material: Die-cast aluminum, salt water resistant |
| Mechanical properties | Mechanical data Type of the screw connection: 1x M20 Locking type: Latch |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP67 Impact strength: IK08 Ambient temperature (operation): -40°C ... 125°C |
