| Notes | General: For contact inserts HC-D15, A10 |

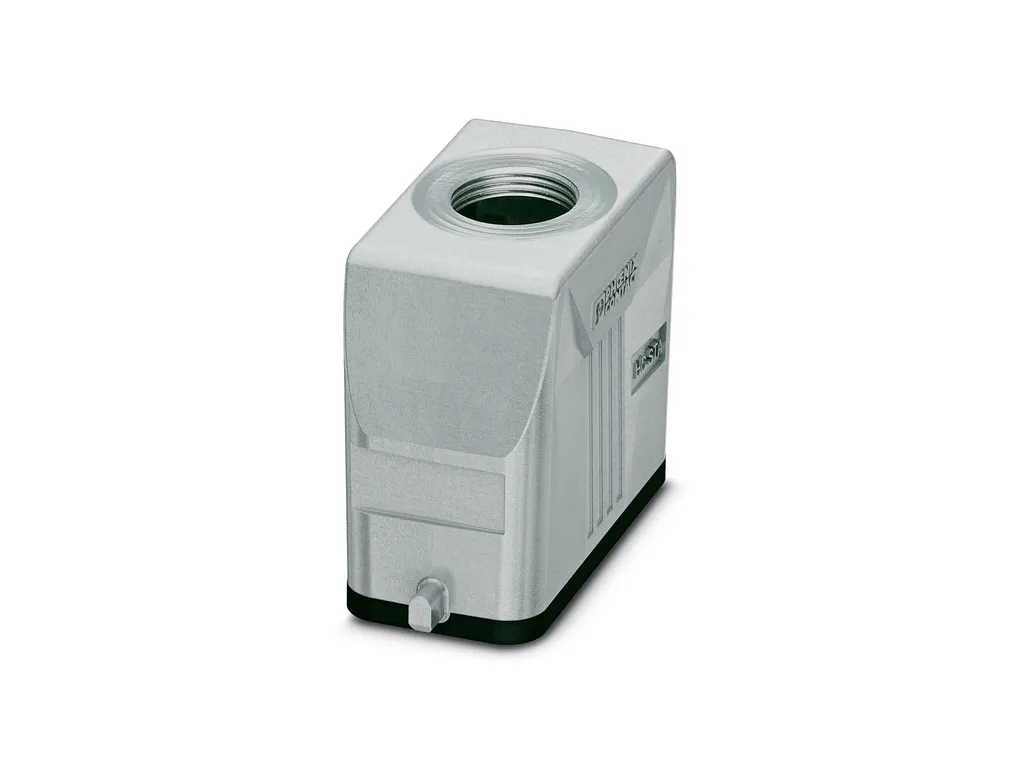

| Product properties | Type: D15 Product type: Housing with locking latch Application: Standard No. of cable outlets: 1 Type of the screw connection: 1x Pg13,5 Housing type: Sleeve housing Cable outlet: straight Pg screw connection: none |

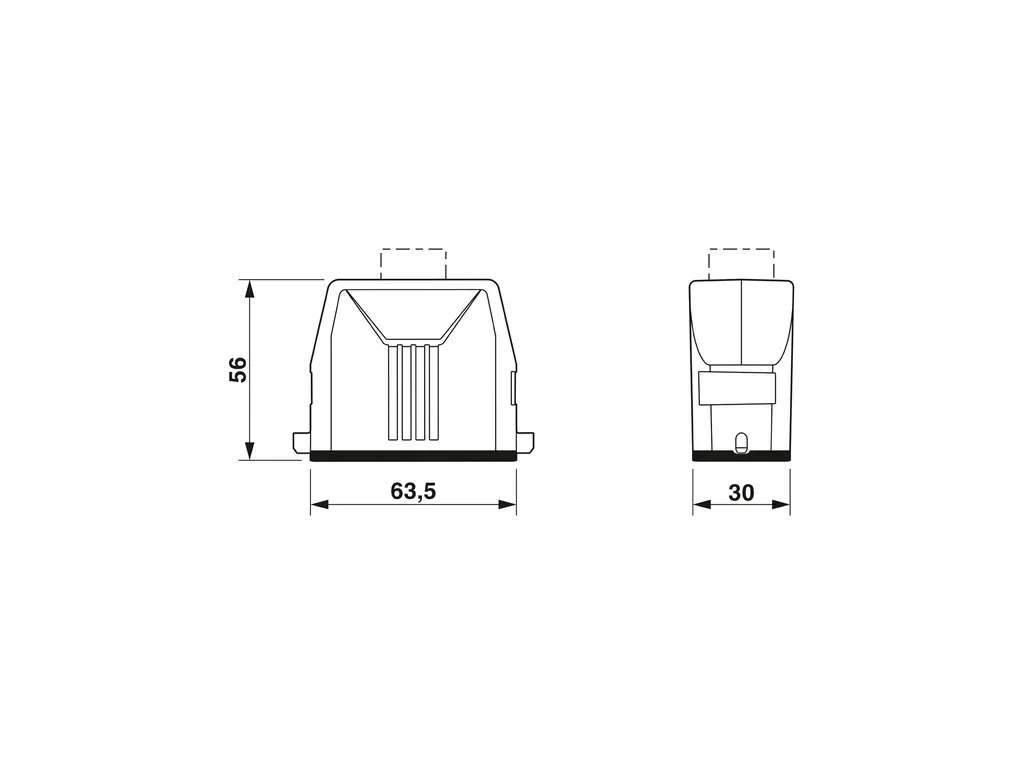

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/2ea98e3f8199d945b871603897986ecb/-S204x204-FJPG Width: 30 mm Height: 56 mm Length: 63.5 mm |
| Material specifications | Seal material: NBR, conductive Housing surface material: uncoated Impact strength: IK08 Housing material: Die-cast aluminum, salt water resistant |
| Mechanical properties | Mechanical data Type of the screw connection: 1x Pg13,5 Locking type: Pin |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP67 Impact strength: IK08 Ambient temperature (operation): -40°C ... 125°C |
