| Product properties | Type: D25 Product type: Housing with locking latch Product family: HC-STA-D Application: Standard No. of cable outlets: 2 Type of the screw connection: 2x M25 Housing type: Box mounting bases Cable outlet: lateral Pg screw connection: none |

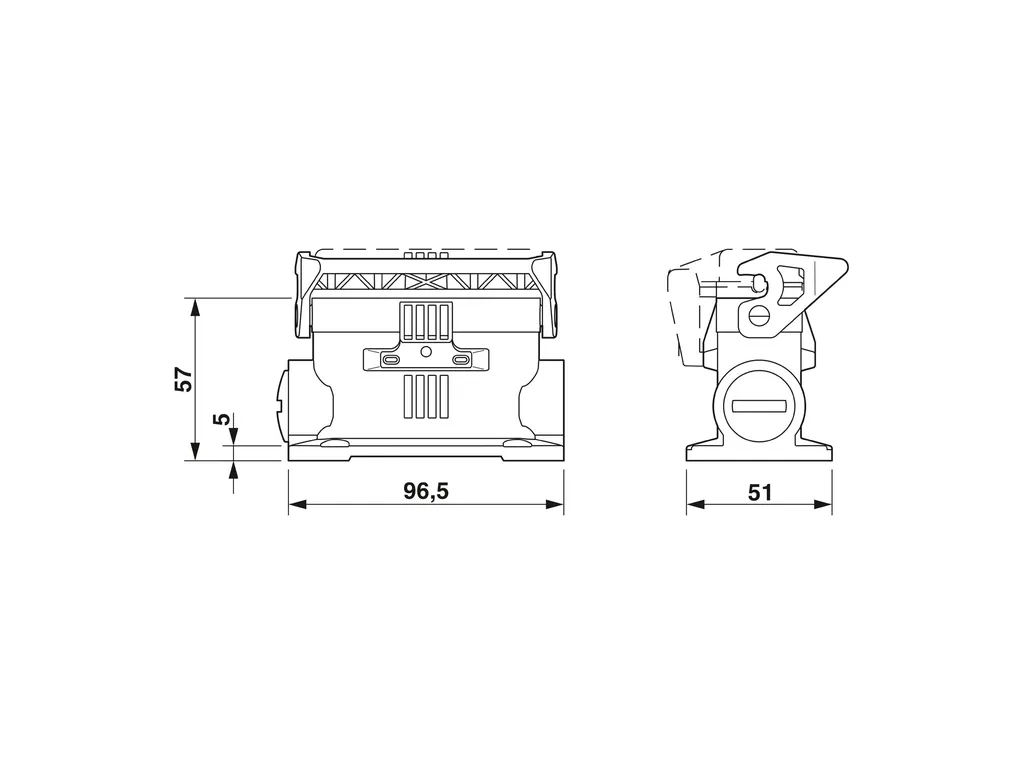

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/e56827d90dfd5a4fa25214c930991a46/-S204x204-FJPG Width: 51 mm Height: 57 mm Length: 80 mm Hole diameter: 4.5 mm |
| Material specifications | Flammability rating according to UL 94: V0 (Interlock) Housing surface material: uncoated Locking latch material: PA Impact strength: IK08 Housing material: Die-cast aluminum, salt water resistant |
| Mechanical properties | Mechanical data Type of the screw connection: 2x M25 Locking type: Latch |
| Mounting | Assembly instructions: One opening is sealed with a plastic filler plug and can be opened using a screwdriver. |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP67 Impact strength: IK08 Ambient temperature (operation): -40°C ... 125°C |
