| Notes | General: for B10, BB18, DD42, HV3 contact inserts and B10 module frame Protection against electric shock must be ensured by the user. The continuity of the PE connection must be verified and satisfied by the user. The PE connection must be implemented equilaterally. |

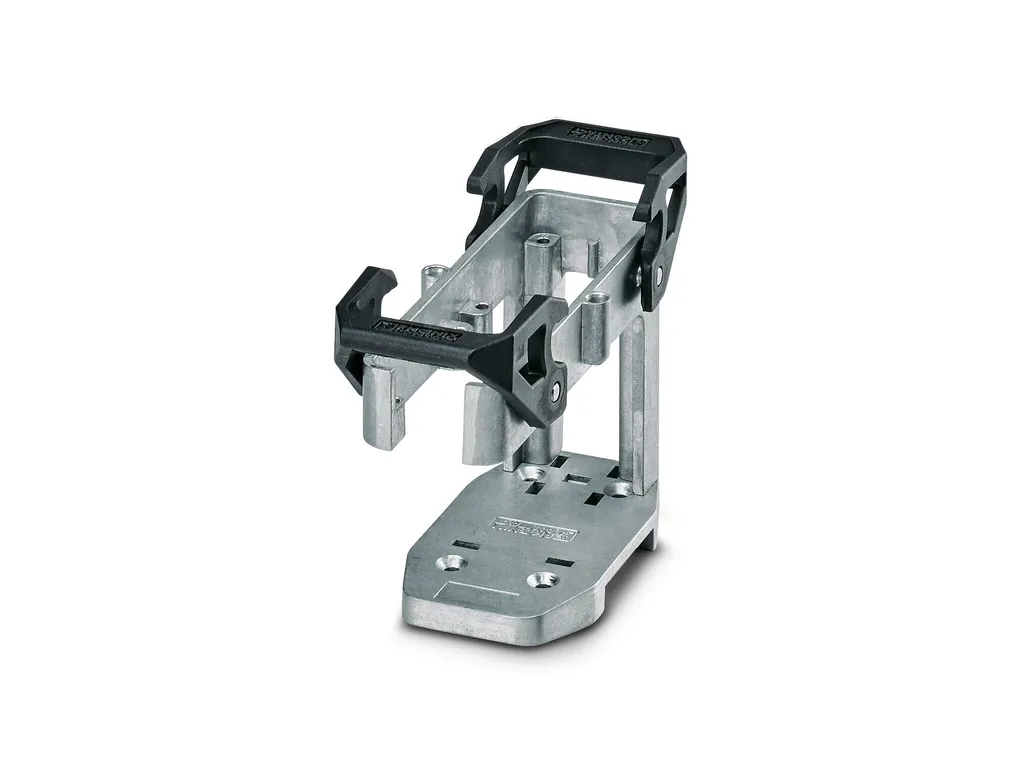

| Product properties | Type: B10 Product type: DIN rail mounting frame Housing type: DIN rail mounting frame Protective cover: no Series: HC-CIF-PL Pg screw connection: none |

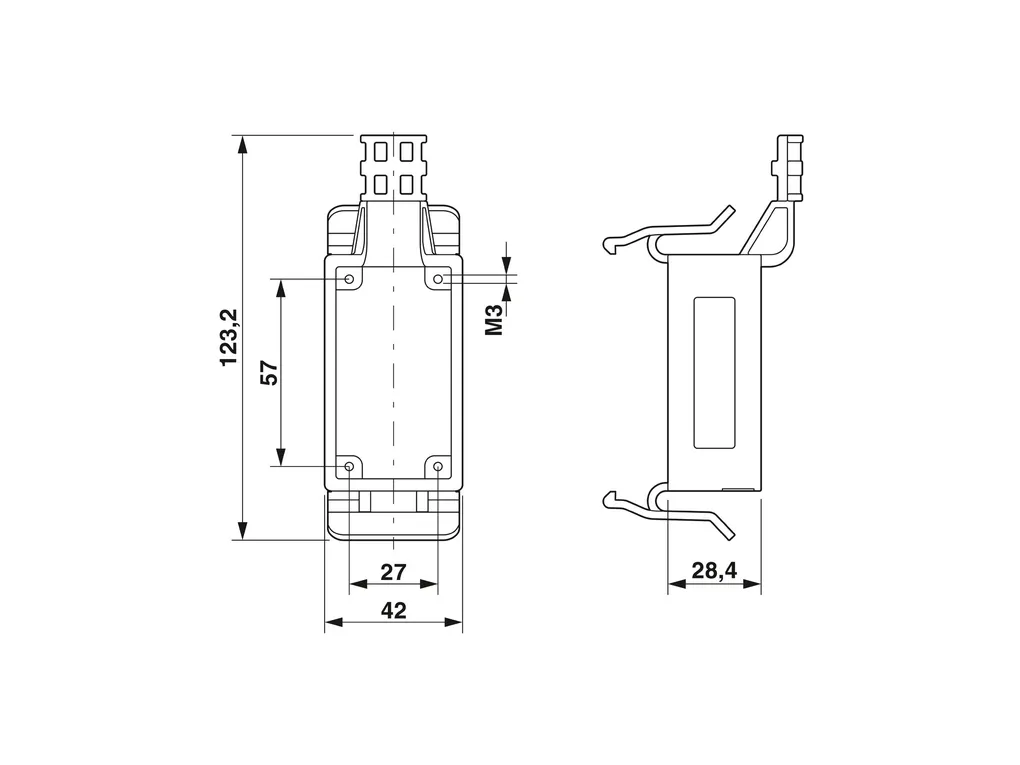

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/53dff4c782850a49b8ae9ab65e61d465/-S204x204-FJPG Width: 42 mm Height: 61 mm Length: 125 mm |
| Material specifications | Material: PC Flammability rating according to UL 94: V0 |
| Mechanical properties | Mechanical data Locking type: Clip |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -40°C ... 125°C |
| Mounting | Assembly instructions: To ensure correct use, installation in an IP-protected space is required |
