PHOENIX CONTACT 1404215
PHOENIX CONTACT 1404215
PHOENIX CONTACTNot available

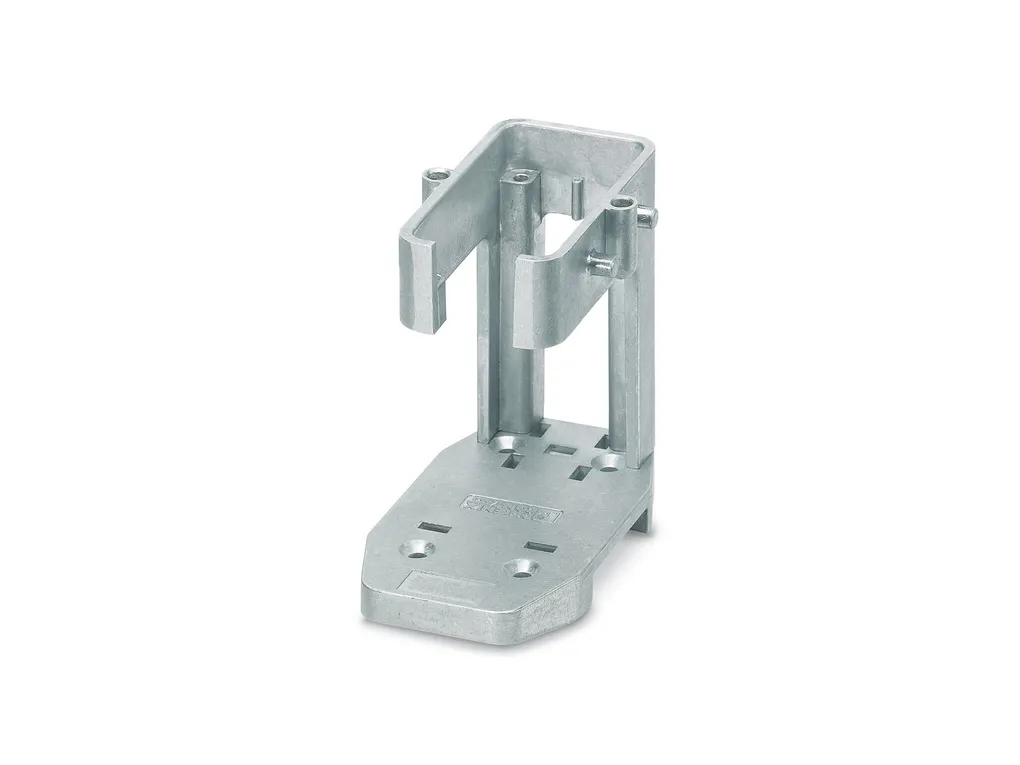

HC-CIF-2B6-HFFD-WH-AL - DIN rail mounting frame

HEAVYCON DIN rail mounting frame, upper part for double locking latch, for HC-CIF...BFWD.. lower parts with double locking latch or for HC-CIF...BFFD.. lower parts, for two type B6 contact inserts, with M4 screws with 3mm Allen screw head, for NS35/7,5 DIN rails
Product Code: 1404215
Partner cod.: 1404215
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Download
Tecnichal data
Product propertiesType: For 2xB6
Product type: DIN rail mounting frame
Fixing screws: M4 with Allen screw, wrench size: 3 mm
DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/cc4683cdddde7d4d86d022df66014507/-S204x204-FJPG
Width: 56 mm
Height: 49 mm
Length: 150.2 mm
Material specificationsMaterial: Cast aluminum, uncoated
Locking latch material: Steel, galvanized
Environmental and real-life conditionsAmbient conditions
Ambient temperature (operation): -40°C ... 125°C
MountingAssembly instructions: For screw locking: M4, 3 mm Allen screw, 2 Nm tightening torque
Fixing screws: M4 with Allen screw, wrench size: 3 mm
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_03609.pdf

Manufacturer_declaration_03616.pdf

Technical_drawing_12364.pdf
