1420050 PHOENIX CONTACT - Technology Bsa

HC-ADV-B06-HHWH-BLANK-ELC-AL - Housing

Sleeve housing B6, with screw locking, material: Die-cast aluminum, salt water resistant, variable, height: 93.7 mm, cable gland: none, Offshore/EMC, Without thread opening for screw connection, conductive seal (EMC properties)

Product Code: 1420050 Copia - Copy

Partner cod.: 1420050 Copia - Copy

PHOENIX CONTACT

Notes	General: For contact inserts HC-B6, BB10, DD24, M
Product properties	Type: B6 Product type: Housing with screw locking Product family: HC-ADV Application: Offshore/EMC Fixing screws: M6 (screw head: 5 mm Allen screw) Housing type: Sleeve housing Shielded: yes Cable outlet: variable Pg screw connection: none
Connection data	Tightening torque: 3 Nm ... 5 Nm (for M6 mounting screws on the sleeve housing)

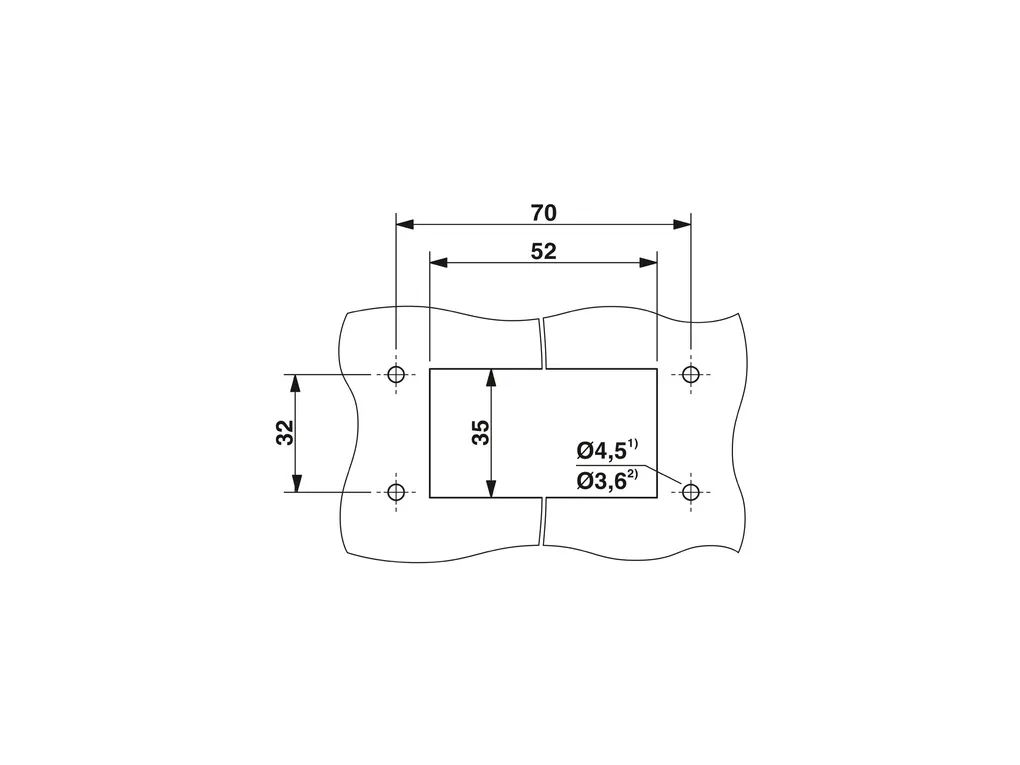

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/5cc3a657d2255b44b4b6c1cb5f1e24d1/-S204x204-FJPG Width: 57 mm Height: 93.7 mm Length: 92 mm Installation dimensions Width of the assembly cutout: 35 mm Length of the assembly cutout: 52 mm
Material specifications	Seal material: NBR, conductive Housing surface material: uncoated Locking latch material: Stainless steel Impact strength: IK09 Housing material: Die-cast aluminum, salt water resistant
Environmental and real-life conditions	Ambient conditions Degree of protection: IP66 IP68 (0.2Ãbar/24Ãh) IP69 (ISOÃ20653:2013-02) Enclosure rating (NEMA): 4 (ULÃ50e) 4X (ULÃ50e) 12 (ULÃ50e) Impact strength: IK09 Ambient temperature (operation): -40°C ... 125°C
Mechanical properties	Mechanical data Locking type: Screw
Mounting	Assembly instructions: In order to guarantee that the protective conductor contact functions even when plugged in at an angle, the two panel-mount flanges must have sufficient electrical contact with the metal mounting panel. Fixing screws: M6 (screw head: 5 mm Allen screw)
