| Notes | General: For contact inserts HC-B10, BB18, DD42, M, K8/24 |

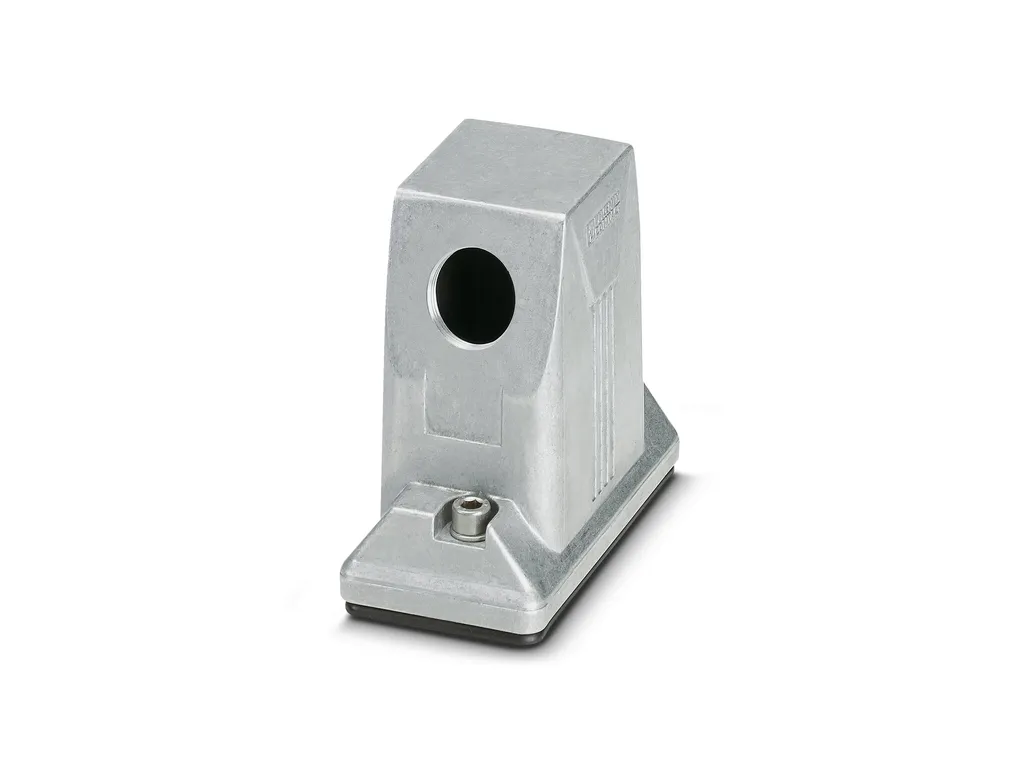

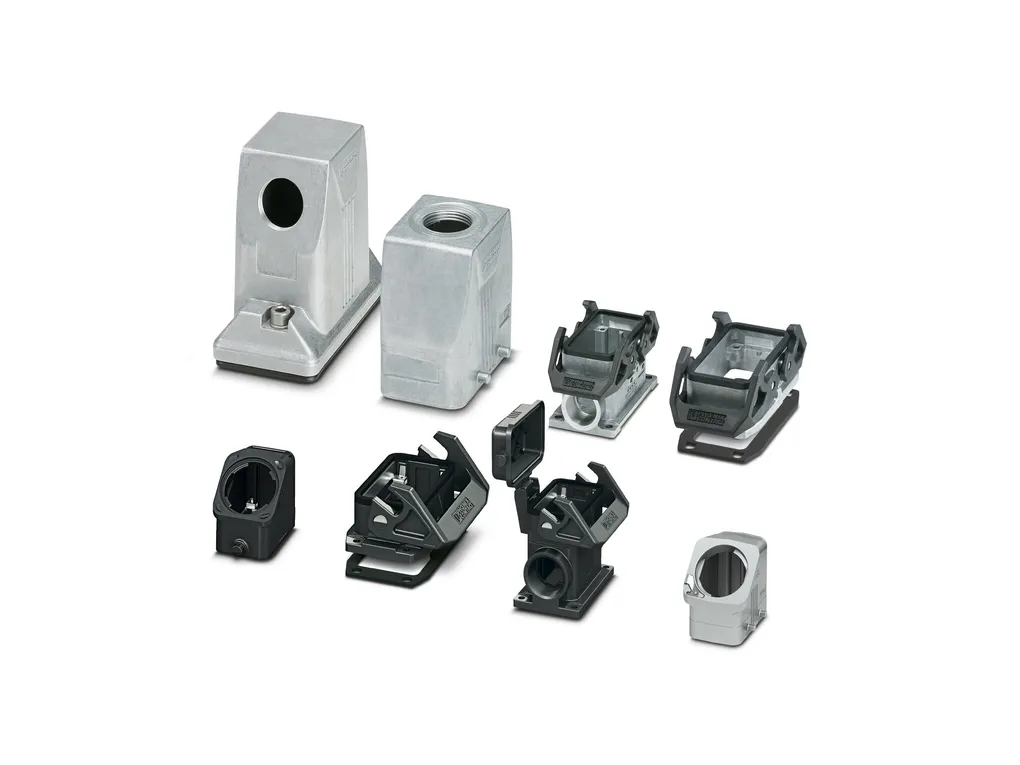

| Product properties | Type: B10 Product type: Housing with screw locking Product family: HC-ADV Application: Offshore/EMC No. of cable outlets: 1 Type of the screw connection: 1x M25 Fixing screws: M6 (screw head: 5 mm Allen screw) Housing type: Sleeve housing Cable outlet: lateral Pg screw connection: none |
| Connection data | Tightening torque: 3 Nm ... 5 Nm (for M6 mounting screws on the sleeve housing) |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/9b0bee30113dbd4fbc49e0148b4b34d5/-S204x204-FJPG Width: 57 mm Height: 93.7 mm Length: 105 mm Installation dimensions Width of the assembly cutout: 35 mm Length of the assembly cutout: 65 mm |
| Material specifications | Seal material: NBR, conductive Housing surface material: uncoated Locking latch material: Stainless steel Impact strength: IK09 Housing material: Die-cast aluminum, salt water resistant |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP68 (0.2Ãbar/24Ãh) IP69 (ISOÃ20653:2013-02) Enclosure rating (NEMA): 4 (ULÃ50e) 4X (ULÃ50e) 12 (ULÃ50e) Impact strength: IK09 Ambient temperature (operation): -40°C ... 125°C |
| Mechanical properties | Mechanical data Type of the screw connection: 1x M25 Locking type: Screw |
| Mounting | Assembly instructions: In order to guarantee that the protective conductor contact functions even when plugged in at an angle, the two panel-mount flanges must have sufficient electrical contact with the metal mounting panel. Fixing screws: M6 (screw head: 5 mm Allen screw) |
