HC-EVO-B16-HHWD-EL-AL - Housing

HEAVYCON EVO sleeve housing, EMC version, without powder coating, with bayonet flange for EVO screw connection, B16, with double locking latch, height: 88mm, without EVO screw connection.

Product Code: 1411462 Copia - Copy

Partner cod.: 1411462 Copia - Copy

PHOENIX CONTACT

Notes	General: For contact inserts HC-B16, BB32, D40, DD72, HS6, M, K
Product properties	Type: B16 Product type: Housing with locking latch Application: Standard No. of cable outlets: 1 Housing type: Sleeve housing Cable outlet: straight Pg screw connection: none

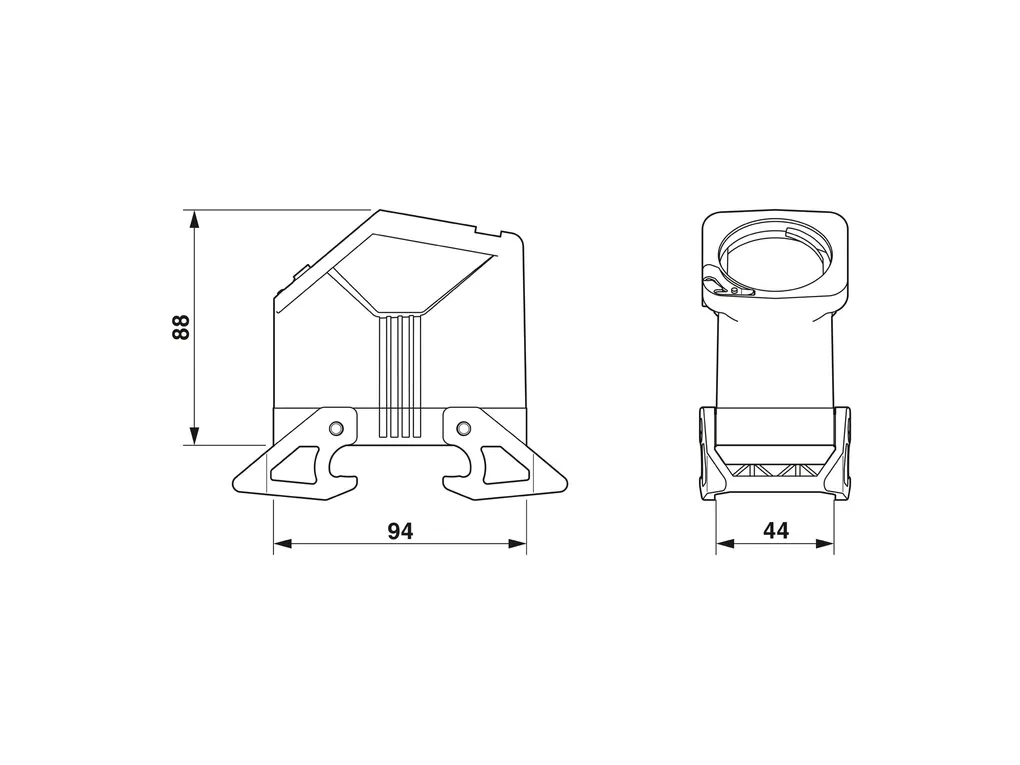

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/588923a7cbe97a4e87cf37da4a7a28fa/-S204x204-FJPG Width: 44 mm Height: 88 mm Length: 94 mm
Material specifications	Flammability rating according to UL 94: V0 (Interlock) Housing surface material: uncoated Locking latch material: PA Impact strength: IK09 Housing material: Die-cast aluminum, salt water resistant
Mechanical properties	Mechanical data Locking type: Latch
Mounting	Assembly instructions: The sleeve base housing must be supplemented with the EVO screw connection. The EVO screw connection is available in 4 sizes. It enables the creation of a straight or a lateral cable outlet. The EVO screw connection is assembled by hand or using a pipe wrench.
Environmental and real-life conditions	Ambient conditions Degree of protection: IP66 IP67 Enclosure rating (NEMA): 4 (ULÃ50e) 4X (ULÃ50e) 12 (ULÃ50e) Impact strength: IK09 Ambient temperature (operation): -40°C ... 125°C
