| Product properties | Product type: Cable gland with bayonet locking Application: for greater strain relief No. of conductors: 1 Type of the screw connection: M40 Shielded: no |

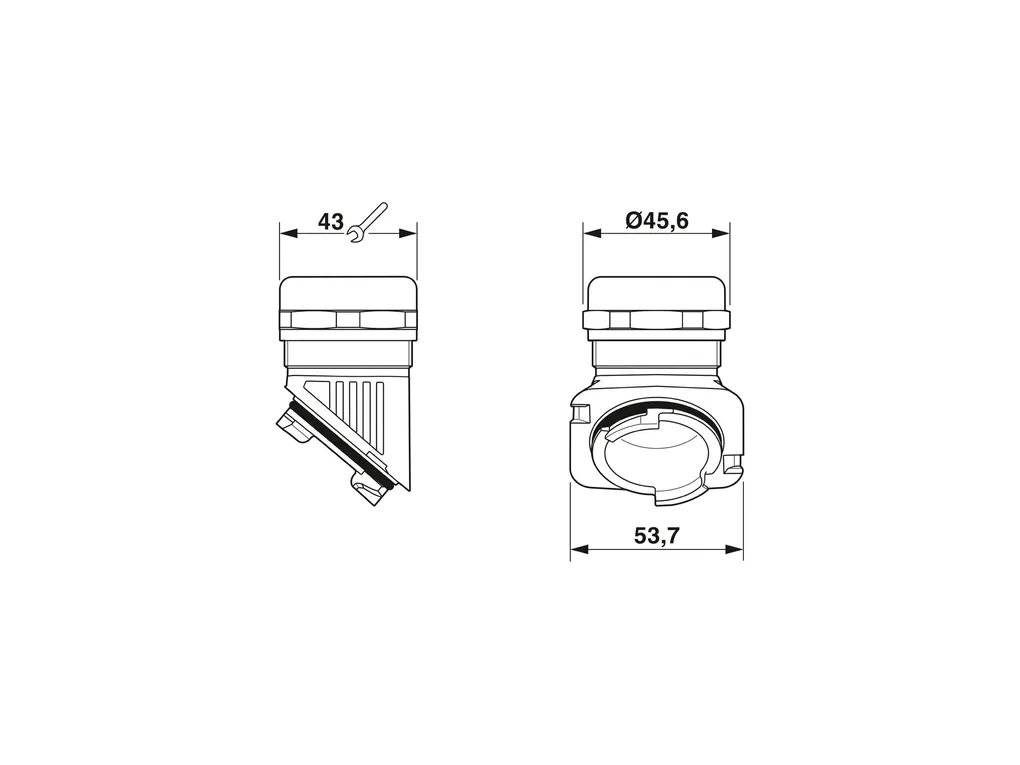

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/94590046a45b604683acf03386cb7e5e/-S204x204-FJPG Wrench size, union nut: 43 mm |
| Material specifications | Color: aluminum Material: Brass, nickel-plated Seal material O-ring: NBR Seal material Cable seal: NBR Material for screw connection: Aluminum Housing material: Die-cast aluminum, corrosion resistant |
| Cable/line | External cable diameter (Cable 1): 19 mm ... 27 mm Tightening torque, union nut: 10.00 Nm |
| Mechanical properties | Mechanical data Type of the screw connection: M40 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP67 Enclosure rating (NEMA): 4 (ULÃ50e) 4X (ULÃ50e) 12 (ULÃ50e) Ambient temperature (operation): -40°C ... 125°C (static) |
