| Product properties | Product type: Data cable preassembled Sensor type: Ethernet Number of positions: 8 No. of cable outlets: 1 Number of slots: 1 Shielded: yes Cable outlet: straight Insulation characteristics Degree of pollution: 2 |
| Electrical properties | Transmission medium: Copper Transmission speed: 1 Gbps Wave impedance: 100 é |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 200 |
| Material specifications | Flammability rating according to UL 94: V2 Outer sheath, material: PUR Conductor material: Bare Cu litz wires |
| Connector | Connection 1 Type: Plug straight RJ45 Material: Metal Degree of protection: IP67 Number of positions: 8 Locking type: Push Pull Connection 2 Type: Plug straight RJ45 Material: Plastic Number of positions: 8 Degree of protection: IP20 |

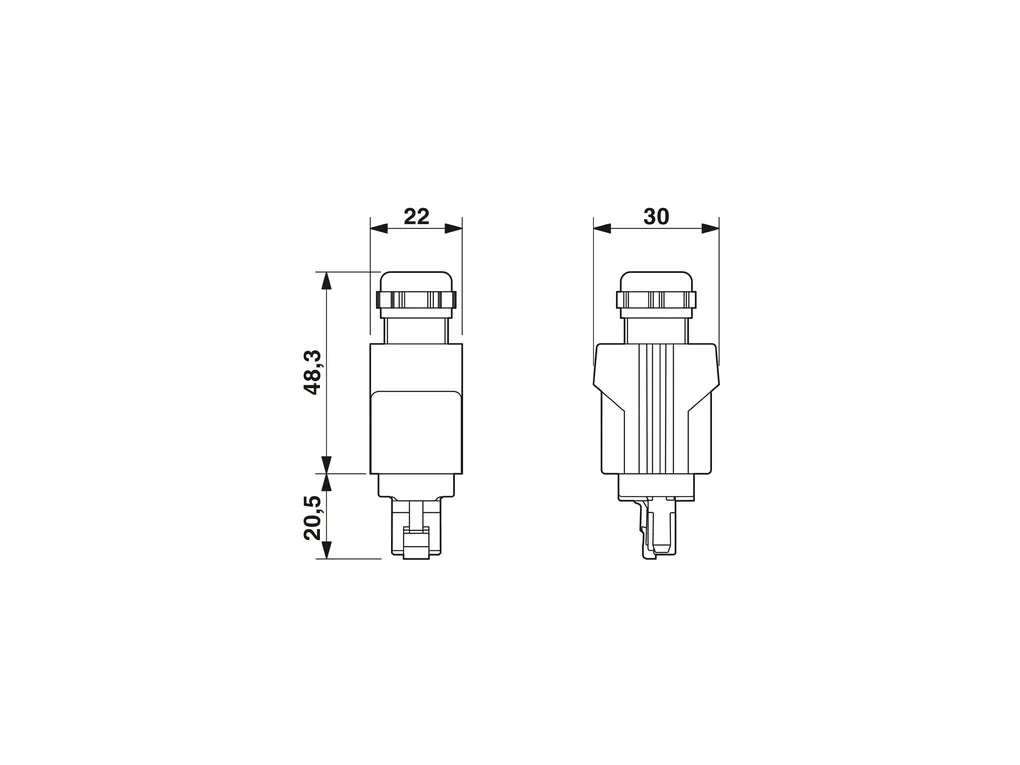

| Cable/line | Cable length: 5.00 m Ethernet flexible CAT5, 4-pairÃ[94B] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/4c3fd6859f812544824572f75cfdd10c/-S204x204-FJPG Shielded: yes UL AWM Style: 20963 (80°C/30 V) Cable weight: 47 kg/km Cable type: Ethernet flexible CAT5, 4-pair Short symbol: 02YS(ST)C11Y Cable type (abbreviation): 94B Signal type/category: Ethernet CAT5 (IEC 11801), 1 Gbps Cable structure: 4x2xAWG26/7, SF/UTP External cable diameter: 6.4 mm ñ0.2Ãmm Outer sheath, material: PUR External sheath, color: water blue RALÃ5021 Thickness, outer sheath: 1.05 mm Conductor material: Bare Cu litz wires Conductor structure signal line: 7x 0.16 mm AWG signal line: 26 Conductor cross section: 4x 2x 0.14 mm² Material wire insulation: Foamed PE Wire diameter incl. insulation: 0.96 mm Single wire, color: white/blue-blue, white/orange-orange, white/green-green, white/brown-brown Twisted pairs: 2 cores to the pair Overall twist: 4 pairs for core Shielding: Aluminum-coated foil, tinned copper braided shield Optical shield covering: 70 % Nominal voltage, cable: ââ°¤ 100 V Test voltage Core/Core: 700 V (50ÃHz, 1Ãmin.) Test voltage Core/Shield: 700 V (50ÃHz, 1Ãmin.) Cable insulation resistance: ââ°¥ 5 Gé*km Coupling resistance: ââ°¤ 100.00 mé/m (at 10 MHz) Wave impedance: 100 é ñ5Ãé (at 100 MHz) Loop resistance: ââ°¤ 290.00 é/km Cable capacity: 48 nF/km (at 1 kHz) Signal runtime: 5.3 ns/m Tensile strength: ââ°¤ 100 N Minimum bending radius, fixed installation: 4 x D Minimum bending radius, flexible installation: 8 x D Damping: 3.2 dB (with 1 MHz) 6 dB (at 4 Ãà Hz) 9.5 dB (at 10 MHz) 12.1 dB (at 16 MHz) 13.6 dB (at 20ÃÃà Hz) 17.1 dB (at 31.25ÃÃà Hz) 24.8 dB (at 62.5ÃÃà Hz) 32 dB (at 100 MHz) Near end crosstalk attenuation (NEXT): 71.3 dB (with 1 MHz) 62.3 dB (at 4 Ãà Hz) 56.3 dB (at 10 MHz) 53.2 dB (at 16 MHz) 51.8 dB (at 20ÃÃà Hz) 48.9 dB (at 31.25ÃÃà Hz) 44.4 dB (at 62.5ÃÃà Hz) 41.3 dB (at 100 MHz) Power-summated near end crosstalk attenuation (PSNEXT): 62.3 dB (with 1 MHz) 53.3 dB (at 4 Ãà Hz) 47.3 dB (at 10 MHz) 44.2 dB (at 16 MHz) 42.8 dB (at 20ÃÃà Hz) 39.9 dB (at 31.25ÃÃà Hz) 35.4 dB (at 62.5ÃÃà Hz) 32.3 dB (at 100 MHz) Return attenuation (RL): 23 dB (at 4 Ãà Hz) 24.1 dB (at 8ÃÃà Hz) 25 dB (at 10 MHz) 25 dB (at 16 MHz) 25 dB (at 20ÃÃà Hz) 23.6 dB (at 31.25ÃÃà Hz) 21.5 dB (at 62.5ÃÃà Hz) 20.1 dB (at 100 MHz) Halogen-free: according to IEC 60754-1 Resistance to oil: in accordance with EN 60811-2-1 Flame resistance: according to IEC 60332-1-2 Ambient temperature (operation): -20°C ... 80°C (Cable, flexible installation) -40°C ... 80°C (cable, fixed installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 IP67 IP67/IP20 |
