| Notes | General: For contact inserts HC-B6, BB10, DD24, M Tall housings for extra large wiring space |

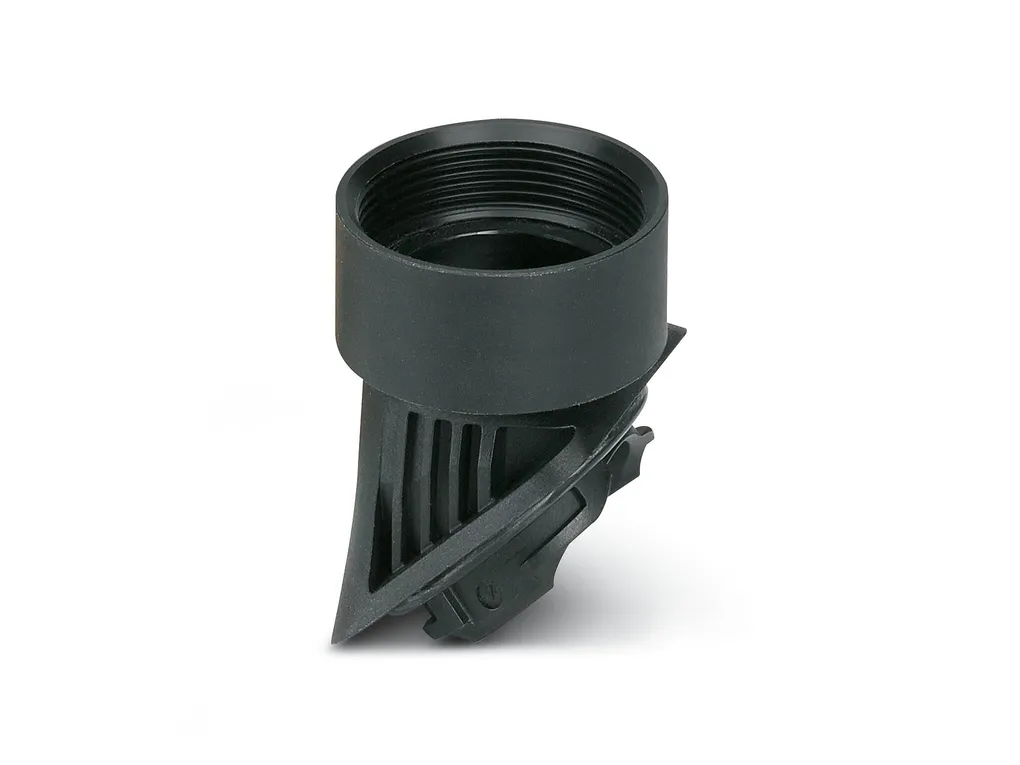

| Product properties | Type: B6 Product type: Housing with locking latch Product family: HC-EVO-B Application: Standard No. of cable outlets: 1 Housing type: Sleeve housing Cable outlet: straight Pg screw connection: none |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/e39151a1eec23b45aa4b85b4dafb15af/-S204x204-FJPG Width: 44 mm Height: 87.5 mm Length: 60 mm |
| Material specifications | Flammability rating according to UL 94: V0 (Housing) Impact strength: IK08 Housing material: PA |
| Mechanical properties | Mechanical data Locking type: Pin |
| Mounting | Assembly instructions: The sleeve base housing must be supplemented with the EVO screw connection. The EVO screw connection is available in 4 sizes. It enables the creation of a straight or a lateral cable outlet. The EVO screw connection is assembled by hand or using a pipe wrench. |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 Enclosure rating (NEMA): 12 (ULÃ50e) Impact strength: IK08 Ambient temperature (operation): -40°C ... 125°C |
