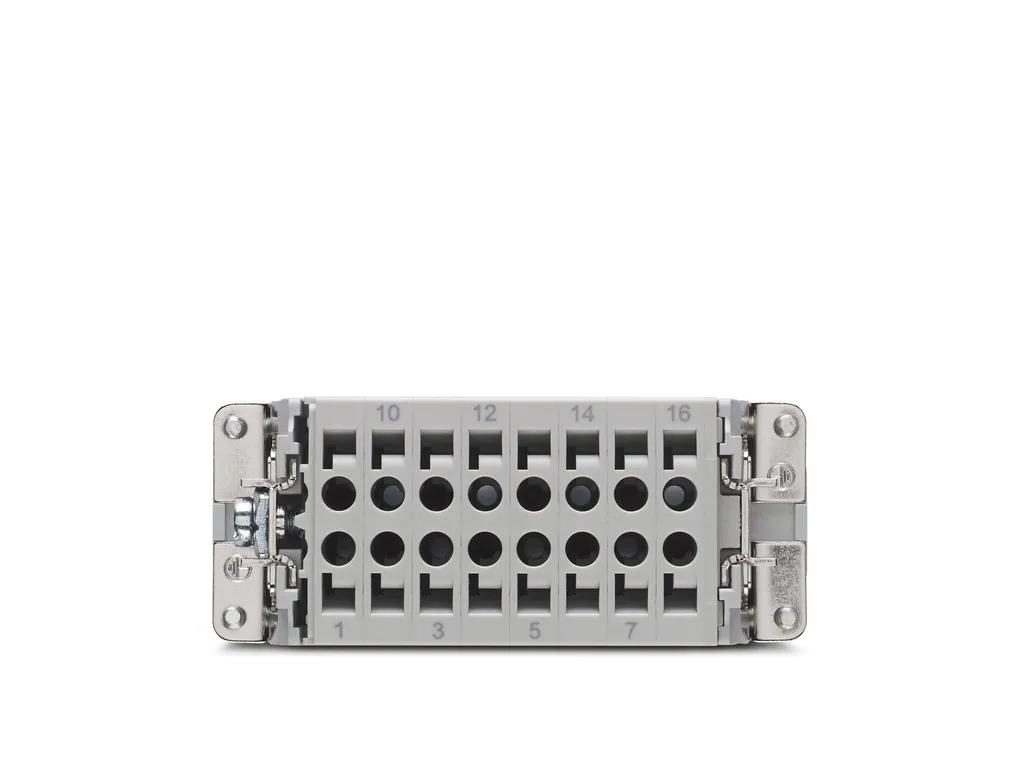

HC-HV06-I-CT-F - Contact insert

Contact insert, number of positions: 6+2+PE, size: B16, power contacts: 6, control contacts: 2, number of connections per position: 1, Socket, Crimp connection, 690 V, 16 A, 0.5 mm²...4 mm²

Product Code: 1405263 Copia - Copy

Partner cod.: 1405263 Copia - Copy

PHOENIX CONTACT

Notes	General: For HC ADVANCE-B16, HC-HV 6 housings, crimp contacts CK 2,5-ED (crimp contacts not included in scope of supply) Connectors may be operated only when there is no load/voltage.
Mounting	Assembly instructions: To ensure correct use, installation in housing with IP54 protection or better is required
Product properties	Type: B16 B32 Product type: Contact insert with a fixed no. of positions Number of positions: 8 Connection profile: 6+2+PE Number of connections per position: 1 No. of power contacts: 6 No. of control contacts: 2 Contact material type: turned Series: HC-HV Insulation characteristics Overvoltage category: III Degree of pollution: 3
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/3f2e9d9dc5b1e34f84be522a3837dd32/-S204x204-FJPG Width: 34 mm Height: 34.6 mm Length: 84 mm Drill hole distance, horizontal: 77.5 mm Drill hole distance, vertical: 27 mm Mechanical characteristics Contact diameter: 2.5 mm
Connection data	Connection technology Connection technology: Crimp connection Number of connections per position: 1 Conductor connection Conductor cross section: 0.5 mm² ... 4 mm² (power contacts) 0.5 mm² ... 4 mm² (control contacts) Connection cross section AWG: 20 ... 12 (power contacts) 20 ... 12 (control contacts) Tightening torque: 0.8 Nm ... 1.2 Nm (PE connection) 0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing) Stripping length of the individual wire: 7.5 mm (Power) 7.5 mm (Signal)
Electrical properties	Rated voltage (III/2) contacts: 830 V Rated voltage (III/3): 690 V Rated surge voltage (III/2): 8 kV Rated surge voltage (III/3): 6 kV Rated surge voltage: 8 kV (power contacts) 6 kV (control contacts) Rated current: 16 A (power contacts) 16 A (control contacts)
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢Ã¢°¥ 500
Material specifications	Flammability rating according to UL 94: V0 Contact material: Copper alloy Contact surface material: Ag (alternatively Au) Contact carrier material: PC Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINÃENÃ45545-2 (Risk level HL1 - HL3)
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -40°C ... 125°C (including heating up of contacts)
Standards and regulations	Testing Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINÃENÃ45545-2 (Risk level HL1 - HL3)
