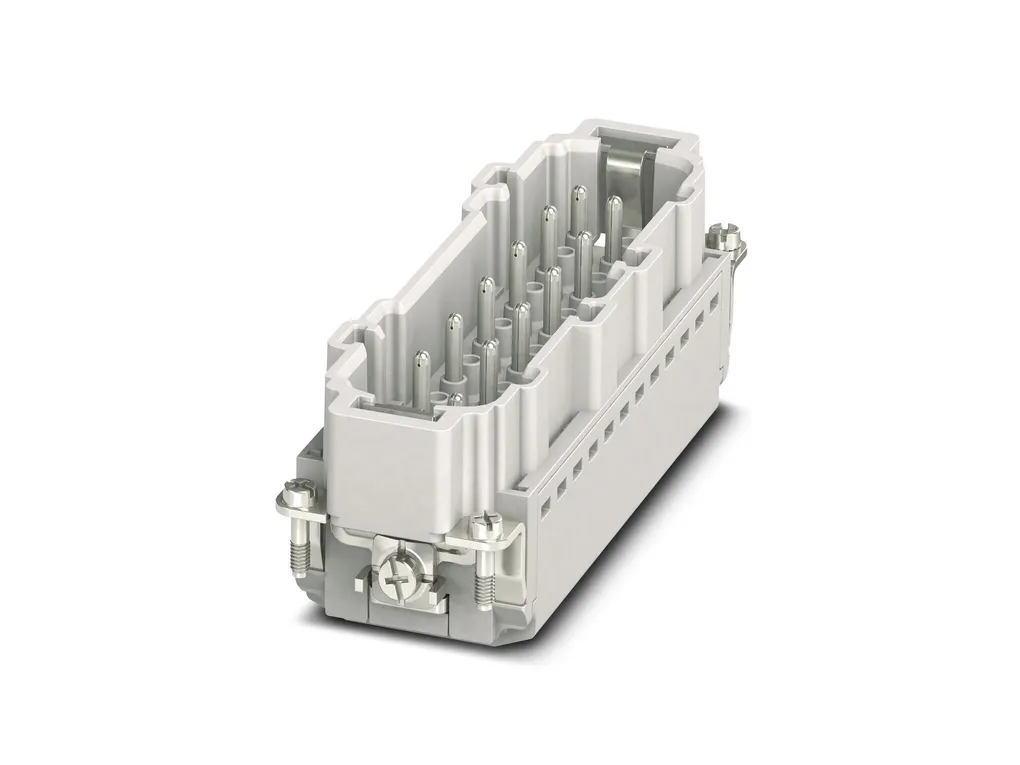

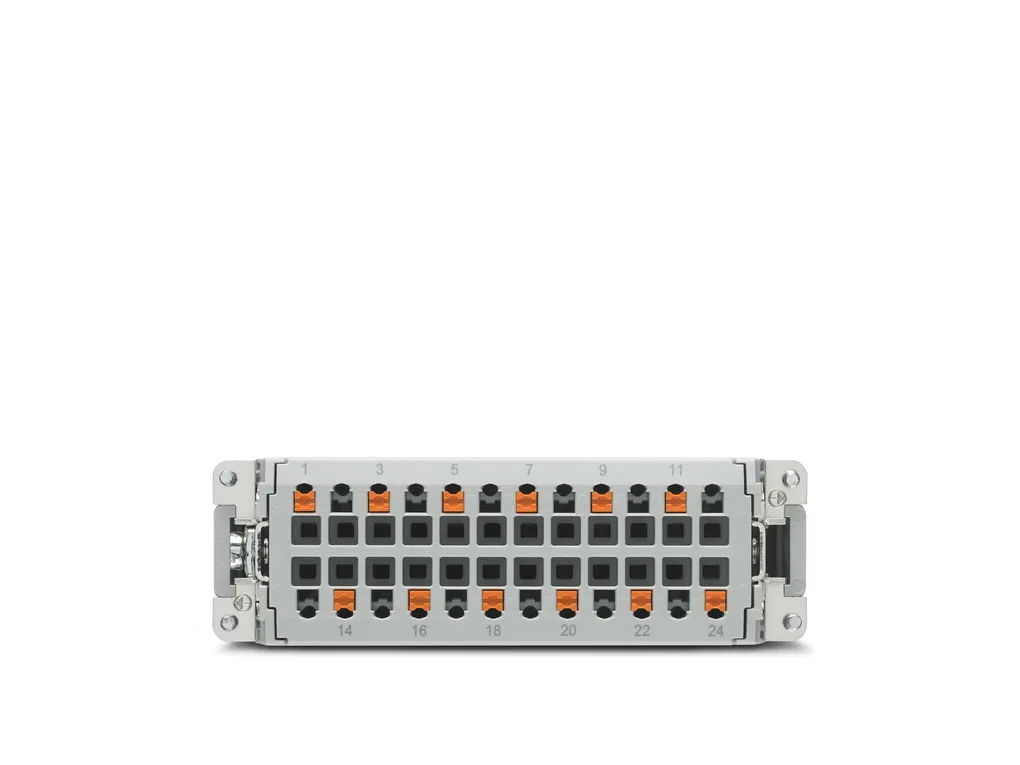

| Notes | General: only use flexible conductors with ferrules Connectors may be operated only when there is no load/voltage. |
| Mounting | Assembly instructions: To ensure correct use, installation in housing with IP54 protection or better is required Connection method: Push-in connection |
| Product properties | Type: B24 B48 Product type: Contact insert with a fixed no. of positions Number of positions: 12 Connection profile: 10+2+PE Application: Power Number of connections per position: 1 No. of power contacts: 10 No. of control contacts: 2 Series: HC-HV Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/65eeedcdce3a934caad4c4543f8666b9/-S204x204-FJPG Width: 34 mm Height: 32 mm Length: 111 mm Drill hole distance, horizontal: 104 mm Mechanical characteristics Contact diameter: 2.5 mm |
| Connection data | Connection technology Connection technology: Push-in connection (power contacts) Push-in connection (control contacts) Number of connections per position: 1 Conductor connection Conductor cross section: 0.14 mm² ... 2.5 mm² (power contacts) 0.14 mm² ... 2.5 mm² (control contacts) Connection cross section AWG: 26 ... 14 (power contacts) 26 ... 14 (control contacts) Tightening torque: 0.8 Nm ... 1.2 Nm (PE connection) 0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing) Stripping length: 8 mm ... 10 mm (power contacts) 8 mm ... 10 mm (control contacts) |
| Electrical properties | Rated voltage (III/2) contacts: 830 V Rated voltage (III/3): 690 V Rated surge voltage (III/2): 8 kV Rated surge voltage (III/3): 6 kV Rated surge voltage: 8 kV (power contacts) 6 kV (control contacts) Rated current: 16 A SCCR: 5 kA (UL 2237) |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 500 |
| Material specifications | Flammability rating according to UL 94: V0 Contact material: Copper alloy Contact carrier material: PC Material of contact surface, power contact: Ag Material of contact surface, control contact: Ag Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINÃENÃ45545-2 (Risk level HL1 - HL3) |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -40°C ... 125°C (including heating up of contacts) |
| Standards and regulations | Testing Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINÃENÃ45545-2 (Risk level HL1 - HL3) |
