PHOENIX CONTACT 1404220
PHOENIX CONTACT 1404220
PHOENIX CONTACTNot available

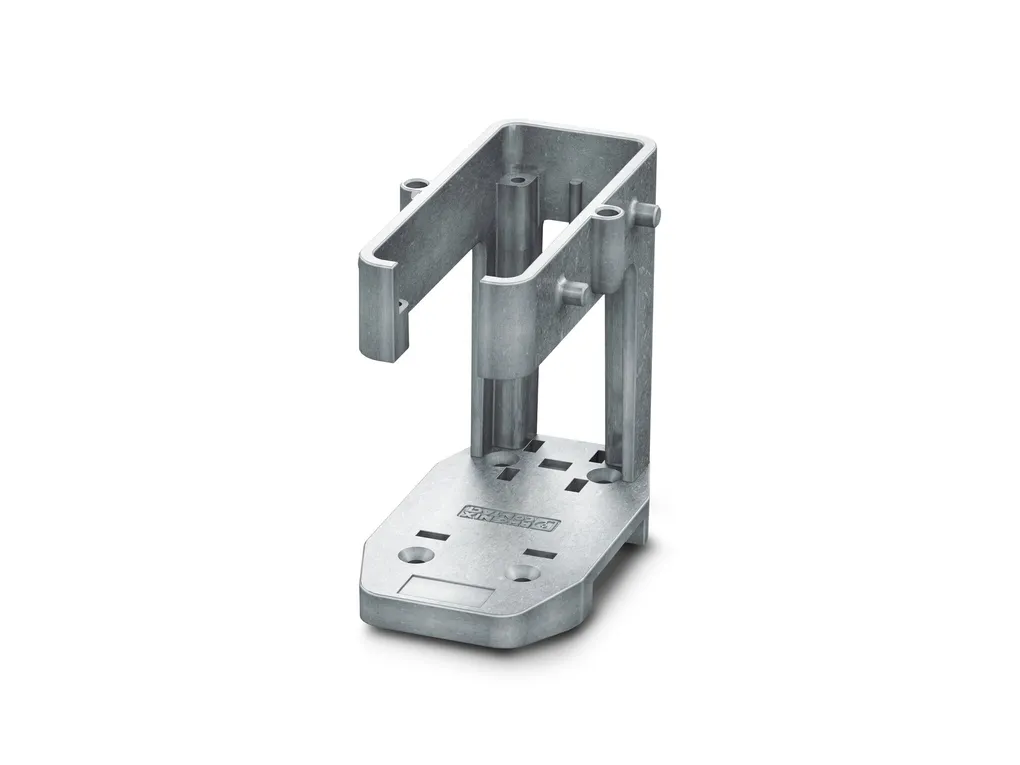

HC-CIF-B10-BFWD-FH-AL - DIN rail mounting frame

HEAVYCON DIN rail mounting frame, lower part with double locking latch, for housing without double locking latch or HC-CIF-..HFFD.. upper part, for type B10 contact inserts, for NS35/7,5 DIN rails
Product Code: 1404220
Partner cod.: 1404220
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Download
Tecnichal data
Product propertiesType: B10
Product type: DIN rail mounting frame
Housing type: DIN rail mounting frame
Protective cover: no
Series: HC-CIF-AL
Pg screw connection: none
DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/6d5aed6641e5f144b102d4d0bbb0e5fd/-S204x204-FJPG
Width: 56 mm
Height: 85 mm
Length: 93.5 mm
Material specificationsMaterial: Cast aluminum, uncoated
Locking latch material: PA
Housing material: Cast aluminum, uncoated
Mechanical propertiesMechanical data
Locking type: Latch
Environmental and real-life conditionsAmbient conditions
Ambient temperature (operation): -40°C ... 125°C
MountingMounting type: DIN rail: 35 mm
Assembly instructions: A double locking latch is not mounted, which means that an assembled cable set can be used more easily
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_03609.pdf

Manufacturer_declaration_03616.pdf

Technical_drawing_12369.pdf
