PHOENIX CONTACT 1404213
PHOENIX CONTACT 1404213
PHOENIX CONTACTNot available

HC-CIF-B24-HFFD-WH-AL - DIN rail mounting frame

HEAVYCON DIN rail mounting frame, upper part for double locking latch, for HC-CIF...BFWD.. lower parts with double locking latch or for HC-CIF...BFFD.. lower parts, for type B24 contact inserts, with M4 screws with 3mm Allen screw head, for NS35/7,5 DIN rails
Product Code: 1404213
Partner cod.: 1404213
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Download
Tecnichal data
Product propertiesType: B24
Product type: DIN rail mounting frame
Fixing screws: M4 with Allen screw, wrench size: 3 mm
Housing type: DIN rail mounting frame
Protective cover: no
Series: HC-CIF-AL
Pg screw connection: none

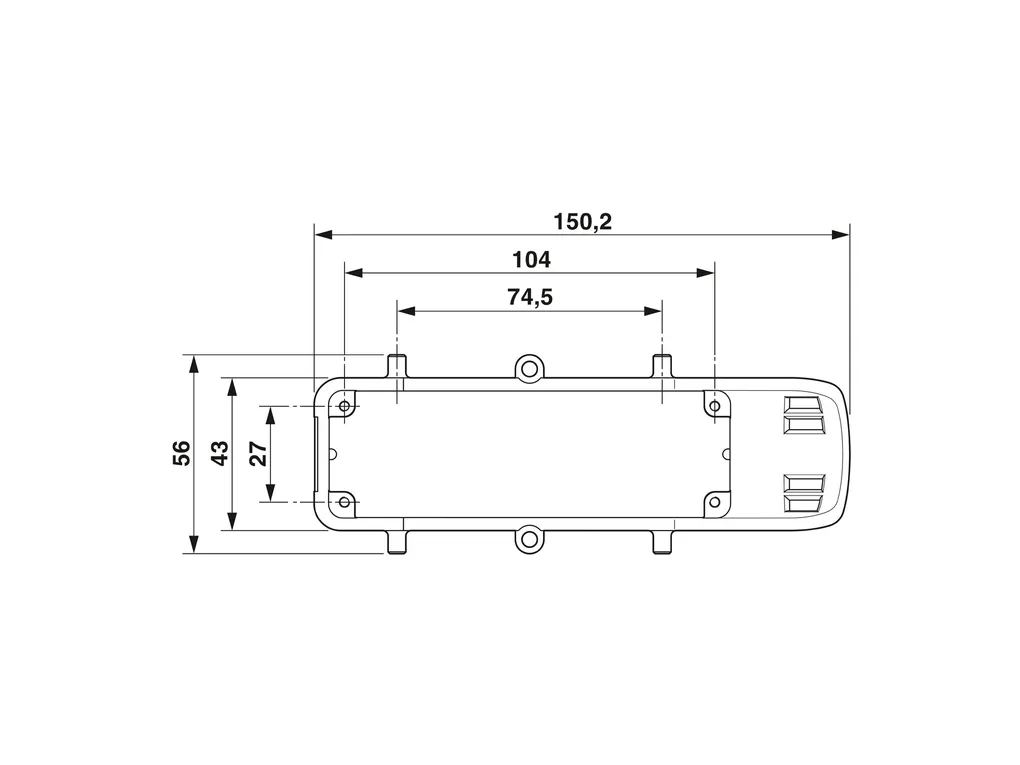

DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/52944b5a0ee5754980c823e0b2472e55/-S204x204-FJPG
Width: 56 mm
Height: 49 mm
Length: 150.2 mm
Material specificationsMaterial: Cast aluminum, uncoated
Locking latch material: Steel, galvanized
Housing material: Cast aluminum, uncoated
Mechanical propertiesMechanical data
Locking type: Screw
Environmental and real-life conditionsAmbient conditions
Ambient temperature (operation): -40°C ... 125°C
MountingAssembly instructions: For screw locking: M4, 3 mm Allen screw, 2 Nm tightening torque
Fixing screws: M4 with Allen screw, wrench size: 3 mm
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_03609.pdf

Manufacturer_declaration_03616.pdf

Technical_drawing_12362.pdf
