TRIO-PS-2G/230AC-400DC/48DC/5 - Power supply unit

Primary-switched TRIO power supply for DIN rail mounting, input: 230VAC/400VDC, output: 48VDC / 5A, dynamic boost, tool-free fast-connection technology for rigid and flexible conductors with ferrule
Product Code: 1157806
Partner cod.: 1157806
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Download
Tecnichal data
Input dataAC operation
Supply system configuration: Star network (TN, TT, IT (PE))
Nominal input voltage range: 220 VÂAC ... 240 VÂAC
Input voltage range: 220 VÂAC ... 240 VÂAC -15Â%Â...Â+10Â%
Switch-on voltage: typ. 70 VÂAC
Shut-down voltage: typ. 50 VÂAC
Electric strength, max.: ≤ 300 VÂAC 15 s
Typical national grid voltage: 230 VÂAC
Voltage type of supply voltage: AC
Inrush current integral (I2t): < 0.3 A2s
Inrush current limitation: < 13.5 A (after 1Âms)
AC frequency range: 50 Hz ... 60 Hz ±10Â%
Mains buffering time: > 20 ms (190ÂVÂAC)
> 20 ms (230 V AC)
Current consumption: 1.3 A (230 V AC)
Nominal power consumption: 285.7 VA
Power factor (cos phi): 0.91
Input fuse: 3.15 A (internal (device protection))
Recommended breaker for input protection: 4 A ... 16 A (Characteristic B, C, Z)
Discharge current to PE: < 3.5 mA
< 1.7 mA (264ÂVÂAC, 60ÂHz)
POWER factor: > 0.9 (230 V AC)
DC operation
Nominal input voltage range: 220 VÂDC ... 400 VÂDC
Input voltage range: 220 VÂDC ... 400 VÂDC -15Â%Â...Â+5Â%
Derating: < 99 VÂDC (2 %/V)
Switch-on voltage: typ. 95 VÂDC
Shut-down voltage: typ. 50 VÂDC
Electric strength, max.: ≤ 420 VÂDC
Voltage type of supply voltage: DC
Mains buffering time: > 20 ms (185ÂVÂDC)
> 25 ms (400ÂVÂDC)
Current consumption: 1.3 A (220 VÂDC)
0.7 A (400ÂVÂDC)
Output dataEfficiency: typ. 92.5 % (230 V AC)
typ. 94 % (400ÂVÂDC)
Output characteristic: U/I with dynamic load reserve
Nominal output voltage: 48.5 VÂDC ±1Â%
Nominal output current (IN): 5 A
Dynamic Boost (IDyn.Boost): 7.5 A (5 s)
Derating: > 60°C ... 70°C (2.5%/K)
POWER factor: > 0.9 (120ÂVÂAC)
> 0.9 (230 V AC)
Feedback voltage resistance: ≤ 60 VÂDC
Protection against overvoltage at the output (OVP): ≤ 58 VÂDC
Control deviation: < 1.5 % (change in load, static 10 % ... 90 %)
< 4 % (Dynamic load change 10 % ... 90 %, 10 Hz)
< 0.1 % (change in input voltage ±10 %)
Residual ripple: < 20 mVPP (with nominal values)
Short-circuit-proof: yes
No-load proof: yes
Output power: 240 W
360 W
Peak switching voltages nominal load: < 15 mVPP
Maximum no-load power dissipation: typ. 4 W (230 V AC)
typ. 4 W (400ÂVÂDC)
Power loss nominal load max.: typ. 20 W (230 V AC)
typ. 15 W (400ÂVÂDC)
Short-circuit current: < 7 AÂDC (Permanent)
Rise time: 20 ms (UOUT (10 % ... 90 %))
Connection in parallel: yes, for redundancy and increased capacity
Signal: DC OK
Continuous load current: 100 mA
Signal relay 13/14
Default: closed
Digital: 30 VÂAC 30 VÂDC 100 mA
Connection dataInput
Connection method: Push-in connection
Conductor cross section, rigid min.: 0.2 mm²
Conductor cross section, rigid max.: 4 mm²
Conductor cross section flexible min.: 0.2 mm²
Conductor cross section flexible max.: 2.5 mm²
Single conductor/flexible terminal point with ferrule with plastic sleeve, min.: 0.25 mm²
Single conductor/flexible terminal point with ferrule with plastic sleeve, max.: 1.5 mm²
Single conductor/flexible terminal point with ferrule without plastic sleeve, min.: 0.25 mm²
Single conductor/flexible terminal point with ferrule without plastic sleeve, max.: 2.5 mm²
Conductor cross section AWG min.: 24
Conductor cross section AWG max.: 12
Output
Connection method: Push-in connection
Conductor cross section, rigid min.: 0.2 mm²
Conductor cross section, rigid max.: 4 mm²
Conductor cross section flexible min.: 0.2 mm²
Conductor cross section flexible max.: 2.5 mm²
Single conductor/flexible terminal point with ferrule with plastic sleeve, min.: 0.25 mm²
Single conductor/flexible terminal point with ferrule with plastic sleeve, max.: 1.5 mm²
Single conductor/flexible terminal point with ferrule without plastic sleeve, min.: 0.25 mm²
Single conductor/flexible terminal point with ferrule without plastic sleeve, max.: 2.5 mm²
Conductor cross section AWG min.: 24
Conductor cross section AWG max.: 12
Signal
Connection method: Push-in connection
Conductor cross section, rigid min.: 0.2 mm²
Conductor cross section, rigid max.: 0.75 mm²
Conductor cross section flexible min.: 0.2 mm²
Conductor cross section flexible max.: 1.5 mm²
Single conductor/flexible terminal point with ferrule with plastic sleeve, min.: 0.2 mm²
Single conductor/flexible terminal point with ferrule with plastic sleeve, max.: 0.75 mm²
Single conductor/flexible terminal point with ferrule without plastic sleeve, min.: 0.2 mm²
Single conductor/flexible terminal point with ferrule without plastic sleeve, max.: 1 mm²
Conductor cross section AWG min.: 24
Conductor cross section AWG max.: 18
SignalingTypes of signaling: Floating signal contact
Signal output: LED status indicator
Signalization designation: DC OK
Status display: LED
Color: green
DC OK: UOUT > 0.7 x UN (UN = 48ÂVÂDC)
Electrical propertiesNumber of phases: 1.00
Insulation voltage input/output: 3.5 kV AC (type test)
1.5 kV AC (routine test)
Product propertiesProduct type: Power supply
Product family: TRIO POWER
MTBF (IEC 61709, SN 29500): > 2220000 h (25°C)
> 1280000 h (40°C)
> 560000 h (60°C)
> 2220000 h (25°C)
> 1280000 h (40°C)
> 560000 h (60°C)
Insulation characteristics
Protection class: I (in closed control cabinet)
Degree of pollution: 2

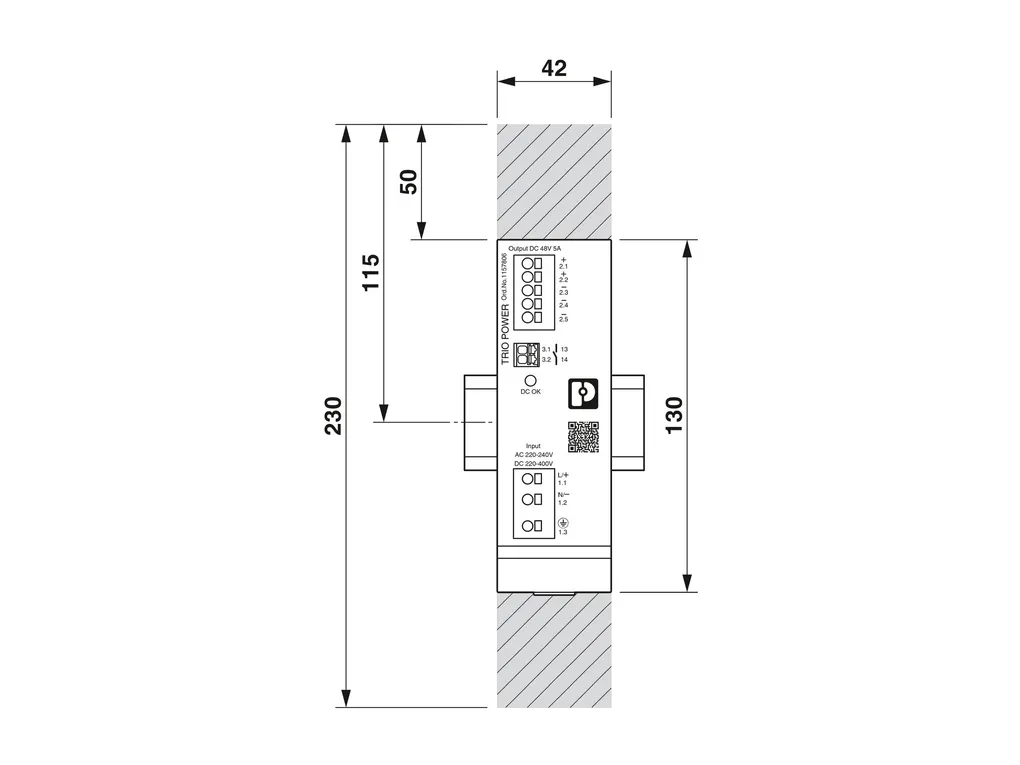

DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/9240672528a5f64d9507d9acab7c1ea2/-S204x204-FJPG
Width: 42 mm
Height: 130 mm
Depth: 160 mm
Installation dimensions
Installation distance right/left: 0 mm / 0 mm
Installation distance top/bottom: 50 mm / 50 mm
MountingMounting type: DIN rail mounting
Assembly instructions: alignable: horizontally 0 mm (≤ 40°C) 10 mm (≤ 70°C), vertically 50 mm
Mounting position: horizontal DIN rail NS 35, EN 60715
With protective coating: No
Material specificationsFlammability rating according to ULÂ94 (housing / terminal blocks): V0
Housing material: Metal
Type of housing: Aluminum (AlMg3)
Hood version: Polycarbonate
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP20
Ambient temperature (operation): -25°C ... 70°C (>60°CÂderating:Â1.6%/K)
Ambient temperature (storage/transport): -40°C ... 85°C
Ambient temperature (start-up type tested): -40°C
Maximum altitude: ≤ 2000 m
Climatic class: 3K3 (ENÂ60721)
Max. permissible relative humidity (operation): ≤ 95 % (at 25°C, non-condensing)
Shock: 20Âm/s² (2g), 11Âms, ±Ã‚100 Schocks (DINÂENÂ50125-3, DINÂENÂ60068-2-27)
Vibration (operation): 5ÂHzÂ...Â2ÂkHz, 2.3Âm/s² (0.23g) (RMS) 5Âh (DIN EN 50125-3, DIN EN 60068-2-64)
Standards and regulationsRail applications: ENÂ50121-3-2
ENÂ50121-4
ENÂ50124-1
ENÂ50125-3
IEC 62236-3-2
IEC 62236-4
IEC 62236-5
Standard âۉ€œ Limitation of mains harmonic currents: ENÂ61000-3-2
Standard - Electrical safety: ENÂ61010-1
VDEÂ0805 (SELV)
Standard âۉ€œ Safety extra-low voltage: IEC 61010-1 (SELV)
IEC 61010-2-201 (PELV)
Standard - Safe isolation: IEC 61010-2-201
IEC 61558-2-16
Standard - Safety of power supply units up to 1100 V (insulation distances): DINÂENÂ61558-2-16
Overvoltage category
EN 62477-1: IIÂ(≤Â2000Âm)
IIIÂ(≤Â2000Âm)
ApprovalsUL approvals: ULÂ61010-1
UL 61010-2-201
Conformity/Approvals
SIL in accordance with IEC 61508: 0
EMC dataLow Voltage Directive: Conformance with Low Voltage Directive 2014/35/EC
Interference emission: Interference emission in accordance with ENÂ61000-6-3 (residential and commercial) and ENÂ61000-6-4 (industrial)
EMC requirements for noise immunity: ENÂ61000-6-1
ENÂ61000-6-2
Electromagnetic compatibility: Conformance with EMC Directive 2014/30/EU
Conducted noise emission: ENÂ55016
ENÂ61000-6-3 (Class B)
Noise emission: EN 55011 (EN 55022)
ENÂ55016
ENÂ61000-6-3 (Class B)
Harmonic currents
Standards/regulations: ENÂ61000-3-2
Frequency range: ClassÂA
Flicker
Standards/regulations: ENÂ61000-3-3
Frequency range: 0 kHz ... 2 kHz
Electrostatic discharge
Standards/regulations: ENÂ61000-4-2
Electrostatic dischargeâۉ€¹
Contact discharge: 6 kV (Test Level 4)
Discharge in air: 8 kV (Test Level 4)
Comments: Criterion A
Electromagnetic HF field
Standards/regulations: ENÂ61000-4-3
Electromagnetic HF fieldâۉ€¹
Frequency range: 80 MHz ... 1 GHz
1 GHz ... 2 GHz
2 GHz ... 2.7 GHz
Test field strength: 20 V/m (Test Level 3)
10 V/m (Test Level X)
10 V/m (Test Level 3)
Comments: Criterion A
Fast transients (burst)
Standards/regulations: ENÂ61000-4-4
Fast transients (burst)âۉ€¹
Input: 4 kV (Test Level 4 - asymmetrical)
Output: 2 kV (Test Level 3 - asymmetrical)
Signal: 2 kV (Test Level 4 - asymmetrical)
Comments: Criterion A
Surge voltage load (surge)
Standards/regulations: ENÂ61000-4-5
Input: 2 kV (Test Level 4 - symmetrical)
4 kV (Test Level 4 - asymmetrical)
Output: 1 kV (Test Level 3 - symmetrical)
2 kV (Test Level 3 - asymmetrical)
Signal: 1 kV (Test Level 2 - asymmetrical)
Comments: Criterion A
Conducted interference
Standards/regulations: ENÂ61000-4-6
Conducted interferenceâۉ€¹
I/O/S: asymmetrical
Frequency range: 0.15 MHz ... 80 MHz
Comments: Criterion A
Voltage: 10 V (Test Level 3)
Voltage dips
Standards/regulations: ENÂ61000-4-11
Voltage: 230 VÂAC
Frequency: 50 Hz
Voltage dip: 70 %
40 %
0 %
Number of periods: 25 periods
10 periods
1 period
Additional text: Test Level 2
Comments: Criterion A
Emitted interference
Standards/regulations: ENÂ61000-6-3
Radio interference voltage in acc. with EN 55011: ENÂ55011 (ENÂ55022) ClassÂB, area of application: Industry and residential
Emitted radio interference in acc. with EN 55011: EN 55011 (EN 55022) Class B, area of application: Industry and residential
Criteria
Criterion A: Normal operating behavior within the specified limits.
Criterion B: Temporary impairment to operational behavior that is corrected by the device itself.
Criterion C: Temporary adverse effects on the operating behavior, which the device corrects automatically or which can be restored by actuating the operating elements.
