1053612 PHOENIX CONTACT - Technology Bsa

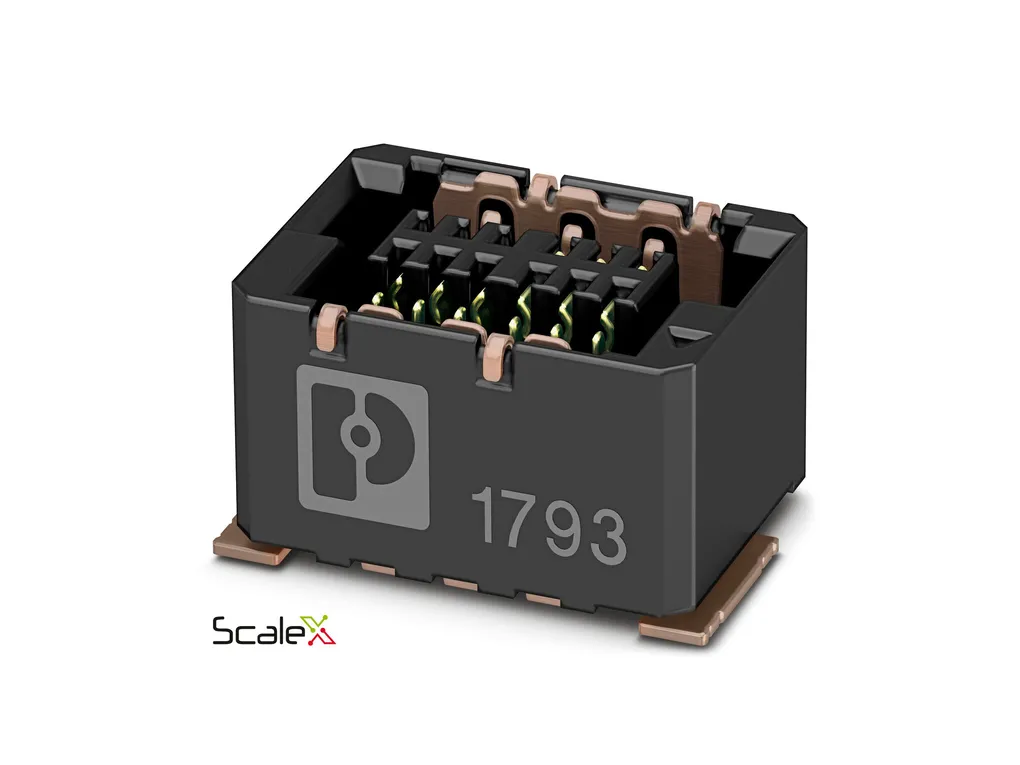

FP 0,8/ 20-FV-SH 4,85 - SMD female connector shielded

Shielded SMD female connector, nominal current: 1.7 A, Test voltage: 500 VAC, number of positions: 20, pitch: 0.8 mm, color: black, contact surface: Gold, contact connection type: Socket, mounting: SMD soldering

Product Code: 1053612 Copia - Copy

Partner cod.: 1053612 Copia - Copy

PHOENIX CONTACT

Product properties	Product type: Shielded SMD female connector Product family: FP 0,8/...-FV-SH 4,85 Number of positions: 20 Pitch: 0.8 mm Number of rows: 2 Number of potentials: 20 Pin layout: Linear pad geometry Electrical characteristic: shielded
Electrical properties	Nominal current I_N: 1.7 A IEC 60512-5-2:2002-02 (atÃ20°C 80-pos.) Degree of pollution: 3 Contact resistance: 15 mÃ© Test voltage: 500 VÃAC IEC 60512-4-1:2003 Electrical characteristic: shielded
Mounting	Mounting type: SMD soldering Pin layout: Linear pad geometry Processing notes Process: Reflow soldering Moisture Sensitive Level: MSL 1 Classification temperature T_c: 260°C
Material specifications	Material data - contact Note: WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 Contact material: Cu alloy Surface characteristics: Selective coating Metal surface contact area (top layer): Gold (Au) Metal surface contact area (middle layer): Nickel (Ni) Metal surface soldering area (top layer): Tin (Sn) Metal surface soldering area (middle layer): Nickel (Ni) Material data - housing Color (Housing): black (9005) Insulating material: LCP Insulating material group: IIIb CTI according to IEC 60112: 150 Flammability rating according to UL 94: V0
Notes	Notes on operation: The permissible voltage during operation depends on the application, taking into consideration the air clearances and creepage distances within the scope of insulation requirements in accordance with IEC 60664-1. Details for soldering processes: The items are suitable for assembly on both sides and for overhead soldering.

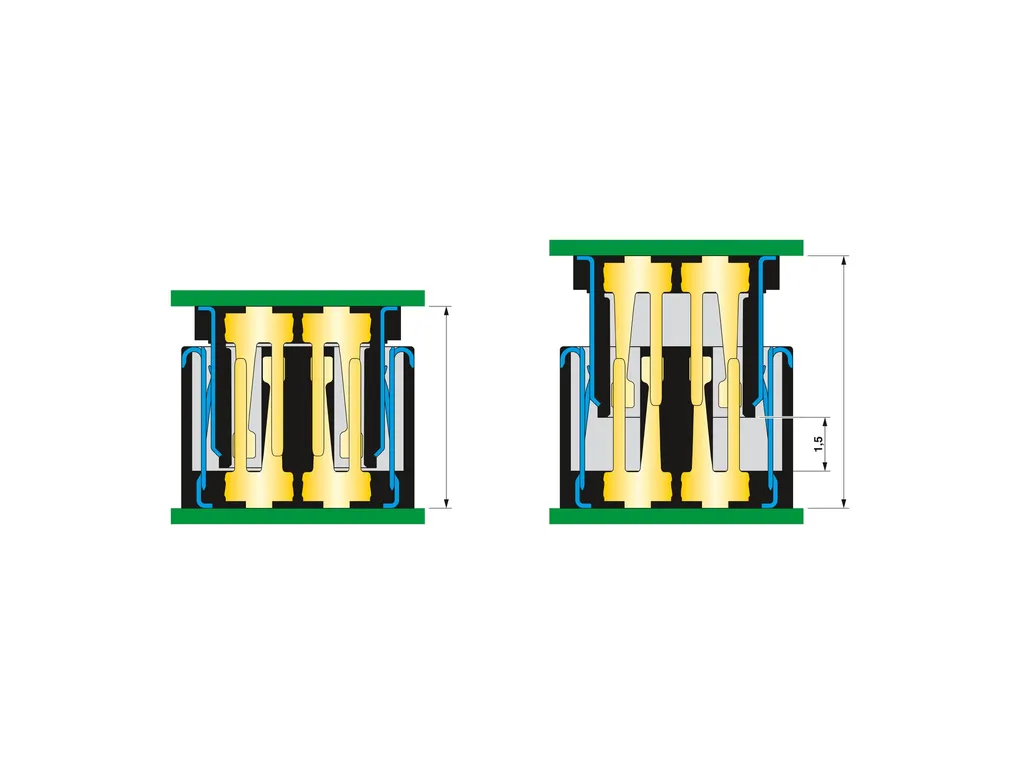

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/70e0f23c282363459709fcfe7d5e7131/-S204x204-FJPG Pitch: 0.8 mm Width [w]: 12.78 mm Height [h]: 5.45 mm Length [l]: 7.1 mm Installed height: 4.85 mm Application Contact cover: 0.8 mm Center offset: Ã± 0.7 mm in longitudinal and transverse direction Stack height: 6 mm Tolerance: +1,5Ãmm (in combination with Range of articles:FP 0,8/...-MV-SH 1,15) 7.5 mm Tolerance: +1,5Ãmm (in combination with Range of articles:FP 0,8/...-MV-SH 2,65) 12 mm Tolerance: +1,5Ãmm (in combination with Range of articles:FP 0,8/...-MV-SH 7,15) 13.5 mm Tolerance: +1,5Ãmm (in combination with Range of articles:FP 0,8/...-MV-SH 8,65) Wipe length: 1.5 mm Angular tolerance: Ã± 5° in longitudinal and transverse direction (when plugging in) Ã± 5° in longitudinal and transverse direction (when plugged in) Axial offset in X direction (longitudinal): Ã± 0.3 mm (Tolerance compensation when plugged in) Axial offset in Y direction (transversal): Ã± 0.3 mm (Tolerance compensation when plugged in) PCB design Pad geometry: 0.5 x 1.1 mm
Electrical tests	Thermal test \| Test group C Specification: IEC 60512-5-2:2002-02 Tested number of positions: 80 Insulation resistance Specification: IEC 60512-3-1:2002-02 Insulation resistance, neighboring positions: Ã¢Ã¢°¥ 5 GÃ© Air clearances and creepage distances \| Insulating material group: IIIb Minimum value for clearance and creepage distance: 0.25 mm
Environmental and real-life conditions	Vibration test Specification: IEC 60068-2-6:2007-12 Frequency: 10 - 2000 - 10 Hz Sweep speed: 1Ãoctave/min 200Ãm/s² (58ÃHzÃ...Ã2000ÃHz) Amplitude: 1.5Ãmm (10ÃHzÃ...Ã60.1ÃHz) Test duration per axis: 2.5 h Durability test Specification: IEC 60512-9-1:2010-03 (following) Impulse withstand voltage at sea level: 0.8 kV Contact resistance R₁: 15 mÃ© Contact resistance R₂: 15 mÃ© Insertion/withdrawal cycles: 500 Insulation resistance, neighboring positions: Ã¢Ã¢°¥ 5 GÃ© Climatic test Specification: IEC 60512-11-7:2003-05 Corrosive stress: Method 1, 10 days Power-frequency withstand voltage: 500 VÃAC Shocks Specification: IEC 60068-2-27:2008-02 Pulse shape: Semi-sinusoidal Acceleration: 490Ãm/s² Shock duration: 11Ãms Test directions: X-, Y- and Z-axis (pos. and neg.) Ambient conditions Ambient temperature (operation): -55°C ... 125°C Ambient temperature (storage/transport): -40°C ... 70°C Relative humidity (storage/transport): 30 % ... 70 % Ambient temperature (assembly): -5°C ... 100°C
Packaging specifications	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/5c9d0417f989e646afbbef42108ede86/-S204x204-FJPG Type of packaging: 32 mm wide tape [W] tape width: 32.4 mm [W2] coil overall dimension: 38.4 mm [A] coil diameter: 330 mm Outer packaging type: Transparent-Bag ESD level: (D) electrostatically conductive Specification: DINÃENÃ61340-5-1 (VDEÃ0300-5-1): 2008-07
