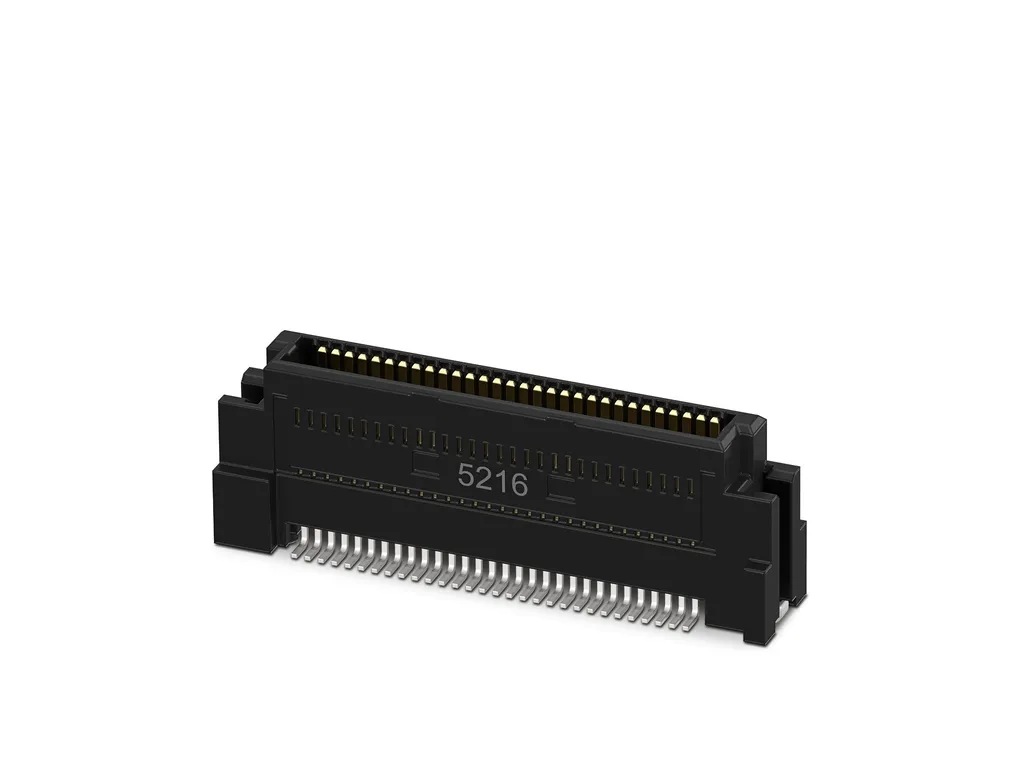

| Product properties | Product type: SMD female connector Product family: FS 0,635/...-FV-R- 4,0 Number of positions: 20 Pitch: 0.635 mm Number of rows: 2 Pin layout: Linear pad geometry |
| Electrical properties | Nominal current IN: 0.5 A IEC 60512-5-2:2002-02 (40-pos.Ã/Ã60-pos.) Degree of pollution: 3 Contact resistance: 40 mé Test voltage: 500 VÃAC IEC 60512-4-1:2003 Rated voltage (I/1): 125 V Rated surge voltage (I/1): 0.8 kV |
| Mounting | Mounting type: SMD soldering Pin layout: Linear pad geometry Processing notes Process: Reflow soldering Moisture Sensitive Level: MSL 1 Classification temperature Tc: 260°C Solder cycles in the reflow: 3 |
| Material specifications | Material data - contact Note: WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 Contact material: Cu alloy Surface characteristics: Selective coating Metal surface contact area (top layer): Gold (Au) Metal surface contact area (middle layer): Nickel (Ni) Metal surface soldering area (top layer): Tin (Sn) Metal surface soldering area (middle layer): Nickel (Ni) Material data - housing Color (Housing): black (9005) Insulating material: LCP Insulating material group: IIIb CTI according to IEC 60112: 160 Flammability rating according to UL 94: V0 |
| Notes | Notes on operation: The permissible voltage during operation depends on the application, taking into consideration the air clearances and creepage distances within the scope of insulation requirements in accordance with IEC 60664-1. |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/70e0f23c282363459709fcfe7d5e7131/-S204x204-FJPG Pitch: 0.635 mm Width [w]: 14.22 mm Height [h]: 4.6 mm Length [l]: 6.4 mm Installed height: 4 mm Application Contact cover: 0.6 mm Center offset: ñ 0.5 mm in longitudinal and transverse direction Stack height: 6 mm Tolerance: +0.6Ãmm (in combination with Range of articles:FS 0,635-MV-R- 5,0) 9 mm Tolerance: +0.6Ãmm (in combination with Range of articles:FS 0,635-MV-R- 8,0) 10 mm Tolerance: +0.6Ãmm (in combination with Range of articles:FS 0,635-MV-R- 9,0) Wipe length: 0.6 mm Angular tolerance: ñ 10° in longitudinal and transverse direction (when plugging in) ñ 2° in longitudinal and transverse direction (when plugged in) PCB design Pad geometry: 0.35 x 2.5 mm Hole diameter: 0.9 mm |

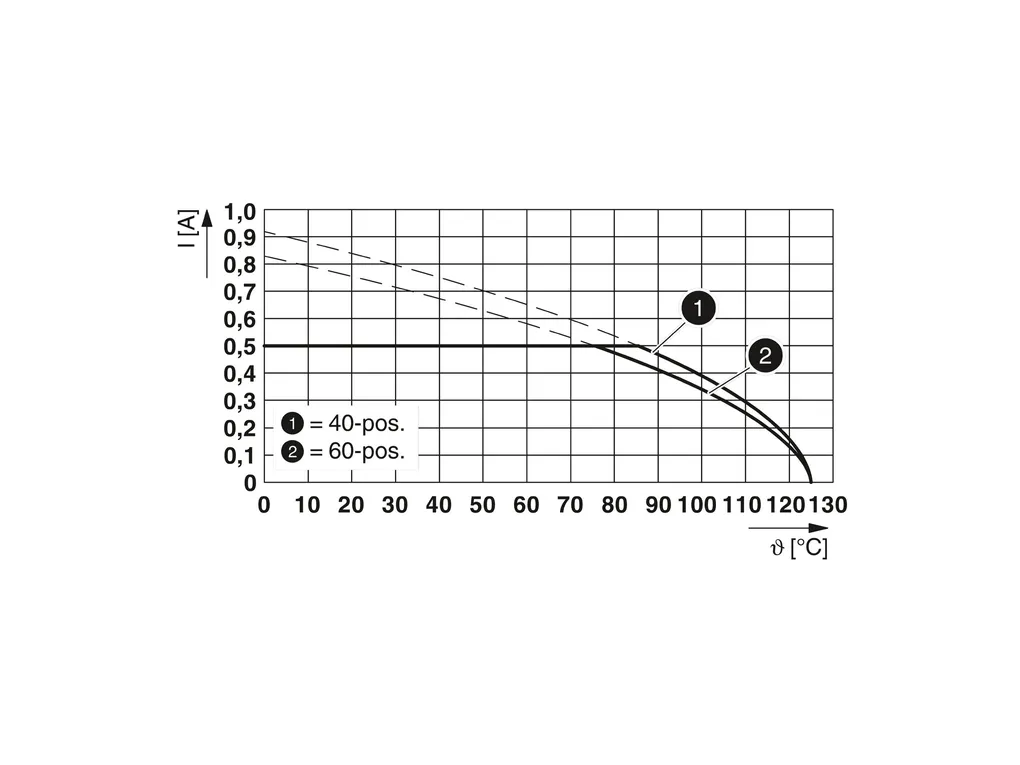

| Electrical tests | Thermal test | Test group C Specification: IEC 60512-5-2:2002-02 Tested number of positions: 60 Insulation resistance Specification: IEC 60512-3-1:2002-02 Insulation resistance, neighboring positions: ââ°¥ 5 Gé Air clearances and creepage distances | Specification: IEC 60664-1:2007-04 Insulating material group: IIIb Minimum value for clearance and creepage distance: 0.19 mm |
| Environmental and real-life conditions | Vibration test Specification: IEC 60068-2-6:2007-12 Frequency: 10 - 55 - 10 Hz Sweep speed: 1Ãoctave/min 181Ãm/s² Amplitude: 1.52Ãmm Test duration per axis: 2 h Durability test Specification: IEC 60512-9-1:2010-03 (following) Contact resistance R1: 40 mé Contact resistance R2: 40 mé Insertion/withdrawal cycles: 50 Insulation resistance, neighboring positions: ââ°¥ 5 Gé Climatic test Specification: IEC 60068-2-60:2015-06 Corrosive stress: Method 4, 10 days Thermal stress: 125ðC/168Ãh Power-frequency withstand voltage: 500 V Ambient conditions Ambient temperature (operation): -55°C ... 125°C Ambient temperature (storage/transport): -40°C ... 70°C Relative humidity (storage/transport): 30 % ... 70 % Ambient temperature (assembly): -5°C ... 100°C |
| Packaging specifications | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/5c9d0417f989e646afbbef42108ede86/-S204x204-FJPG Type of packaging: 32 mm wide tape [W] tape width: 32 mm [W2] coil overall dimension: 38.4 mm [A] coil diameter: 330 mm Outer packaging type: Transparent-Bag ESD level: (D) electrostatically conductive Specification: DINÃENÃ61340-5-1 (VDEÃ0300-5-1): 2008-07 |
