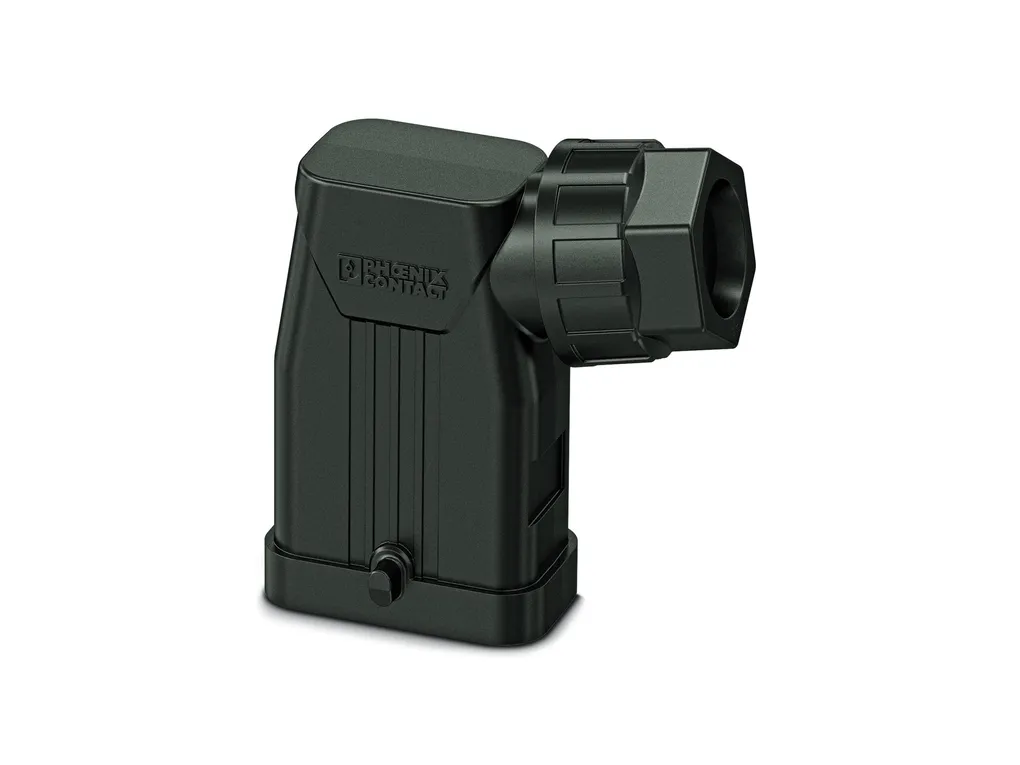

| Product properties | Type: COM Product type: Housing with locking latch Product family: HC-COM Application: Standard No. of cable outlets: 1 Type of the screw connection: 1x M25 Housing type: Sleeve housing Cable outlet: lateral Pg screw connection: with |

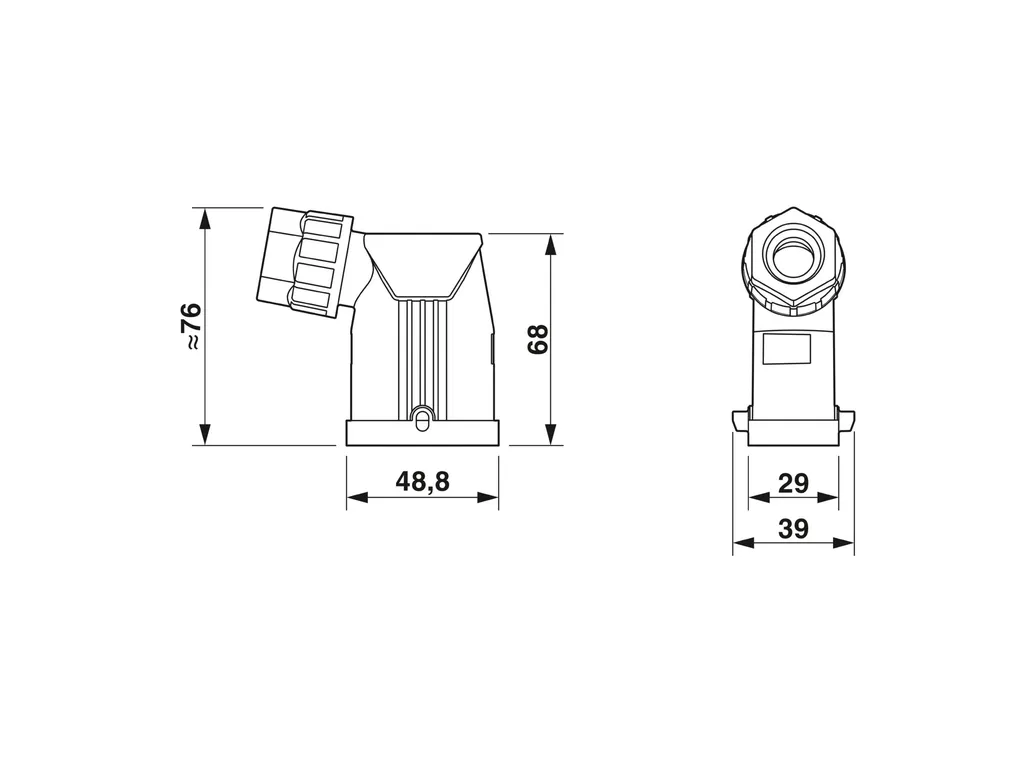

| Dimensions | Dimensional drawing: https://caas.production.phoenixcontact.coremedia.cloud/caas/v1/stable/media/22486/full/b250?format=jpg Width: 39 mm Height: 84 mm Length: 48.8 mm |
| Material specifications | Flammability rating according to UL 94: V0 (Housing) Housing material: PA |
| Mechanical properties | Mechanical data Type of the screw connection: 1x M25 Locking type: Pin |
| Cable/line | External cable diameter (): 10 mm ... 16 mm Tightening torque, union nut: 5.00 Nm |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 Ambient temperature (operation): -40°C ... 125°C |
