| Product properties | Type: COM Product type: Housing with locking latch Product family: HC-COM Application: Standard Housing type: Panel mounting base Pg screw connection: none |

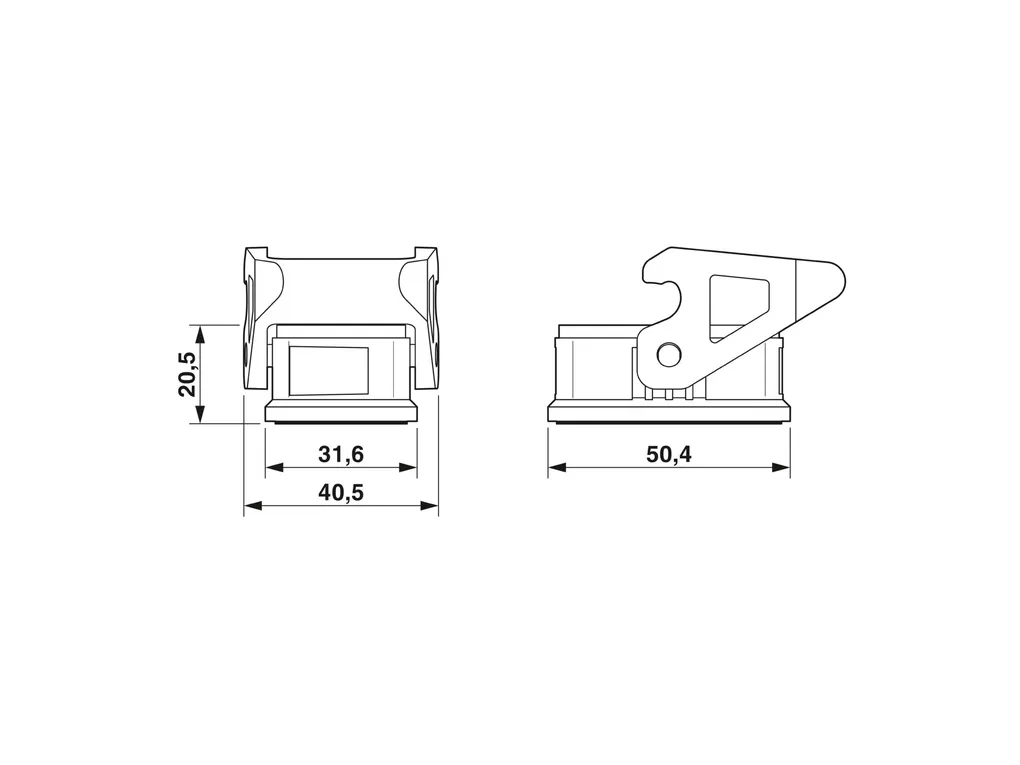

| Dimensions | Dimensional drawing: https://caas.production.phoenixcontact.coremedia.cloud/caas/v1/stable/media/22484/full/b250?format=jpg Width: 40.5 mm Height: 20 mm Length: 50.5 mm Hole diameter: 3.5 mm Installation dimensions Width of the assembly cutout: 22.7 mm Length of the assembly cutout: 26.5 mm |
| Material specifications | Flammability rating according to UL 94: V0 (Housing) V0 (Interlock) Seal material: NBR Locking latch material: PA Housing material: PC |
| Mechanical properties | Mechanical data Locking type: Latch |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 Ambient temperature (operation): -40°C ... 125°C |
