SICK 1075348
SICK 1075348
SICKNot available

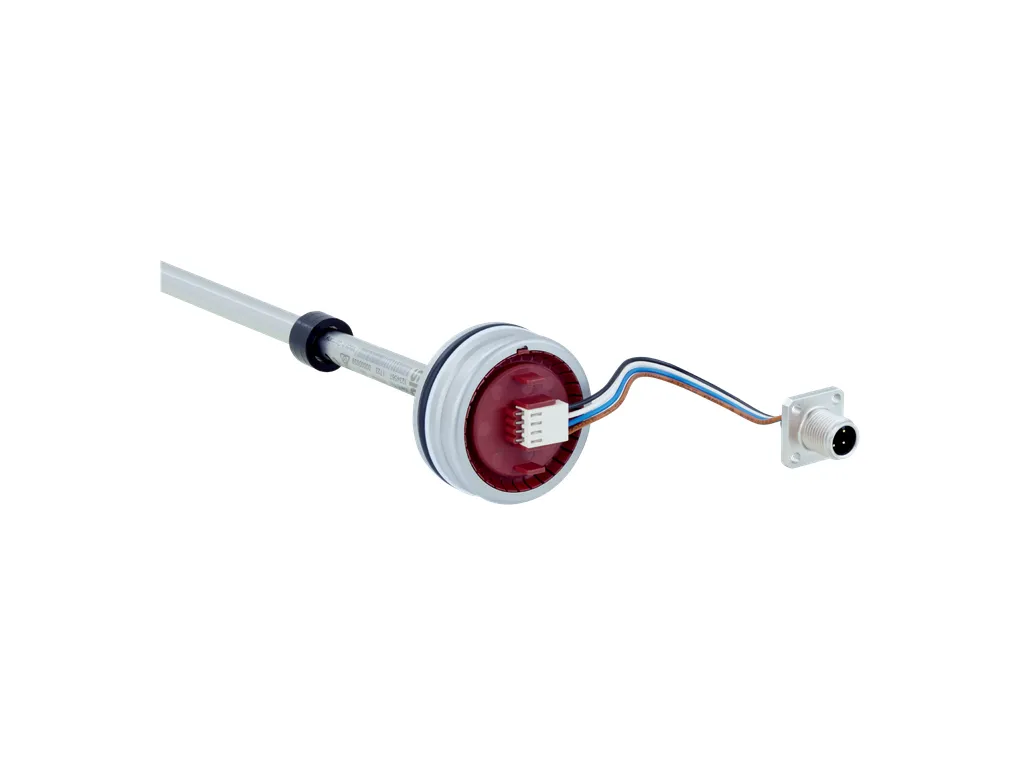

SEM90-HN050AK22

Motor feedback systems: SES/SEM
Product Code: 1075348
Partner cod.: 1075348
SICK


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Tecnichal data
Performance
Sine/cosine periods per revolution64
Number of the absolute ascertainable revolutions4,096
Total number of steps8,388,608
Measuring step5 ″ For interpolation of the sine/cosine signals with, e. g., 12 bits
Integral non-linearity± 72 ″
Differential non-linearity± 45 ″
Latency25 µs
Available memory area2,048 Byte
System accuracy± 117 ″
Interfaces
Type of code for the absolute valueBinary
Code sequenceRising, For clockwise shaft rotation, looking in direction “A” (see dimensional drawing)
Communication interfaceHIPERFACE®
Electrical data
Connection typeMale connector, 8-pin
Supply voltage7 V DC ... 12 V DC
Warm-up time voltage rampMax. 180 ms
Recommended supply voltage11 V DC
Current consumption≤ 150 mA
MTTF: mean time to dangerous failure160 years (EN ISO 13849)
Mechanical data
Shaft versionThrough hollow shaft
Shaft diameter50 mm
DimensionsSee dimensional drawing
Weight≤ 0.21 kg
Moment of inertia of the rotor280 gcm²
Operating speed6,000 min⁻¹, up to which the absolute position can be reliably produced
Angular acceleration≤ 50,000 rad/s²
Permissible radial shaft movement± 0.15 mm
Permissible axial shaft movement± 0.4 mm
Permissible movement static± 0.3 mm
Permissible movement dynamic± 0.1 mm
Ambient data
Operating temperature range–30 °C ... +115 °C
Storage temperature range–40 °C ... +125 °C, without package
Relative humidity/condensation85 %, Condensation not permitted
Resistance to shocks100 g, 10 ms (according to EN 60068-2-27)
Frequency range of resistance to vibrations30 g, 10 Hz ... 2,000 Hz (EN 60068-2-6)
EMCAccording to EN 61000-6-2 and EN 61000-6-4 (Class A)
Enclosure ratingIP40, with mating connector inserted and closed cover (IEC 60529)
Classifications
eCl@ss 5.027270590
eCl@ss 5.1.427270590
eCl@ss 6.027270590
eCl@ss 6.227270590
eCl@ss 7.027270590
eCl@ss 8.027270590
eCl@ss 8.127270590
eCl@ss 9.027270590
eCl@ss 10.027273805
eCl@ss 11.027273901
eCl@ss 12.027273901
ETIM 5.0EC001486
ETIM 6.0EC001486
ETIM 7.0EC001486
ETIM 8.0EC001486
UNSPSC 16.090141112113
Technical Specs
Unit weight0.332 Kilograms
Net unit weight0.332 Kilograms
Unit volume2138.4 Cubic Centimetres (cm³)
Measurements13.500*8.800*18.000
Country of originGermany
EAN4047084426582
