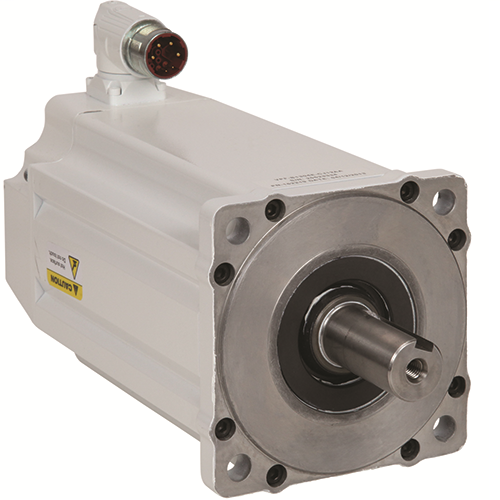

VPF Food Grade Servo Motors, 480V AC, 63mm Bolt Circle Frame Size, 2 (Two) Magnet Stacks, T Winding, 7200-8000 RPM Rated Speed, 18 bit Single-turn and 12 bit Multi-turn Digital High Resolution Encoder, Keyed Shaft, Single SpeedTec Din Connector, No Holdin

VPF Food Grade Servo Motors, 480V AC, 63mm Bolt Circle Frame Size, 2 (Two) Magnet Stacks, T Winding, 7200-8000 RPM Rated Speed, 18 bit Single-turn and 12 bit Multi-turn Digital High Resolution Encoder, Keyed Shaft, Single SpeedTec Din Connector, No Holding Brake, , Food Grade Shaft Seal

Product Code: VPF-B0632T-PJ12AF Copia - Copy

Partner cod.: VPF-B0632T-PJ12AF Copia - Copy

ROCKWELL AUTOMATION

Tecnichal data

Technical Specs

Download

Tecnichal data

PRODUCT SELECTIONBulletin NumberVPF Food Grade Servo MotorsVoltage Class480V ACFrame Size63mm Bolt Circle Frame SizeStack Length2 (Two) Magnet StacksRated SpeedT Winding, 7200-8000 RPM Rated SpeedFeedback18 bit Single-turn and 12 bit Multi-turn Digital High Resolution EncoderShaft ExtensionKeyed ShaftConnectorsSingle SpeedTec Din ConnectorBrake OptionNo Holding BrakeMountingIEC Metric Mounting FlangeFactory OptionsFood Grade Shaft SealTorque RatingTorque Rating

Technical Specs

Product Selection
Bulletin Number:VPF Food Grade Servo Motors
Voltage Class:480V AC
Frame Size:63mm Bolt Circle Frame Size
Stack Length:2 (Two) Magnet Stacks
Rated Speed:T Winding, 7200-8000 RPM Rated Speed
Feedback:18 bit Single-turn and 12 bit Multi-turn Digital High Resolution Encoder
Shaft Extension:Keyed Shaft
Connectors:Single SpeedTec Din Connector
Brake Option:No Holding Brake
Mounting:IEC Metric Mounting Flange
Factory Options:Food Grade Shaft Seal
Torque Rating:Torque Rating

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

vpf-in001_-en-p.pdf

knx-td001_-en-p.pdf
