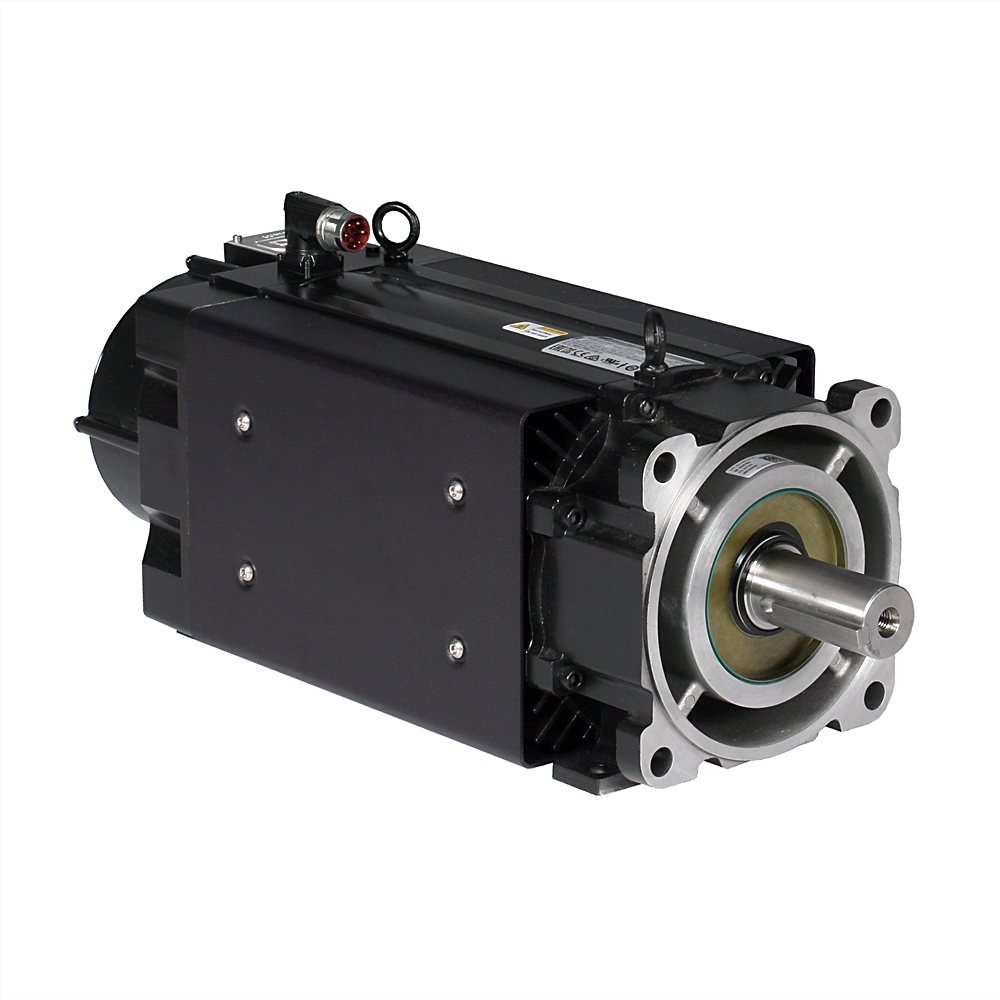

ROCKWELL AUTOMATION VPC-B2156D-QJ14FS
ROCKWELL AUTOMATION VPC-B2156D-QJ14FS
ROCKWELL AUTOMATIONNot available

Kinetix VP Continuous Duty Servo Motor

VPC Continuous Duty Servo Motor, 400V AC, 215mm Bolt Circle Frame Size, 6 (Six) Magnet Stacks, D Winding, 3000 RPM Rated Speed, 23 bit Single-turn, 12 bit Multi-turn, and 12 bit Secondary Channel SIL2 Pl(d) Safety Rated High Resolution Encoder, Keyed Shaft, Single SpeedTec Din Connector, 24V DC Holding Brake, Forced ventilation, Shaft Seal Standard (IP65)
Product Code: VPC-B2156D-QJ14FS
Partner cod.: VPC-B2156D-QJ14FS
ROCKWELL AUTOMATION


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Tecnichal data
PRODUCT SELECTIONBulletin NumberVPC Continuous Duty Servo MotorVoltage Class400V ACFrame Size215mm Bolt Circle Frame SizeStack Length6 (Six) Magnet StacksRated SpeedD Winding, 3000 RPM Rated SpeedFeedback23 bit Single-turn, 12 bit Multi-turn, and 12 bit Secondary Channel SIL2 Pl(d) Safety Rated High Resolution EncoderShaft ExtensionKeyed ShaftConnectorsSingle SpeedTec Din ConnectorBrake Option24V DC Holding BrakeCoolingForced ventilationFactory OptionsShaft Seal Standard (IP65)Torque Rating70.1/620 Nm/LB.IN

Other products

Description other products

ROCKWELL AUTOMATION VPC-B1652D-QJ12FS
Servo Motor, Continuous Duty, 400V AC, 165mm BCD Frame (80mm SH), 2 (Two) Magnet Stacks, 3000 RPM Rated Speed, Multi-turn DSL Encoder, Keyed Shaft, SpeedTec Right Angle DIN 325, No Holding Brake, Forced Ventilation, Shaft seal standard option
Cod. Articolo: VPC-B1652D-QJ12FS
VPC Continuous Duty Servo Motor, 400V AC, 165mm Bolt Circle Frame Size, 2 (Two) Magnet Stacks, D Winding, 3000 RPM Rated Speed, 23 bit Single-turn, 12 bit Multi-turn, and 12 bit Secondary Channel SIL2 Pl(d) Safety Rated High Resolution Encoder, Keyed Shaft, Single SpeedTec Din Connector, No Holding Brake, Forced ventilation, Shaft Seal Standard (IP65)
More info →

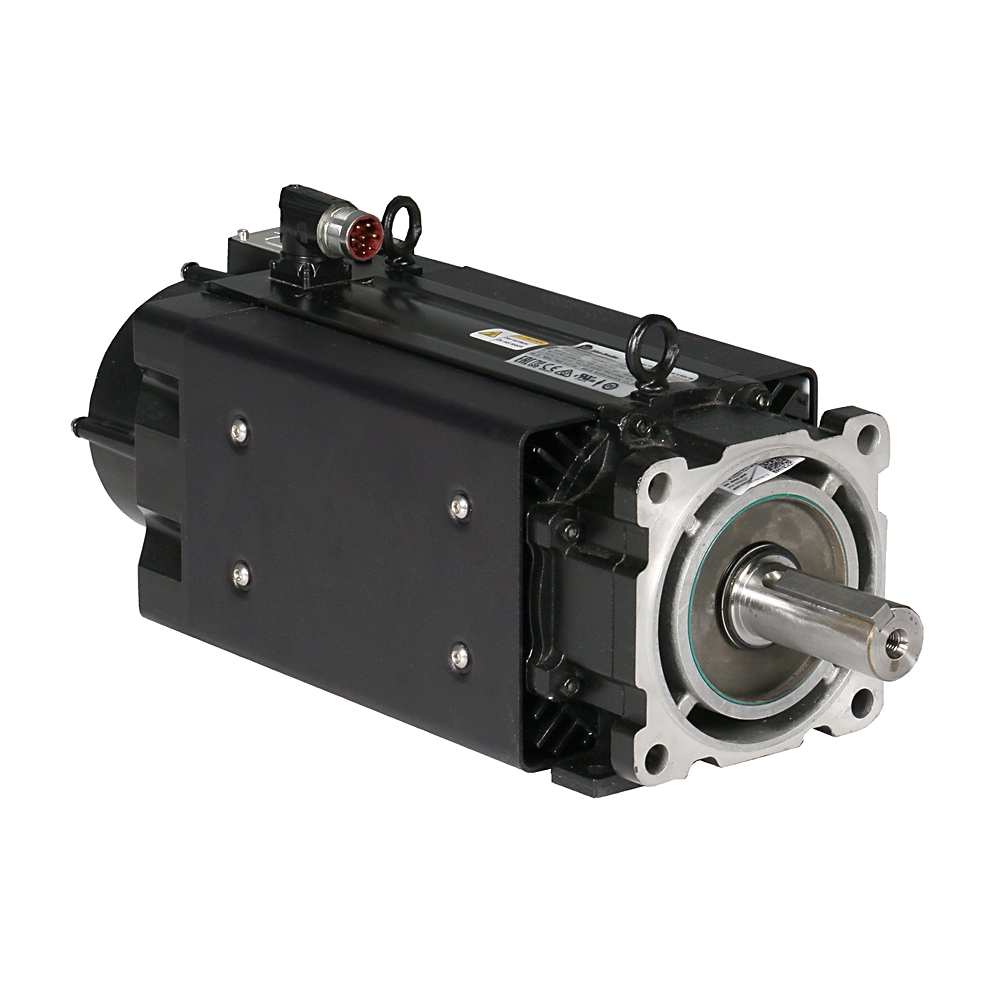

ROCKWELL AUTOMATION VPC-B1653A-QJ12FS
Servo Motor, Continuous Duty, 400V AC, 165mm BCD Frame (80mm SH), 3 (Three) Magnet Stacks, 1500 RPM Rated Speed, Multi-turn DSL Encoder, Keyed Shaft, SpeedTec Right Angle DIN 325, No Holding Brake, Forced Ventilation, Shaft seal standard option
Cod. Articolo: VPC-B1653A-QJ12FS
VPC Continuous Duty Servo Motor, 400V AC, 165mm Bolt Circle Frame Size, 3 (Three) Magnet Stacks, A Winding, 1500 RPM Rated Speed, 23 bit Single-turn, 12 bit Multi-turn, and 12 bit Secondary Channel SIL2 Pl(d) Safety Rated High Resolution Encoder, Keyed Shaft, Single SpeedTec Din Connector, No Holding Brake, Forced ventilation, Shaft Seal Standard (IP65)
More info →

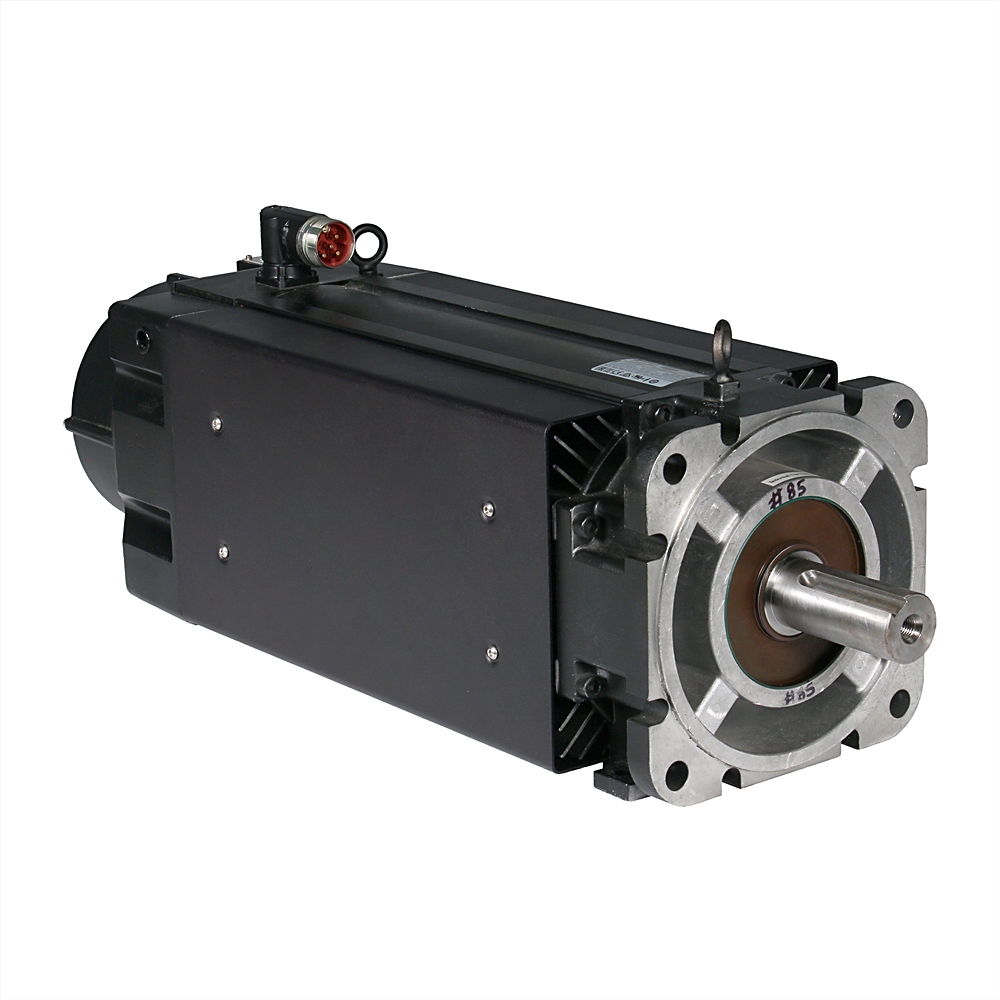

ROCKWELL AUTOMATION VPC-B30049-SJ72FS
Servo Motor, Continuous Duty, 400V AC, 300mm BCD Frame (132mm SH), 4 (Four) Magnet Stacks, 1000 RPM Rated Speed, Single-turn Hiperface Encoder, Keyed Shaft, SpeedTec Right Angle DIN 180, No Holding Brake, Forced Ventilation, Shaft seal standard option
Cod. Articolo: VPC-B30049-SJ72FS
VPC Continuous Duty Servo Motor, 400V AC, 300mm Bolt Circle Frame Size, 4 (Four) Magnet Stacks, 9 Winding, 1000 RPM Rated Speed, 21 bit Single-turn, 1024 sin/cos, absolute encoder (Hiperface), Keyed Shaft, Dual SpeedTec Right Angle DIN Connector, 180° rotatable, No Holding Brake, Forced ventilation, Shaft Seal Standard (IP65)
More info →
