ROCKWELL AUTOMATION VPC-B2153A-QJ14FS
ROCKWELL AUTOMATIONNot available

Servo Motor, Continuous Duty, 400V AC, 215mm BCD Frame (100mm SH), 3 (Three) Magnet Stacks, 1500 RPM Rated Speed, Multi-turn DSL Encoder, K eyed Shaft, SpeedTec Right Angle DIN 325, 24V DC Holding Brake, Forced Ventilation, Shaft seal standard option

VPC Continuous Duty Servo Motor, 400V AC, 215mm Bolt Circle Frame Size, 3 (Three) Magnet Stacks, A Winding, 1500 RPM Rated Speed, 23 bit Single-turn, 12 bit Multi-turn, and 12 bit Secondary Channel SIL2 Pl(d) Safety Rated High Resolution Encoder, Keyed Shaft, Single SpeedTec Din Connector, 24V DC Holding Brake, Forced ventilation, Shaft Seal Standard (IP65)
Product Code: VPC-B2153A-QJ14FS
Partner cod.: VPC-B2153A-QJ14FS
ROCKWELL AUTOMATION


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Tecnichal data
PRODUCT SELECTIONBulletin NumberVPC Continuous Duty Servo MotorVoltage Class400V ACFrame Size215mm Bolt Circle Frame SizeStack Length3 (Three) Magnet StacksRated SpeedA Winding, 1500 RPM Rated SpeedFeedback23 bit Single-turn, 12 bit Multi-turn, and 12 bit Secondary Channel SIL2 Pl(d) Safety Rated High Resolution EncoderShaft ExtensionKeyed ShaftConnectorsSingle SpeedTec Din ConnectorBrake Option24V DC Holding BrakeCoolingForced ventilationFactory OptionsShaft Seal Standard (IP65)Torque Rating48.0/425 Nm/LB.IN

Other products

Description other products

ROCKWELL AUTOMATION VPC-B3004A-YJ72FS
VPC Continuous Duty Servo Motor, 400V AC, 300mm Bolt Circle Frame Size, 4 (Four) Magnet Stacks, A Winding, 1500 RPM Rated Speed, 25 bit Multi-turn, 4096 revs, absolute encoder (EnDat 2.2), Keyed Shaft, Dual SpeedTec Right Angle DIN Connector, 180° rotatab
Cod. Articolo: VPC-B3004A-YJ72FS
VPC Continuous Duty Servo Motor, 400V AC, 300mm Bolt Circle Frame Size, 4 (Four) Magnet Stacks, A Winding, 1500 RPM Rated Speed, 25 bit Multi-turn, 4096 revs, absolute encoder (EnDat 2.2), Keyed Shaft, Dual SpeedTec Right Angle DIN Connector, 180° rotatable, No Holding Brake, Forced ventilation, Shaft Seal Standard (IP65)
More info →
ROCKWELL AUTOMATION VPC-B3002A-QK14FS
Kinetix VP Continuous Duty Servo Motor
Cod. Articolo: VPC-B3002A-QK14FS
VPC Continuous Duty Servo Motor, 400V AC, 300mm Bolt Circle Frame Size, 2 (Two) Magnet Stacks, A Winding, 1500 RPM Rated Speed, 23 bit Single-turn, 12 bit Multi-turn, and 12 bit Secondary Channel SIL2 Pl(d) Safety Rated High Resolution Encoder, Keyless Shaft, Single SpeedTec Din Connector, 24V DC Holding Brake, Forced ventilation, Shaft Seal Standard (IP65)
More info →

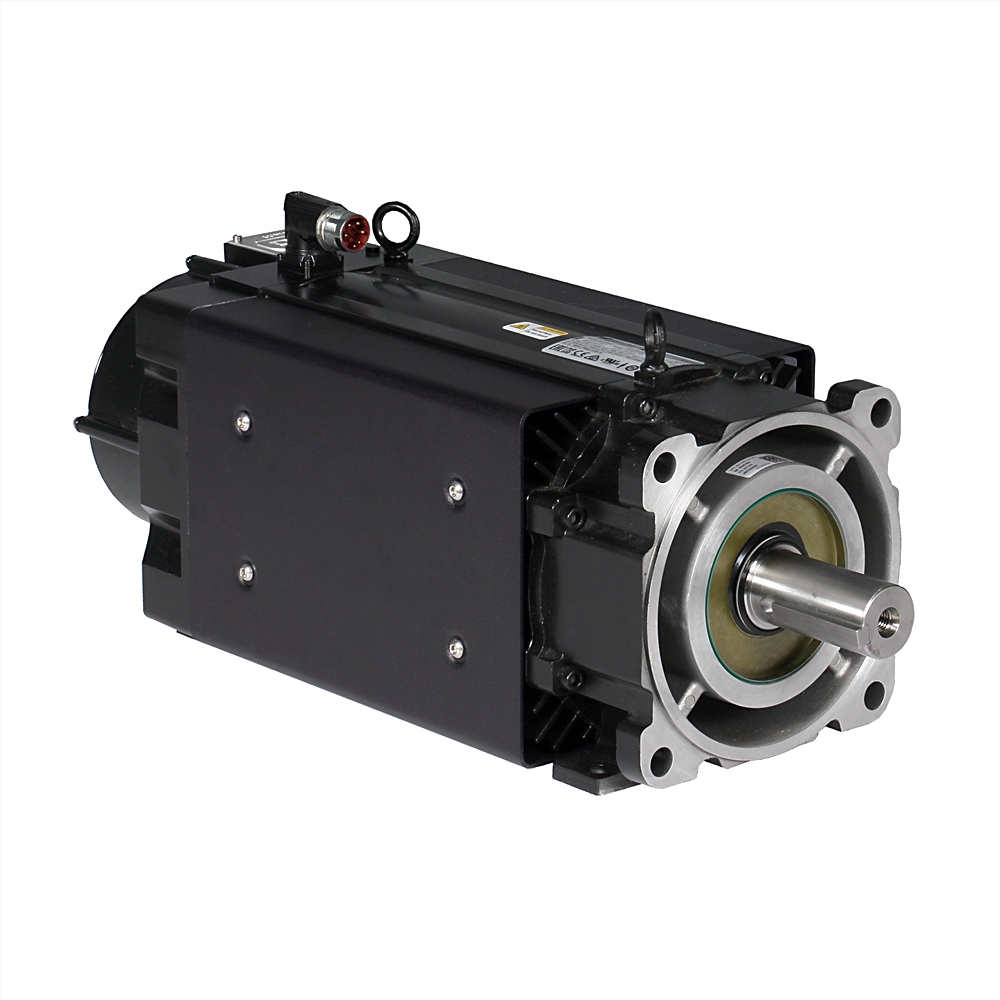

ROCKWELL AUTOMATION VPC-B21539-SJ72FS
Servo Motor, Continuous Duty, 400V AC, 215mm BCD Frame (100mm SH), 3 (Three) Magnet Stacks, 1000 RPM Rated Speed, Single-turn Hiperface Encoder, Keyed Shaft, SpeedTec Right Angle DIN 180, No Holding Brake, Forced Ventilation, Shaft seal standard option
Cod. Articolo: VPC-B21539-SJ72FS
VPC Continuous Duty Servo Motor, 400V AC, 215mm Bolt Circle Frame Size, 3 (Three) Magnet Stacks, 9 Winding, 1000 RPM Rated Speed, 21 bit Single-turn, 1024 sin/cos, absolute encoder (Hiperface), Keyed Shaft, Dual SpeedTec Right Angle DIN Connector, 180° rotatable, No Holding Brake, Forced ventilation, Shaft Seal Standard (IP65)
More info →
