ROCKWELL AUTOMATION VPC-B1652A-SJ72FS
ROCKWELL AUTOMATIONNot available

Servo Motor, Continuous Duty, 400V AC, 165mm BCD Frame (80mm SH), 2 (Two) Magnet Stacks, 1500 RPM Rated Speed, Single-turn Hiperface Encoder, Keyed Shaft, SpeedTec Right Angle DIN 180, No Holding Brake, Forced Ventilation, Shaft seal standard option

VPC Continuous Duty Servo Motor, 400V AC, 165mm Bolt Circle Frame Size, 2 (Two) Magnet Stacks, A Winding, 1500 RPM Rated Speed, 21 bit Single-turn, 1024 sin/cos, absolute encoder (Hiperface), Keyed Shaft, Dual SpeedTec Right Angle DIN Connector, 180° rotatable, No Holding Brake, Forced ventilation, Shaft Seal Standard (IP65)
Product Code: VPC-B1652A-SJ72FS
Partner cod.: VPC-B1652A-SJ72FS
ROCKWELL AUTOMATION


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Tecnichal data
PRODUCT SELECTIONBulletin NumberVPC Continuous Duty Servo MotorVoltage Class400V ACFrame Size165mm Bolt Circle Frame SizeStack Length2 (Two) Magnet StacksRated SpeedA Winding, 1500 RPM Rated SpeedFeedback21 bit Single-turn, 1024 sin/cos, absolute encoder (Hiperface)Shaft ExtensionKeyed ShaftConnectorsDual SpeedTec Right Angle DIN Connector, 180° rotatableBrake OptionNo Holding BrakeCoolingForced ventilationFactory OptionsShaft Seal Standard (IP65)Torque Rating25.5/226 Nm/LB.IN

Other products

Description other products

ROCKWELL AUTOMATION VPC-B2153A-QJ12FS
Servo Motor, Continuous Duty, 400V AC, 215mm BCD Frame (100mm SH), 3 (Three) Magnet Stacks, 1500 RPM Rated Speed, Multi-turn DSL Encoder, Keyed Shaft, SpeedTec Right Angle DIN 325, No Holding Brake, Forced Ventilation, Shaft seal standard option
Cod. Articolo: VPC-B2153A-QJ12FS
VPC Continuous Duty Servo Motor, 400V AC, 215mm Bolt Circle Frame Size, 3 (Three) Magnet Stacks, A Winding, 1500 RPM Rated Speed, 23 bit Single-turn, 12 bit Multi-turn, and 12 bit Secondary Channel SIL2 Pl(d) Safety Rated High Resolution Encoder, Keyed Shaft, Single SpeedTec Din Connector, No Holding Brake, Forced ventilation, Shaft Seal Standard (IP65)
More info →

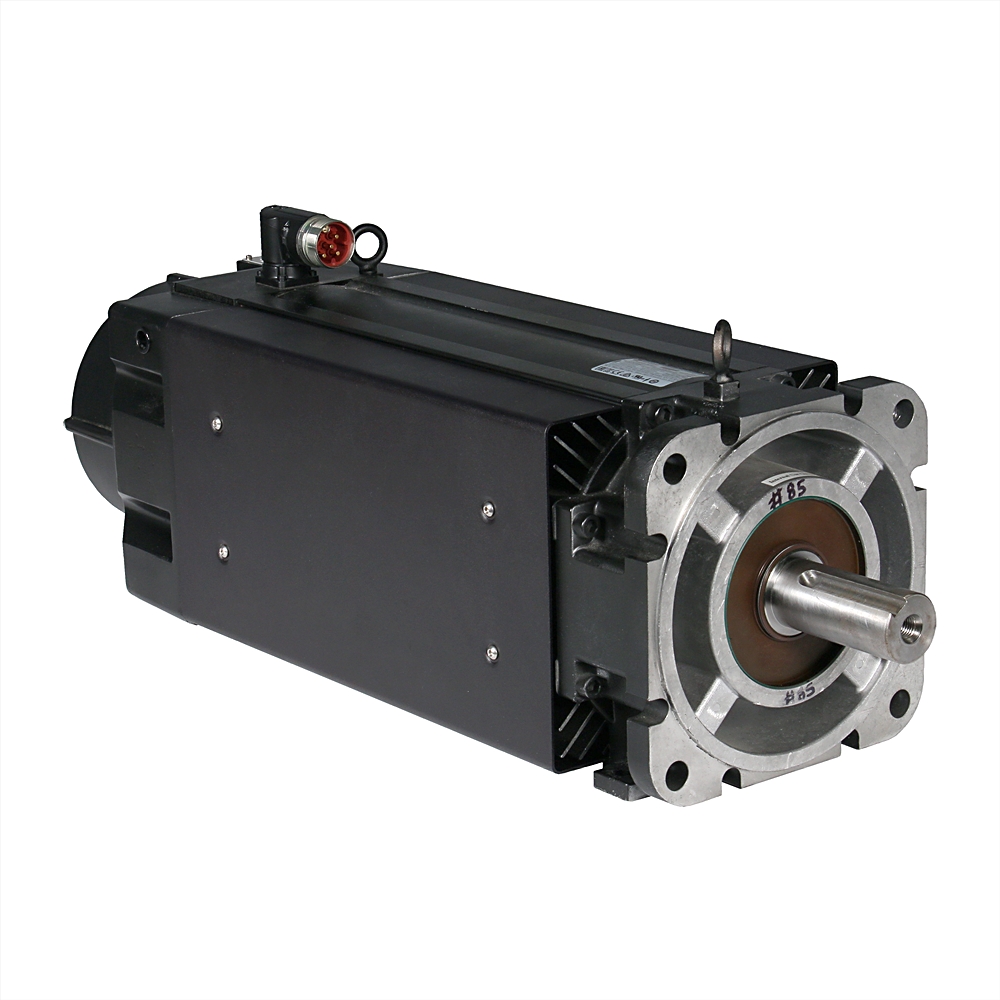

ROCKWELL AUTOMATION VPC-B3004A-YK72FS
Servo Motor, Continuous Duty, 400V AC, 300mm BCD Frame (132mm SH), 4 (Four) Magnet Stacks, 1500 RPM Rated Speed, Multi-turn Endat Encoder, Keyless Shaft, SpeedTec Right Angle DIN 180, No Holding Brake, Forced Ventilation, Shaft seal standard option
Cod. Articolo: VPC-B3004A-YK72FS
VPC Continuous Duty Servo Motor, 400V AC, 300mm Bolt Circle Frame Size, 4 (Four) Magnet Stacks, A Winding, 1500 RPM Rated Speed, 25 bit Multi-turn, 4096 revs, absolute encoder (EnDat 2.2), Keyless Shaft, Dual SpeedTec Right Angle DIN Connector, 180° rotatable, No Holding Brake, Forced ventilation, Shaft Seal Standard (IP65)
More info →
ROCKWELL AUTOMATION VPC-B3003A-QK14FS
Servo Motor, Continuous Duty, 400V AC, 300mm BCD Frame (132mm SH), 3 (Three) Magnet Stacks, 1500 RPM Rated Speed, Multi-turn DSL Encoder, K eyless Shaft, SpeedTec Right Angle DIN 325, 24V DC Holding Brake, Forced Ventilation, Shaft seal standard option
Cod. Articolo: VPC-B3003A-QK14FS
VPC Continuous Duty Servo Motor, 400V AC, 300mm Bolt Circle Frame Size, 3 (Three) Magnet Stacks, A Winding, 1500 RPM Rated Speed, 23 bit Single-turn, 12 bit Multi-turn, and 12 bit Secondary Channel SIL2 Pl(d) Safety Rated High Resolution Encoder, Keyless Shaft, Single SpeedTec Din Connector, 24V DC Holding Brake, Forced ventilation, Shaft Seal Standard (IP65)
More info →
