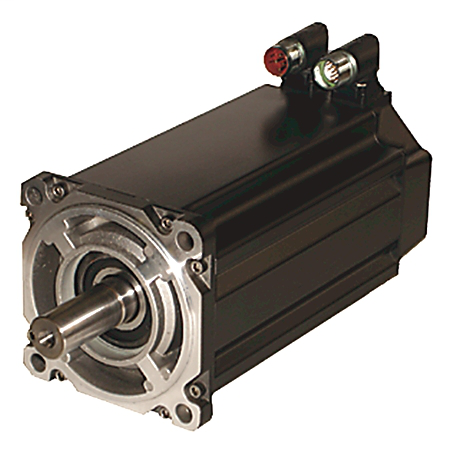

ROCKWELL AUTOMATION MPL-B580J-SK72AA
ROCKWELL AUTOMATION MPL-B580J-SK72AA
ROCKWELL AUTOMATION MPL-B580J-SK72AA
ROCKWELL AUTOMATIONNot available

Servo Motor, Rotary, Low Inertia, IEC, 480V AC, 1024 Sin/Cos, 3800 rpm Maximum, 34 N-M, 1/4 Turn Right Angle Rotatable DIN Connector, Hiperface Single-Turn Absolute Encoder Feedback, No Brake, 165 mm Bolt Circle Metric Flange Mounting, Keyless Shaft, Stan

Bulletin MPL - Low-Inertia Brushless Servo Motors Product, 460 V, Frame Size 5 = 165 mm (6.50 in.), Stack Length 80 = 203.2 mm (8.0 in.), 3750 RPM, Single-turn High-resolution Encoder. Keyless Shaft Extension, SpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect), No Brake, IEC Metric, Free Mounting Holes (Type FF)
Product Code: MPL-B580J-SK72AA
Partner cod.: MPL-B580J-SK72AA
ROCKWELL AUTOMATION


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Description
Download
Tecnichal data
PRODUCT SELECTIONProduct TypeBulletin MPL - Low-Inertia Brushless Servo Motors ProductVoltage460 VFrame Size5 = 165 mm (6.50 in.)Magnet Stack Length80 = 203.2 mm (8.0 in.)RPM3750 RPMFeedbackSingle-turn High-resolution EncoderEnclosureKeyless Shaft ExtensionConnectorsSpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect)Brake OptionNo Brake
Technical Specs
Specifications
Armature Voltage:460 V
Frame:5 = 165 mm (6.50 in.)
Speed Rating:3750 RPM
Product Selection
Product Type:Bulletin MPL - Low-Inertia Brushless Servo Motors Product
Voltage:460 V
Frame Size:5 = 165 mm (6.50 in.)
Magnet Stack Length:80 = 203.2 mm (8.0 in.)
RPM:3750 RPM
Feedback:Single-turn High-resolution Encoder
Enclosure:Keyless Shaft Extension
Connectors:SpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect)
Brake Option:No Brake
Description
Servo Motor, Rotary, Low Inertia, IEC, 480V AC, 1024 Sin/Cos, 3800 rpm Maximum, 34 N-M, 1/4 Turn Right Angle Rotatable DINConnector, Hiperface Single-Turn Absolute Encoder Feedback, No Brake, 165 mm Bolt Circle Metric Flange Mounting, Keyless Shaft, Standard
