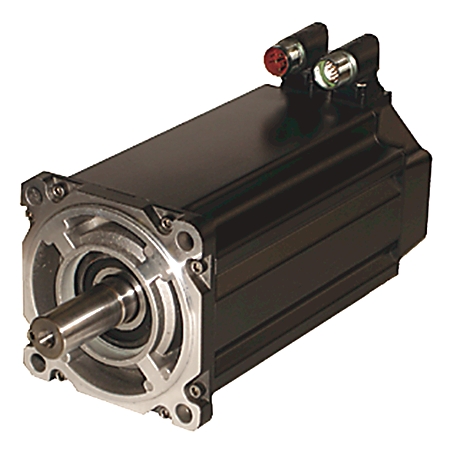

ROCKWELL AUTOMATION MPL-B4530K-MK72AA
ROCKWELL AUTOMATION MPL-B4530K-MK72AA
ROCKWELL AUTOMATIONNot available

Servo Motor, Rotary, Low Inertia, IEC, 480V AC, 1024 Sin/Cos, 4000 rpm Maximum, 8.25 N-M, 1/4 Turn Right Angle Rotatable DIN Connector, Hiperface Multi-Turn Absolute Encoder Feedback, No Brake, 130 mm Bolt Circle Metric Flange Mounting, Keyless Shaft, Sta

Bulletin MPL - Low-Inertia Brushless Servo Motors Product, 460 V, Frame Size 45 = 130 mm (5.12 in.), Stack Length 30 = 76.2 mm (3.0 in.), 4000 RPM, Multi-turn High-resolution Encoder (absolute feedback). Keyless Shaft Extension, SpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect), No Brake, IEC Metric, Free Mounting Holes (Type FF)
Product Code: MPL-B4530K-MK72AA
Partner cod.: MPL-B4530K-MK72AA
ROCKWELL AUTOMATION


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Description
Download
Tecnichal data
PRODUCT SELECTIONProduct TypeBulletin MPL - Low-Inertia Brushless Servo Motors ProductVoltage460 VFrame Size45 = 130 mm (5.12 in.)Magnet Stack Length30 = 76.2 mm (3.0 in.)RPM4000 RPMFeedbackMulti-turn High-resolution Encoder (absolute feedback)EnclosureKeyless Shaft ExtensionConnectorsSpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect)Brake OptionNo Brake
Technical Specs
Specifications
Armature Voltage:460 V
Frame:45 = 130 mm (5.12 in.)
Speed Rating:4000 RPM
Product Selection
Product Type:Bulletin MPL - Low-Inertia Brushless Servo Motors Product
Voltage:460 V
Frame Size:45 = 130 mm (5.12 in.)
Magnet Stack Length:30 = 76.2 mm (3.0 in.)
RPM:4000 RPM
Feedback:Multi-turn High-resolution Encoder (absolute feedback)
Enclosure:Keyless Shaft Extension
Connectors:SpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect)
Brake Option:No Brake
Description
Servo Motor, Rotary, Low Inertia, IEC, 480V AC, 1024 Sin/Cos, 4000 rpm Maximum, 8.25 N-M, 1/4 Turn Right Angle Rotatable DINConnector, Hiperface Multi-Turn Absolute Encoder Feedback, No Brake, 130 mm Bolt Circle Metric Flange Mounting, Keyless Shaft, Standard

Other products

Description other products

ROCKWELL AUTOMATION MPL-A310F-HK72AA
Servo Motor, Rotary, Low Inertia, IEC, 240V AC, 3000 rpm Maximum, 1.58 N-M, 1/4 Turn Right Angle Rotatable DIN Connector, 2000 Line/Revolution Incremental Encoder Feedback, No Brake, 100 mm Bolt Circle Metric Flange Mounting, Keyless Shaft, Standard
Cod. Articolo: MPL-A310F-HK72AA
Bulletin MPL - Low-Inertia Brushless Servo Motors Product, 230 V, Frame Size 3 = 100 mm (3.94 in.), Stack Length 10 = 25.4 mm (1.0 in.), 3000 RPM, 2000 Line Incremental Encoder. Keyless Shaft Extension, SpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect), No Brake, IEC Metric, Free Mounting Holes (Type FF)
More info →

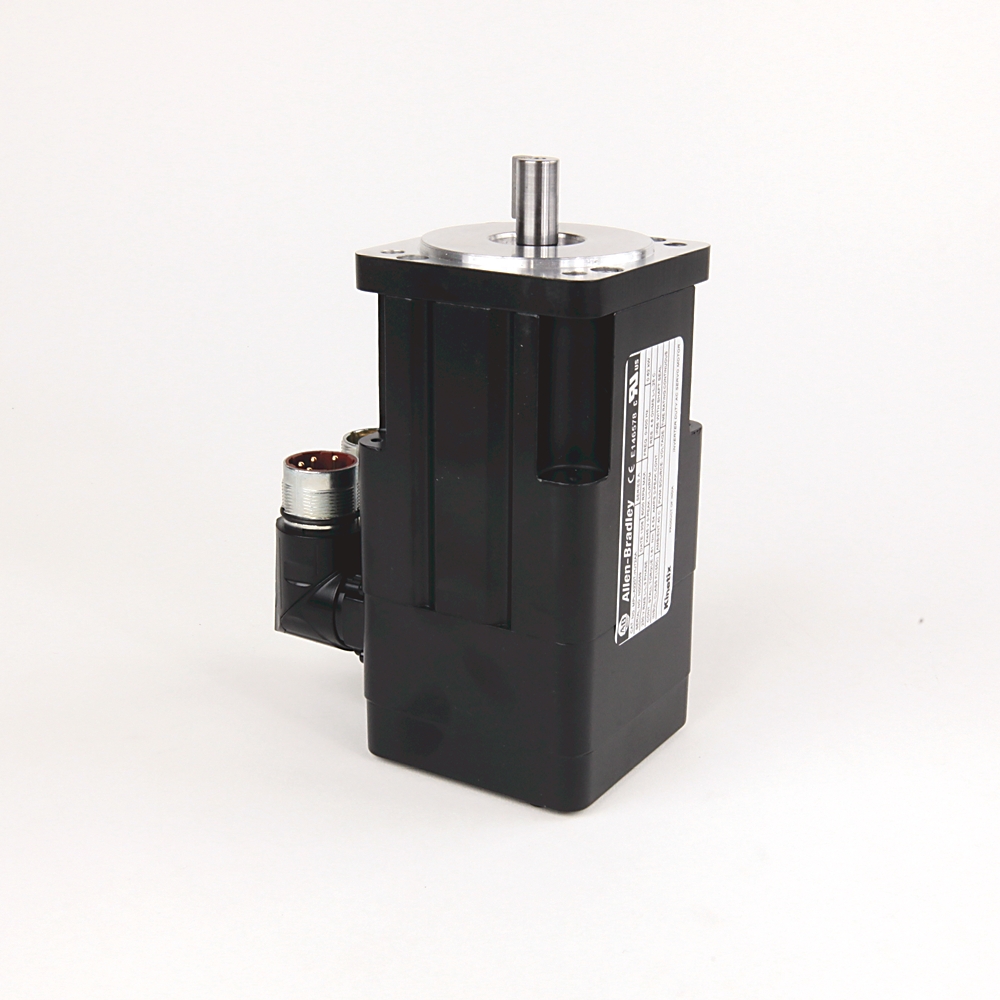

ROCKWELL AUTOMATION MPL-A220T-HJ74AA
Bulletin MPL - Low-Inertia Brushless Servo Motors Product, 230 V, Frame Size 2 = 75 mm (2.95 in.), Stack Length 20 = 50.8 mm (2.0 in.), 6000 RPM, 2000 Line Incremental Encoder. Keyed Shaft Extension, SpeedTEC DIN Connector, Right Angle, 180° Rotatable (Qu
Cod. Articolo: MPL-A220T-HJ74AA
Bulletin MPL - Low-Inertia Brushless Servo Motors Product, 230 V, Frame Size 2 = 75 mm (2.95 in.), Stack Length 20 = 50.8 mm (2.0 in.), 6000 RPM, 2000 Line Incremental Encoder. Keyed Shaft Extension, SpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect), 24V DC Brake, IEC Metric, Free Mounting Holes (Type FF)
More info →
ROCKWELL AUTOMATION MPL-B4540F-SJ72AA
Bulletin MPL - Low-Inertia Brushless Servo Motors Product, 460 V, Frame Size 45 = 130 mm (5.12 in.), Stack Length 40 = 101.6 mm(4.0 in.), 3000 RPM, Single-turn High-resolution Encoder. Keyed Shaft Extension, SpeedTEC DIN Connector, Right Angle, 18
Cod. Articolo: MPL-B4540F-SJ72AA
Bulletin MPL - Low-Inertia Brushless Servo Motors Product, 460 V, Frame Size 45 = 130 mm (5.12 in.), Stack Length 40 = 101.6 mm (4.0 in.), 3000 RPM, Single-turn High-resolution Encoder. Keyed Shaft Extension, SpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect), No Brake, IEC Metric, Free Mounting Holes (Type FF)
More info →
