ROCKWELL AUTOMATION MPL-B4530F-RK74AA
ROCKWELL AUTOMATIONNot available

Servo Motor, Rotary, Low Inertia, IEC, 480V AC, 2 Pole, 3000 rpm Maximum, 8.25 N-M, 1/4 Turn Right Angle Rotatable DIN Connector, Resolver Feedback, 24V DC Brake, 130 mm Bolt Circle Metric Flange Mounting, Keyless Shaft, Standard

Bulletin MPL - Low-Inertia Brushless Servo Motors Product, 460 V, Frame Size 45 = 130 mm (5.12 in.), Stack Length 30 = 76.2 mm (3.0 in.), 3000 RPM, Resolver. Keyless Shaft Extension, SpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect), 24V DC Brake, IEC Metric, Free Mounting Holes (Type FF)
Product Code: MPL-B4530F-RK74AA
Partner cod.: MPL-B4530F-RK74AA
ROCKWELL AUTOMATION


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Tecnichal data
PRODUCT SELECTIONProduct TypeBulletin MPL - Low-Inertia Brushless Servo Motors ProductVoltage460 VFrame Size45 = 130 mm (5.12 in.)Magnet Stack Length30 = 76.2 mm (3.0 in.)RPM3000 RPMFeedbackResolverEnclosureKeyless Shaft ExtensionConnectorsSpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect)Brake Option24 V DC Brake

Other products

Description other products

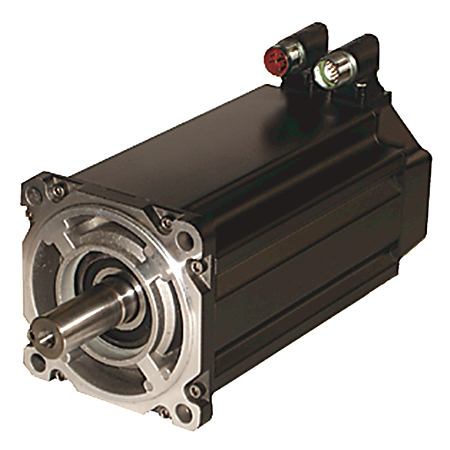

ROCKWELL AUTOMATION MPL-A4530F-MK72AA
Servo Motor, Rotary, Low Inertia, IEC, 240V AC, 1024 Sin/Cos, 3000 rpm Maximum, 8.25 N-M, 1/4 Turn Right Angle Rotatable DIN Connector, Hiperface Multi-Turn Absolute Encoder Feedback, No Brake, 130 mm Bolt Circle Metric Flange Mounting, Keyless Shaft, Sta
Cod. Articolo: MPL-A4530F-MK72AA
Bulletin MPL - Low-Inertia Brushless Servo Motors Product, 230 V, Frame Size 45 = 130 mm (5.12 in.), Stack Length 30 = 76.2 mm (3.0 in.), 3000 RPM, Multi-turn High-resolution Encoder (absolute feedback). Keyless Shaft Extension, SpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect), No Brake, IEC Metric, Free Mounting Holes (Type FF)
More info →
ROCKWELL AUTOMATION MPL-A310P-MK74AA
Servo Motor, Rotary, Low Inertia, IEC, 240V AC, 1024 Sin/Cos, 5000 rpm Maximum, 1.58 N-M, 1/4 Turn Right Angle Rotatable DIN Connector, Hiperface Multi-Turn Absolute Encoder Feedback, 24V DC Brake, 100 mm Bolt Circle Metric Flange Mounting, Keyless Shaft,
Cod. Articolo: MPL-A310P-MK74AA
Bulletin MPL - Low-Inertia Brushless Servo Motors Product, 230 V, Frame Size 3 = 100 mm (3.94 in.), Stack Length 10 = 25.4 mm (1.0 in.), 5000 RPM, Multi-turn High-resolution Encoder (absolute feedback). Keyless Shaft Extension, SpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect), 24V DC Brake, IEC Metric, Free Mounting Holes (Type FF)
More info →

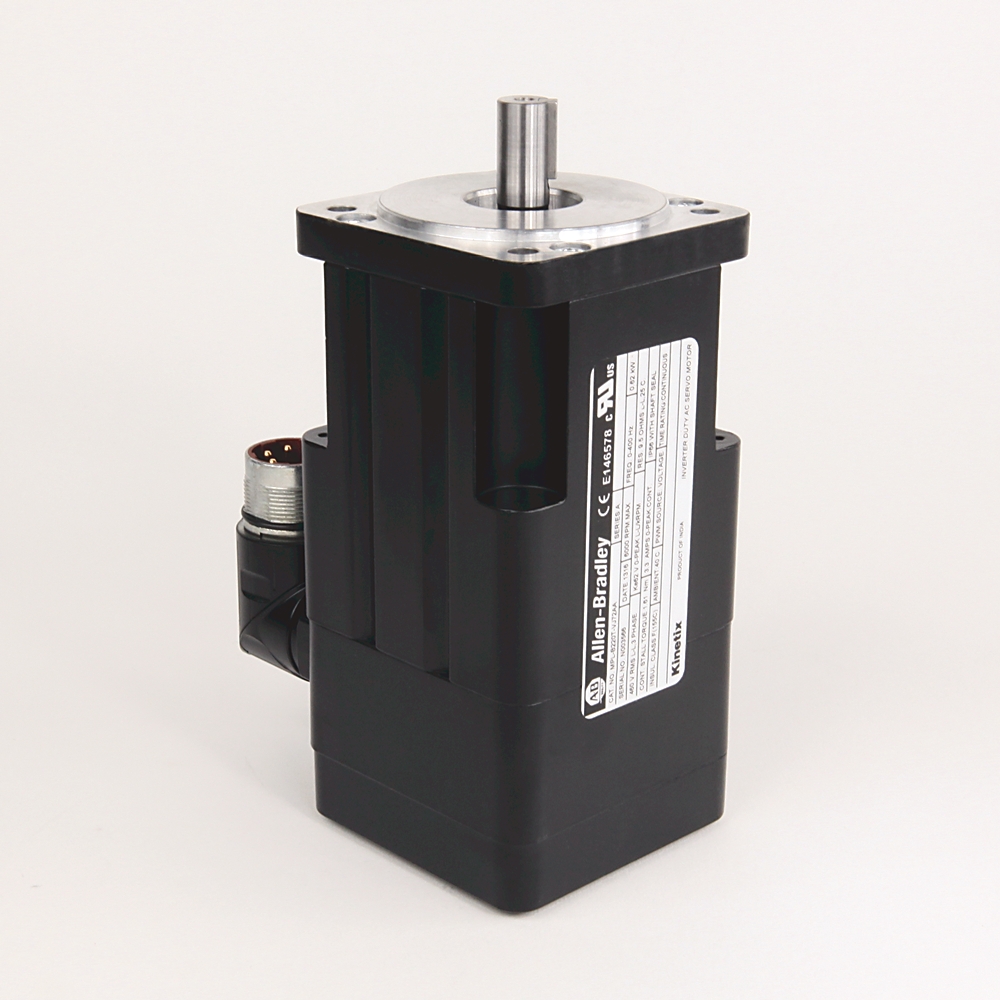

ROCKWELL AUTOMATION MPL-B220T-VJ72AA
Bulletin MPL - Low-Inertia Brushless Servo Motors Product, 460 V, Frame Size 2 = 75 mm (2.95 in.), Stack Length 20 = 50.8 mm (2.0in.), 6000 RPM, Multi-turn High-resolution Encoder (absolute feedback). Keyed Shaft Extension, SpeedTEC DIN Connector,
Cod. Articolo: MPL-B220T-VJ72AA
Bulletin MPL - Low-Inertia Brushless Servo Motors Product, 460 V, Frame Size 2 = 75 mm (2.95 in.), Stack Length 20 = 50.8 mm (2.0 in.), 6000 RPM, Multi-turn High-resolution Encoder (absolute feedback). Keyed Shaft Extension, SpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect), No Brake, IEC Metric, Free Mounting Holes (Type FF)
More info →
